Nexys Video Artix-7 FPGA: Xilinx Trainer Board for Multimedia Applications

The Nexys Video is a powerful platform for audio/video applications. Built around the Artix®-7 XC7A200T, the most powerful chip from the Xilinx® Artix-7 FPGA family, the Nexys Video has all the performance and FPGA real estate needed for high-bandwidth and low-latency A/V processing.

Utilizing A/V signals is made easy with an on-board Mini DisplayPort, three high-speed digital video ports, and a 24-bit audio codec. One can conveniently scale their design with Ethernet, UART, and USB interfaces and integrate it into larger systems. There is no limit to customizability with the 160-pin FMC LPC connector and four additional Pmod ports.

The Nexys Video is supported by Xilinx's Vivado Design Suite, including the free WebPACK edition, making the Nexys Video a great option for any budget.

Guides and demos are available to help users get started quickly with the Nexys Video. These can be found through the Support Materials tab.

• FPGA Features
  • Xilinx Artix®-7 XC7A200T-1SBG484C
  • 33,650 logic slices, each with four 6-input LUTs and 8 flip-flops
  • 13 Mbits of fast block RAM (3x more than the Nexys 4 DDR)
  • 10 clock management tiles, each with phase-locked loop (PLL)
  • 740 DSP slices
  • Internal clock speeds exceeding 450MHz
  • On-chip analog-to-digital converter (XADC)
  • Up to 3.75Gbps GTP transceivers

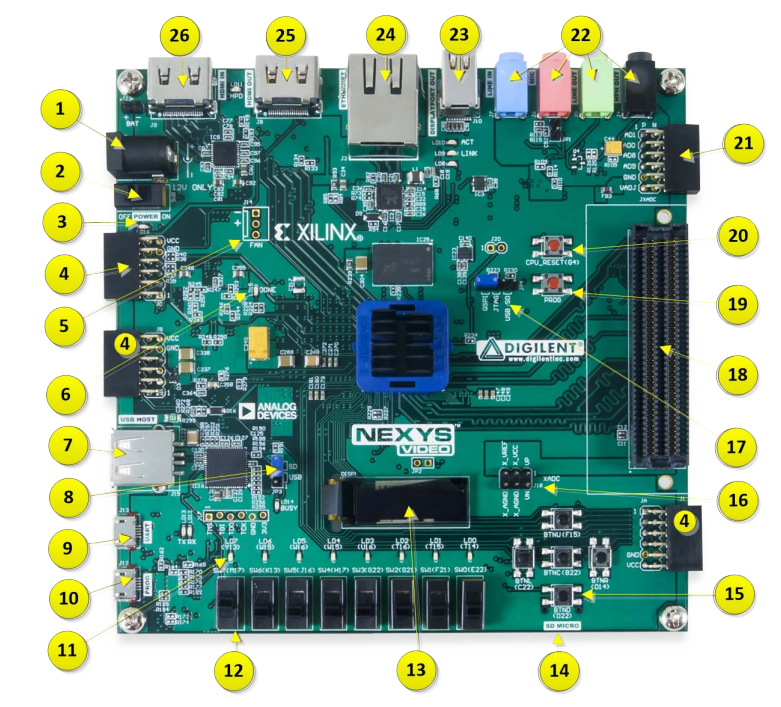

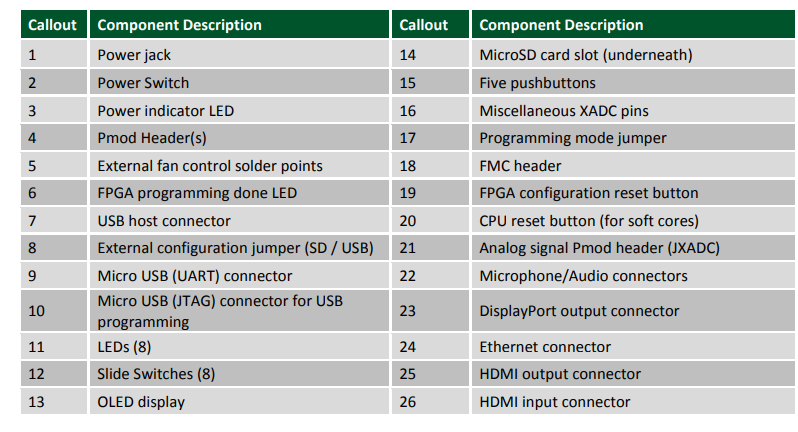

• Board Features
  • Programmable over JTAG, Quad-SPI Flash, microSD, and USB flash drive
  • 512MB 400MHz (800MT/s) DDR3
  • 32MB Quad-SPI flash
  • microSD card slot for nonvolatile storage (card not included)
  • Dedicated onboard USB port for JTAG programming and data transfers
  • Powered from any 12V source (36W wall supply included)
  • HDMI sink and HDMI source
  • Mini DisplayPort source
  • 24-bit Audio codec w/ four 3.5mm jacks
  • 10/100/1000 Ethernet PHY with included unique MAC address
  • User EEPROM
  • USB-UART bridge
  • Digilent parallel transfer interface (DTPI) for high-speed data transfers over USB
  • Digilent serial peripheral interface (DSPI) for medium-speed data transfers over USB
  • Onboard user interfaces: 128x32 monochrome OLED display, 5 user push buttons, 8 user switches, 8 user LEDs
  • USB HID host for mice and keyboards
  • Fully-populated 160-pin FMC LPC connector
  • Four Pmod ports, Pmod for XADC signals
