Arty A7-100T: Artix-7 FPGA Development Board, XILINX Core

The Arty family of Digilent FPGA/SoC boards was designed with versatility and flexibility in mind. With universally popular Arduino™ headers and multiple Pmod™ ports, an Arty will be the most adaptable FPGA/SoC board in your toolbox.

The Arty A7 is a ready-to-use development platform designed around the Xilinx Artix-7 FPGA family. With the Artix-7 devices, the Arty A7 board provides the highest performance-per-watt fabric, transceiver line rates, DSP processing, and AMS integration in the Arty family. With the MicroBlaze Soft Processor Core from Xilinx, you can create embedded applications with a variety of peripherals, memory, and interfaces.

The Arty A7 is supported by Xilinx's Vivado Design Suite, including the free WebPACK version. You can also leverage the Vitis Core Development Kit or Xilinx Software Development Kit to start developing for the MicroBlaze processor with no prior FPGA experience.

There are two variants of the Arty A7: The Arty A7-35T features the XC7A35TICSG324-1L, and the Arty A7-100T features the larger XC7A100TCSG324-1.

Please note: The Arty A7-35T variant is no longer in production and is now retired.

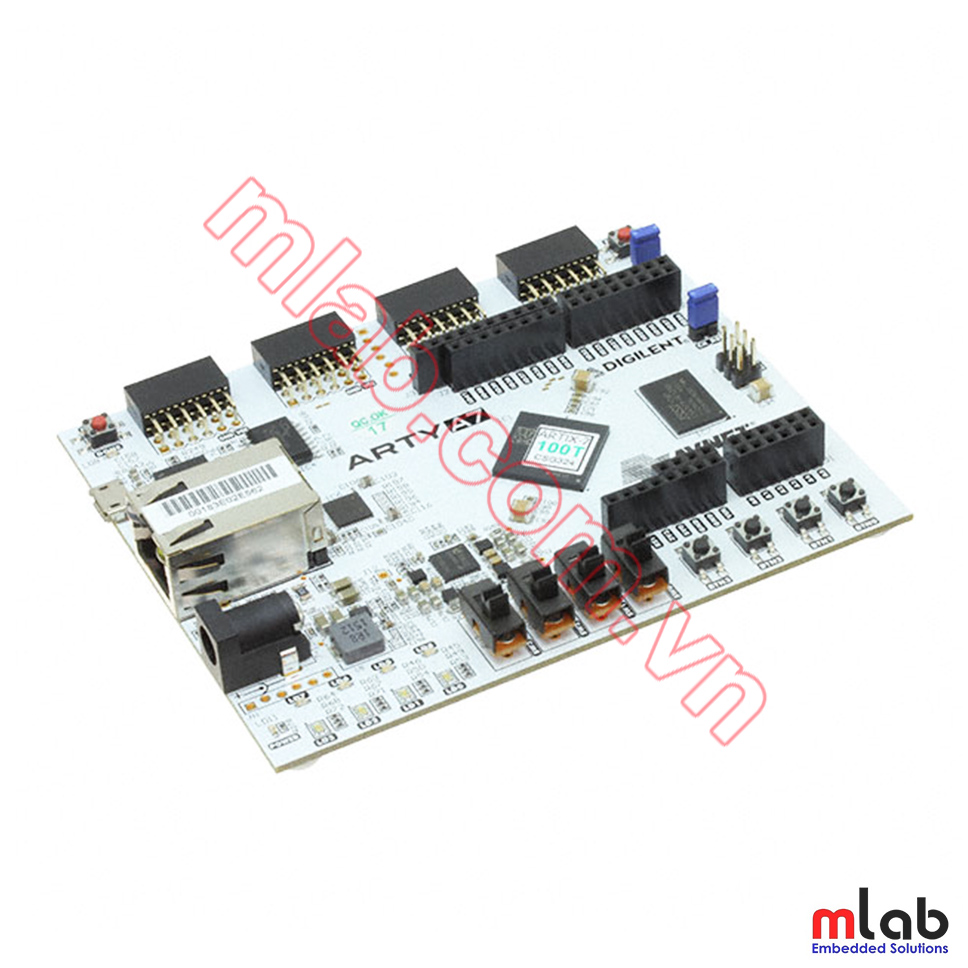

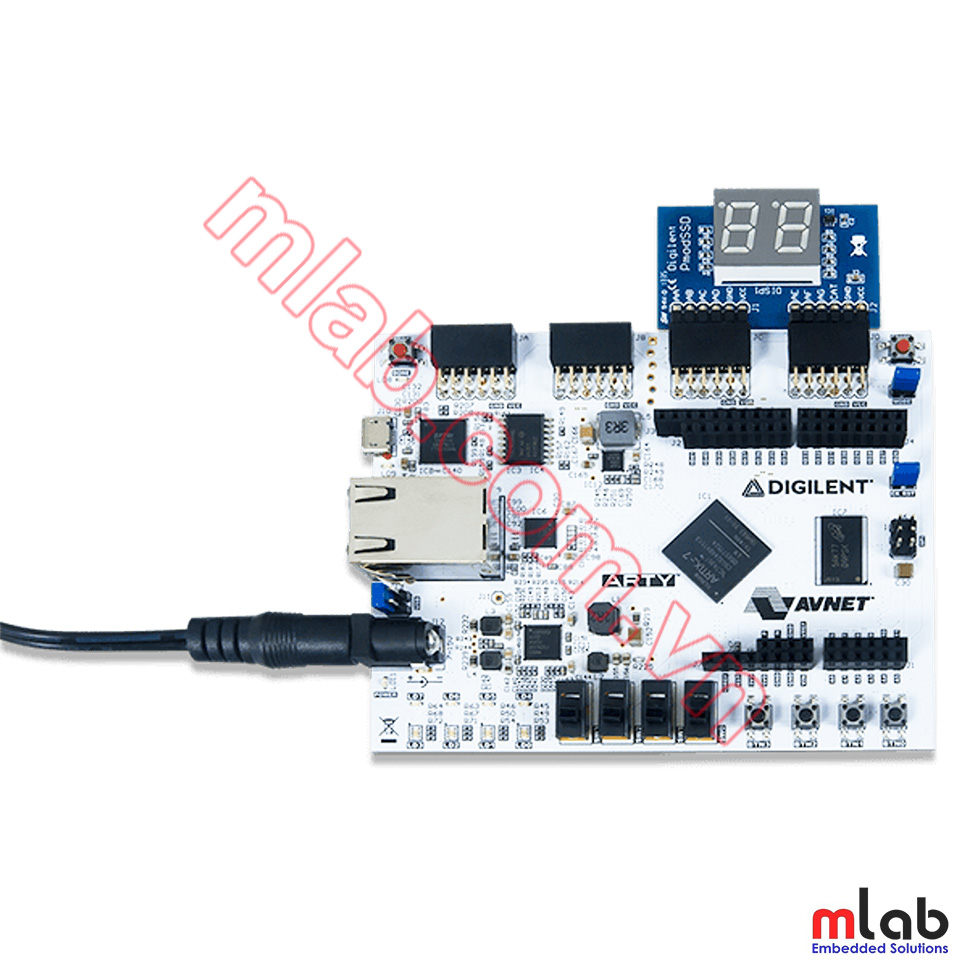

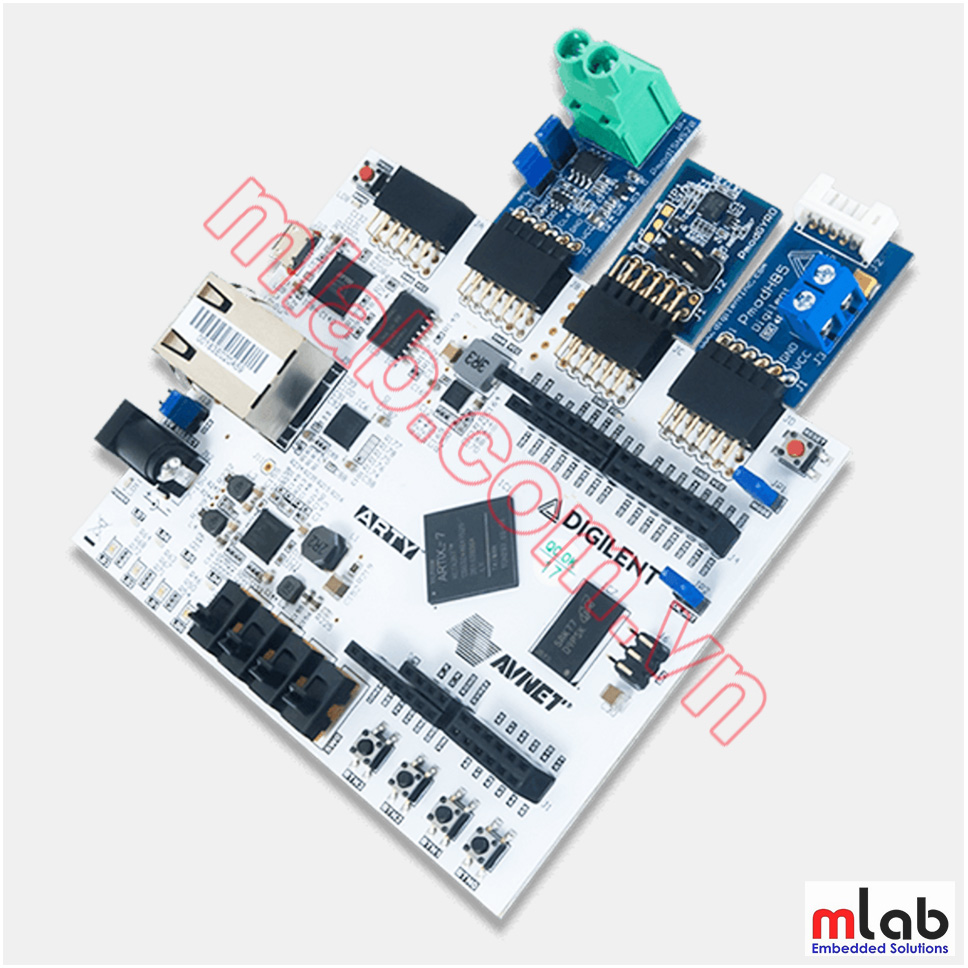

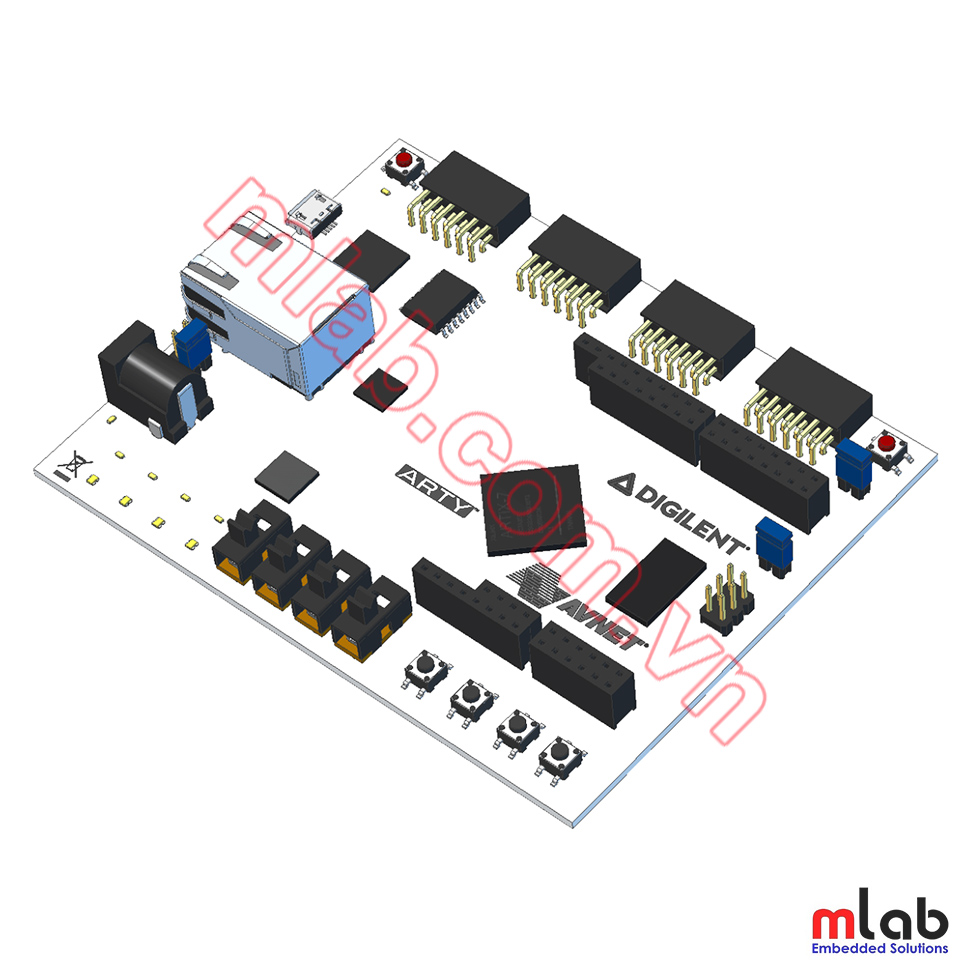

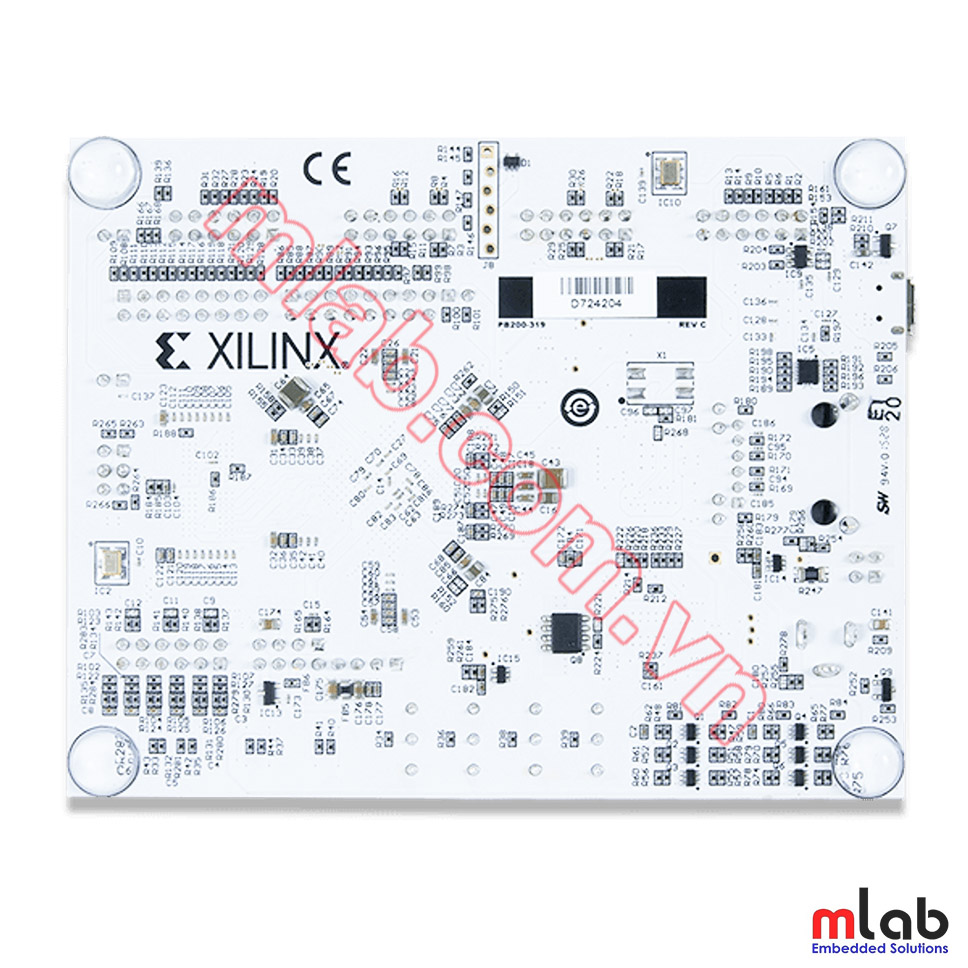

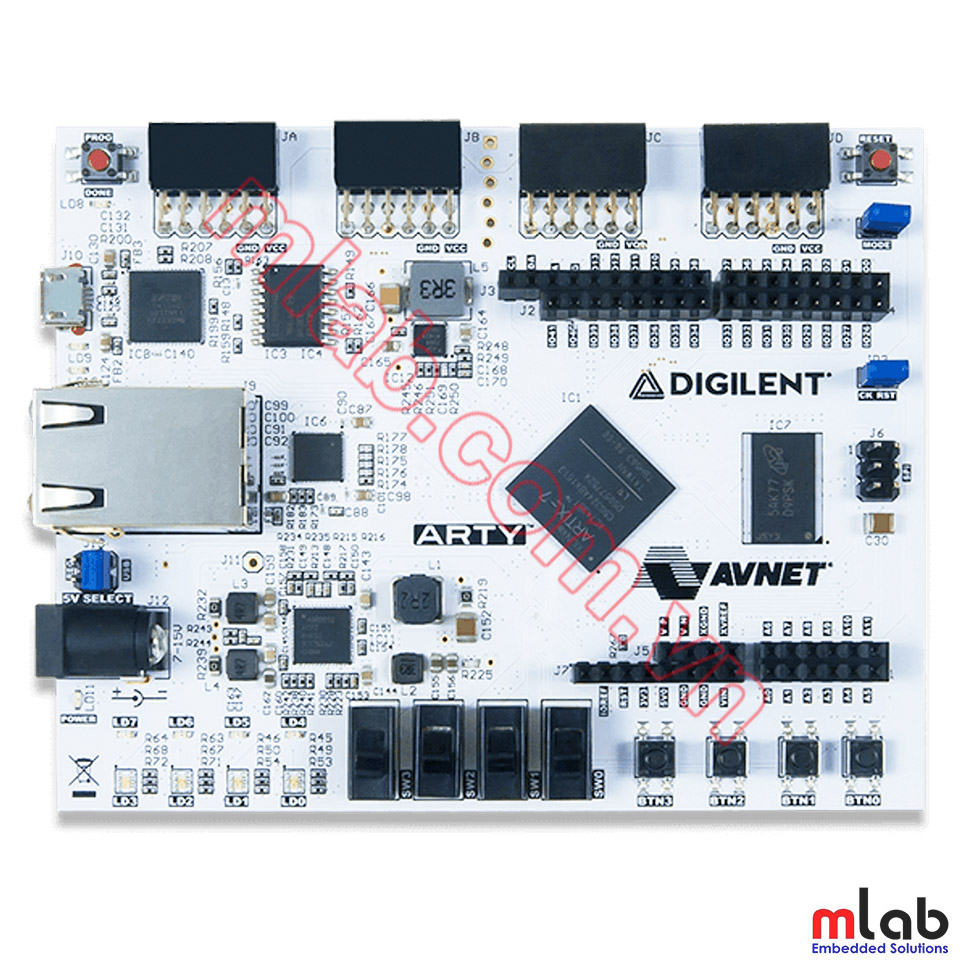

Một số hình ảnh kết nối của Arty A7-100T

Features

+ FPGA Features
    - Internal clock speeds exceeding 450MHz
    - On-chip analog-to-digital converter (XADC)
    - Programmable over JTAG and Quad-SPI Flash
+ System Features
    - 256MB DDR3L with a 16-bit bus @ 333 MHz (667 MT/s)
    - 16MB Quad-SPI Flash
        Due to supply chain constraints, either the S25FL127S or S25FL128S Flash Memory may be loaded on your board. These parts are not functionally equivalent, but flash programming through Vivado and the QSPI boot mode are not affected. More information can be found in the Arty A7 Reference Manual, available in the Support tab.
    - USB-JTAG Programming circuitry (Micro B USB cable required)
    - Powered from USB or any 7V-15V source
+ System Connectivity
    - 10/100 Mbps Ethernet
    - USB-UART Bridge
+ Interaction and Sensory Devices
    - 4 Switches
    - 4 Buttons
    - 1 Reset Button
    - 4 LEDs
    - 4 RGB LEDs
+ Expansion Connectors
    - 4 Pmod connectors
    - Arduino/chipKIT Shield connector
+ Product Compliance:
    - HTC: 8471500150
    - ECCN: EAR99

TÀI LIỆU THAM KHẢO

+ Arty A7-100T Reference Manual (LINK)

+ MLAB: quý khách vui lòng liên hệ sđt(zalo): 086.262.8846 để được tư vấn, hỗ trợ trực tiếp
