The Virtex™ 7 FPGA VC707 Evaluation Kit is a full-featured, highly-flexible, high-speed serial base platform using the Virtex 7 XC7VX485T-2FFG1761C and includes basic components of hardware, design tools, IP etc.
Product Description
The Virtex™ 7 FPGA VC707 Evaluation Kit is a full-featured, highly-flexible, high-speed serial base platform using the Virtex 7 XC7VX485T-2FFG1761C and includes basic components of hardware, design tools, IP, and pre-verified reference designs for system designs that demand high-performance, serial connectivity and advanced memory interfacing. The included pre-verified reference designs and industry-standard FPGA Mezzanine Connectors (FMC) allow scaling and customization with daughter cards.
Key Features & Benefits
40Gb/s Connectivity platform for high-bandwidth and high-performance applications using Virtex 7 VX485T FPGAs
Hardware, design tools, IP, and pre-verified reference designs
Supports embedded processing with MicroBlaze, soft 32bit RISC
Enabling serial connectivity with PCIe Gen2x8, SFP+ and SMA Pairs, UART, IIC
Advanced memory interface with 1GB DDR3 SODIM Memory up to 800MHz / 1600Mbps
Develop networking applications with 10-100-1000 Mbps Ethernet (GMII, RGMII and SGMII)
Expand I/O with the FPGA Mezzanine Card (FMC) interface

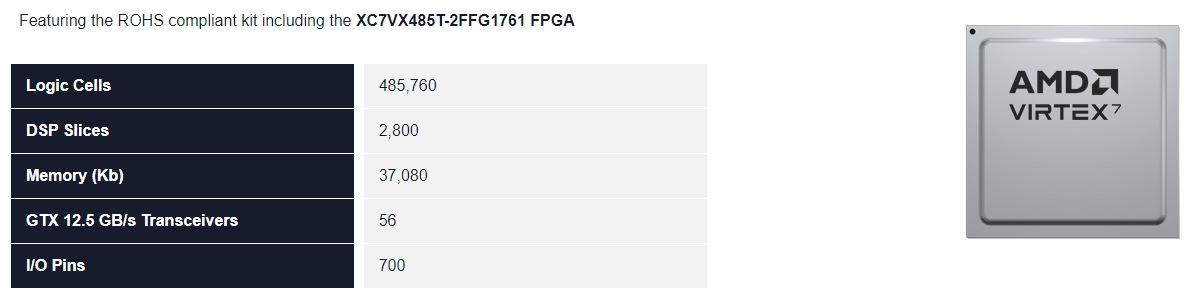

Featured AMD Devices
PRODUCT INFORMATION
Board Features
Featuring the VC707 Evaluation Board
Clocking
Fixed Oscillator with differential 200MHz output used as the “system” clock for the FPGA
Programmable Oscillator with 156.250 MHz as the default output and frequency targeted for Ethernet applications but oscillator is programmable for many end uses
Differential SMA clock input
Differential SMA GTX reference clock input
Jitter attenuated clock used to support CPRI/OBSAI applications that perform clock recovery from a user-supplied SFP/SFP+ module
Configuration
Onboard JTAG configuration circuitry to enable configuration over USB
JTAG header provided for use with AMD download cables such as the Platform Cable USB II
128MB (1024Mb) Linear BPI Flash for PCIe® Configuration
16MB (128Mb) Quad SPI Flash
Expansion Connectors
FMC1 – HPC (8 XCVR, 160 single ended or 80 differential (34 LA pairs, 24 HA pairs, 22 HB pairs) user-defined pins)
FMC2 – HPC (8 XCVR, 116 single ended or 58 differential (34 LA pairs, 24 HA pairs) user-defined pins)
Vadj supports 1.8V
IIC
Communication & Networking
Gigabit Ethernet GMII, RGMII and SGMII
SFP+ transceiver connector
GTX port (TX, RX) with four SMA connectors
UART To USB Bridge
PCI Express x8 gen2 Edge Connector (lay out for Gen3)
Memory
1GB DDR3 SODIMM 800MHz / 1600Mbps
128MB (1024Mb) Linear BPI Flash for PCIe Configuration
SD Card Slot
8Kb IIC EEPROM
Control & I/O
5X Push Buttons
8X DIP Switches
Rotary Encoder Switch (3 I/O)
AMS FAN Header (2 I/O)
Debug & Analog Input
8 GPIO Header, 9 pin removable LCD
Analog Mixed Signal (AMS) Port
Power
12V wall adapter or ATX
Voltage and Current measurement capability
Display
HDMI Video OUT
2 x16 LCD display
8X LEDs
