DVK600 Mạch mở rộng cho FGPA/CPLD

Overview

DVK600 is an FPGA CPLD mother board that features expansion connectors for connecting FPGA CPLD core board and accessory boards. DVK600 provides an easy way to set up FPGA CPLD development system.

What's On Board

1. 1. FPGA CPLD core board connector: for easily connecting core boards which integrate an FPGA CPLD chip onboard
   2. 8I/Os_1 interface, for connecting accessory boards/modules
   3. 8I/Os_2 interface, for connecting accessory boards/modules
   4. 16I/Os_1 interface, for connecting accessory boards/modules
   5. 16I/Os_2 interface, for connecting accessory boards/modules
   6. 32I/Os_1 interface, for connecting accessory boards/modules
   7. 32I/Os_2 interface, for connecting accessory boards/modules
   8. 32I/Os_3 interface, for connecting accessory boards/modules

1. 9. SDRAM interface
      • for connecting SDRAM accessory board
      • also works as FPGA CPLD pins expansion connectors
   10. LCD interface, for connecting LCD22, LCD12864, LCD1602
   11. ONE-WIRE interface: easily connects to ONE-WIRE devices (TO-92 package), such as temperature sensor (DS18B20), electronic registration number (DS2401), etc.
   12. 5V DC jack
   13. Joystick: five positions
   14. Buzzer
   15. Potentiometer: for LCD22 backlight adjustment, or LCD12864, LCD1602 contrast adjustment
   16. Power switch
   17. Buzzer jumper
   18. ONE-WIRE jumper
   19. Joystick jumper

The DVK600 supports a wide range of different core boards, therefore, some of the interfaces may be Not-Connected and useless while connecting to certain core board. For instance, while connecting to Core3S500E/CoreEP2C8, the '⑧ 32I/Os_3' is Not-Connected.

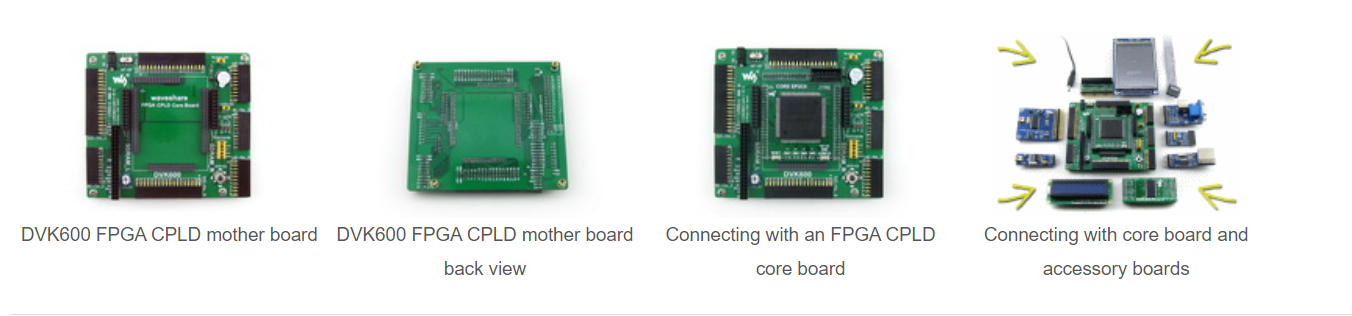

Photos

Note: core board and accessory boards in the photos are NOT included in the price.

Downloads

MLAB: quý khách hàng liên hệ sđt(zalo): 086.262.8846 để được tư vấn, hỗ trợ trực tiếp
Wiki: www.waveshare.com/wiki/DVK600
