Basys 3 Artix-7 FPGA Trainer Board: XILINX core, Recommended for Introductory Users

The Basys 3 is one of the best boards on the market for getting started with FPGA. It is an entry-level development board built around a Xilinx Artix-7 FPGA.

As a complete and ready-to use digital circuit development platform, it includes enough switches, LEDs, and other I/O devices to allow a large number of designs to be completed without the need for any additional hardware. There are also enough uncommitted FPGA I/O pins to allow designs to be expanded using Digilent Pmods or other custom boards and circuits, and all of this at a student-friendly price point.

The Basys 3 is designed exclusively for Xilinx’s Vivado Design Suite, and the WebPACK edition is available as a free download from Xilinx.

Guides and demos are available to help users get started quickly with the Basys 3. These can be found through the Support Materials tab.

Features

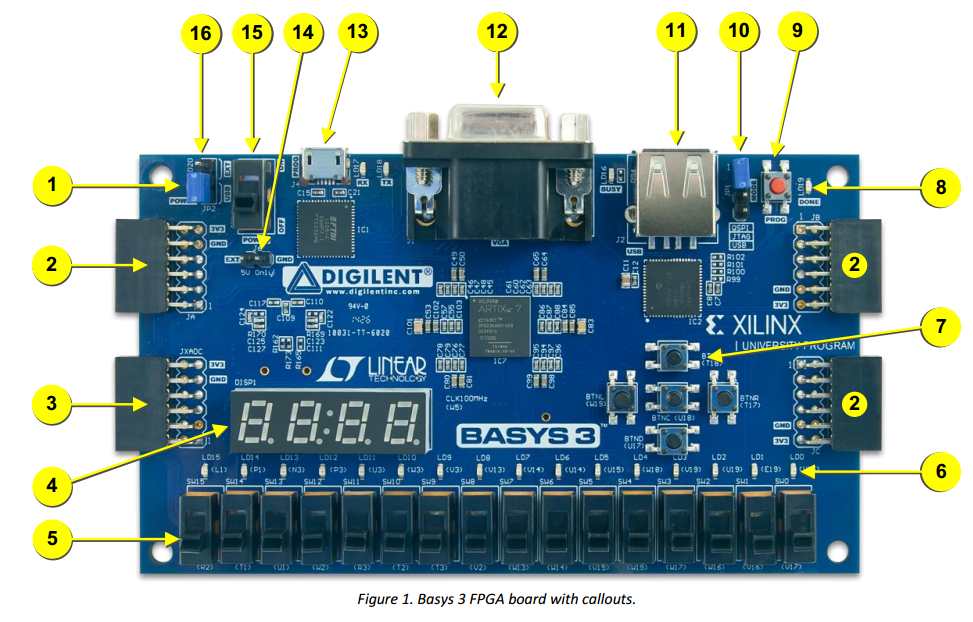

• • Features the Xilinx Artix-7 FPGA: XC7A35T-1CPG236C
  • 33,280 logic cells in 5200 slices (each slice contains four 6-input LUTs and 8 flip-flops)

  • 1,800 Kbits of fast block RAM

  • Five clock management tiles, each with a phase-locked loop (PLL)

  • 90 DSP slices

  • Internal clock speeds exceeding 450 MHz

  • On-chip analog-to-digital converter (XADC)

  • Digilent USB-JTAG port for FPGA programming and communication
  • Serial Flash
  • USB-UART Bridge

  • 12-bit VGA output

  • USB HID Host for mice, keyboards and memory sticks
  • 16 user switches

  • 16 user LEDs

  • 5 user pushbuttons

  • 4-digit 7-segment display
  • 4 Pmod ports: 3 Standard 12-pin Pmod ports, 1 dual purpose XADC signal / standard Pmod port
  • Micro-B USB cable not included, but can be added for free with your Basys 3!

TÀI LIỆU THAM KHẢO

+ Basys 3 Reference Manual (LINK)

+ MLAB: quý khách vui lòng liên hệ sđt(zalo): 086.262.8846 để được tư vấn, hỗ trợ trực tiếp
