DVK601 Mạch mở rộng cho FPGA/CPLD

Overview

DVK601 is an FPGA CPLD mother board that features expansion connectors for connecting FPGA CPLD core board and accessory boards. DVK601 provides an easy way to set up FPGA CPLD development system.

What's On Board

1. FPGA CPLD core board connector: for easily connecting core boards which integrate an FPGA CPLD chip onboard
2. 8I/Os_1 interface, for connecting accessory boards/modules
3. 8I/Os_2 interface, for connecting accessory boards/modules
4. 8I/Os_3 interface, for connecting accessory boards/modules
5. 8I/Os_4 interface, for connecting accessory boards/modules
6. 16I/Os_1 interface, for connecting accessory boards/modules
7. 16I/Os_2 interface, for connecting accessory boards/modules
8. 32I/Os_1 interface, for connecting accessory boards/modules
9. 32I/Os_2 interface, for connecting accessory boards/modules

10. FPGA expansion connectors
    • FPGA pins are accessible on expansion connectors
    • for connecting SDRAM accessory board
11. LCD interface, for connecting LCD22, LCD12864, LCD1602
12. ONE-WIRE interface: easily connects to ONE-WIRE devices (TO-92 package), such as temperature sensor (DS18B20), electronic registration number (DS2401), etc.
13. Buzzer
14. Joystick: five positions
15. Potentiometer: for LCD22 backlight adjustment, or LCD12864, LCD1602 contrast adjustment
16. Buzzer jumper
17. Joystick jumper
18. ONE-WIRE jumper

The DVK601 supports a wide range of different core boards, therefore, some of the interfaces may be Not-Connected and useless while connecting to certain core board. For instance, while connecting to Core3S250E, the '④ 8I/Os_3' and '⑤ 8I/Os_4' are Not-Connected.

Photos

DVK601 FPGA CPLD mother board

DVK601 FPGA CPLD mother board back view

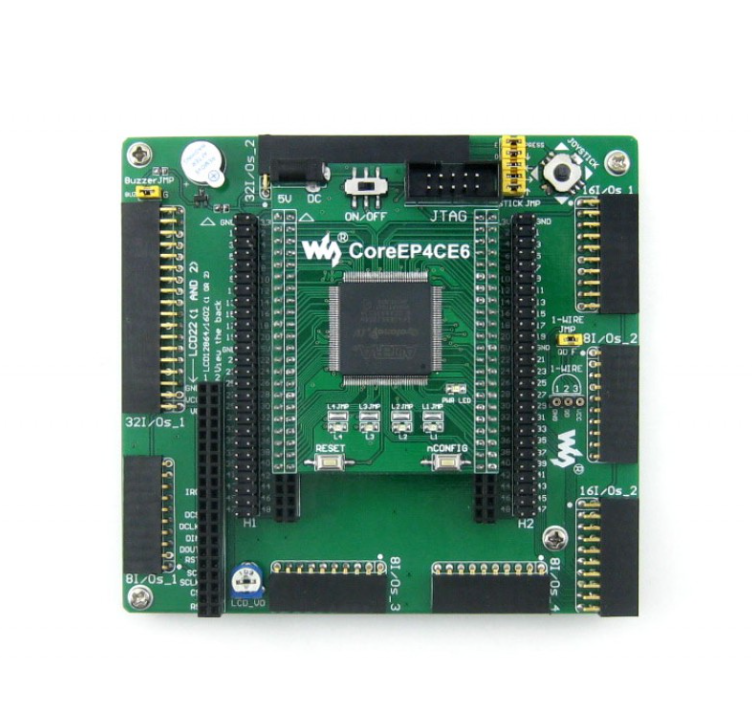

Connecting with an FPGA CPLD core board

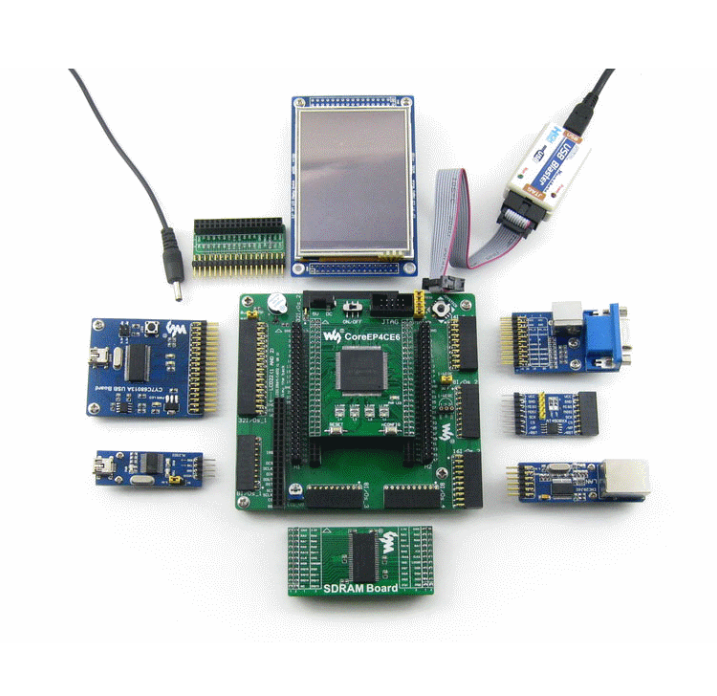

Connecting with core board and accessory boards

Note: core board and accessory boards in the photos are NOT included in the price.

Downloads

Development resources:schematic, etc.
Wiki: www.waveshare.com/wiki/DVK601
