Giá chưa bao gồm thuế giá trị gia tăng (VAT)

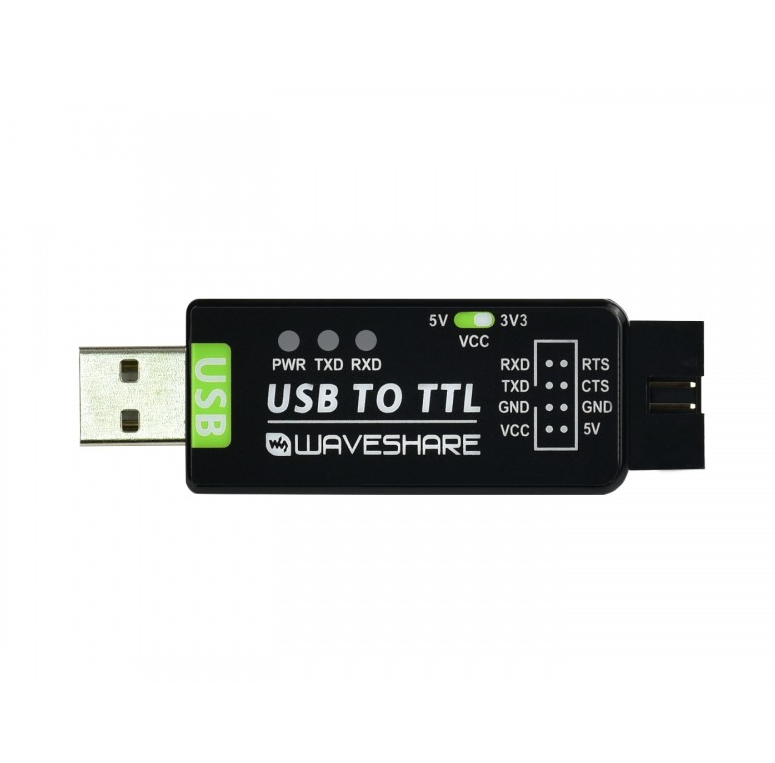

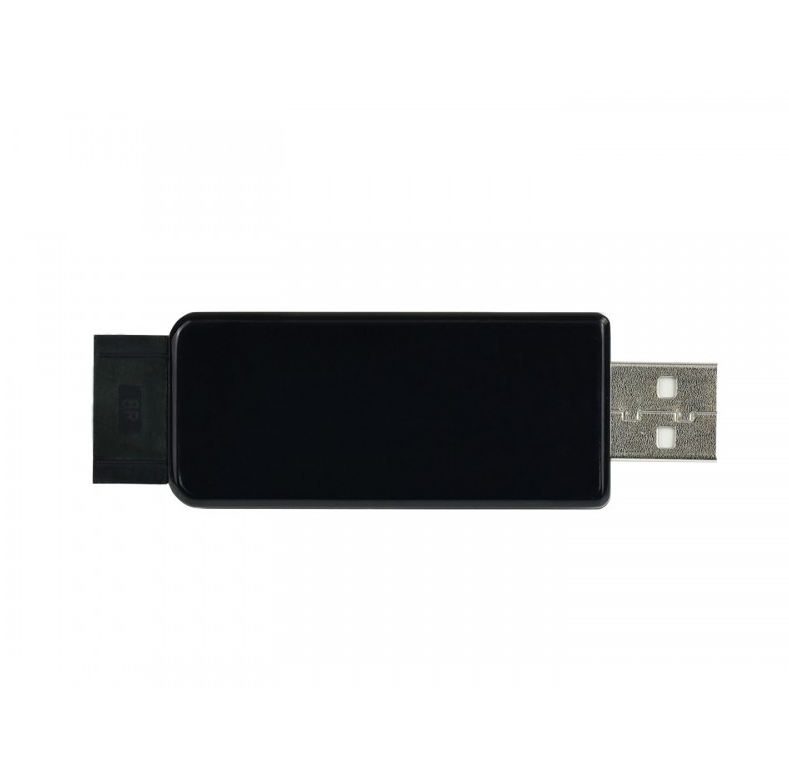

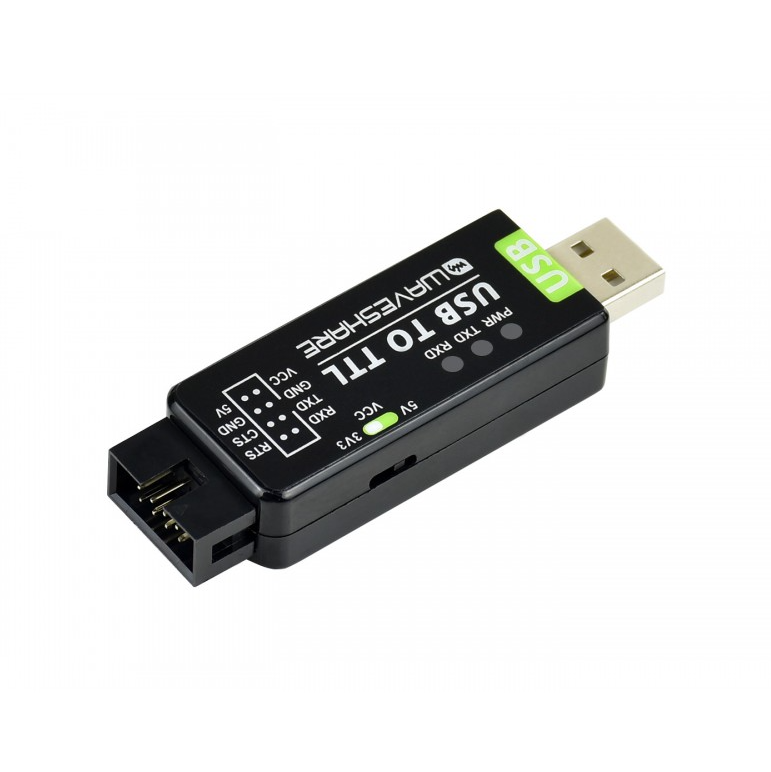

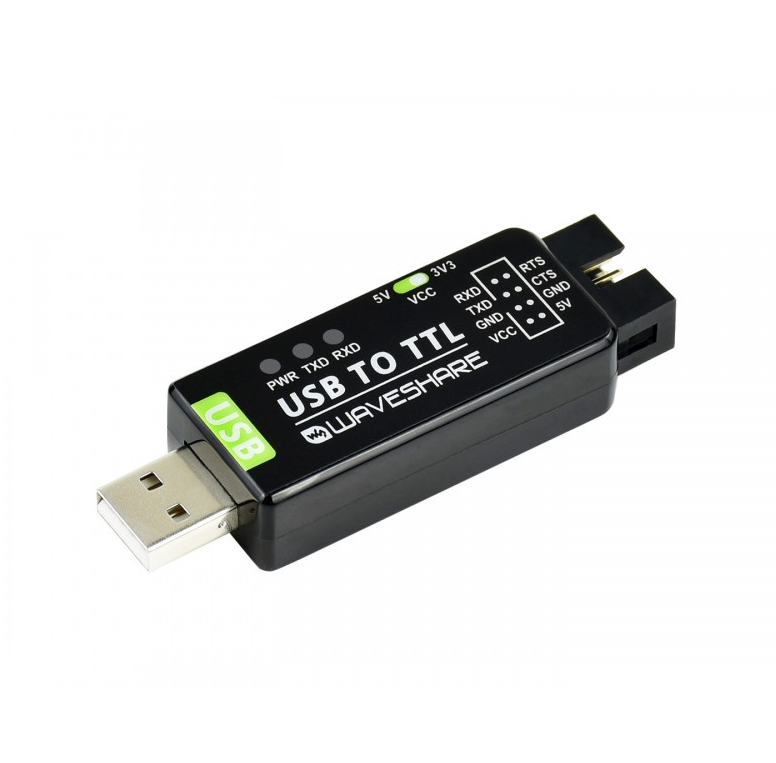

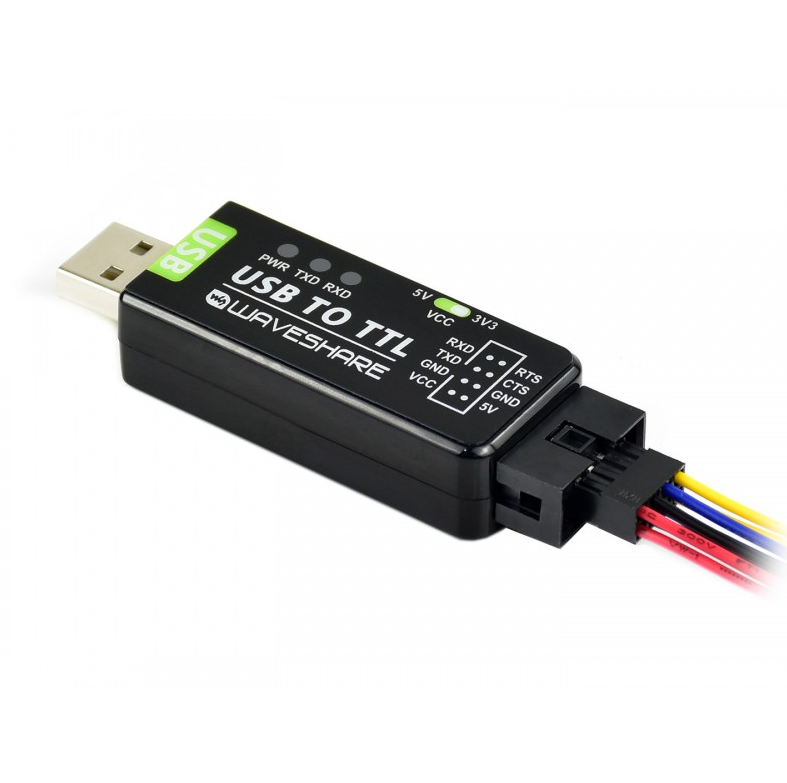

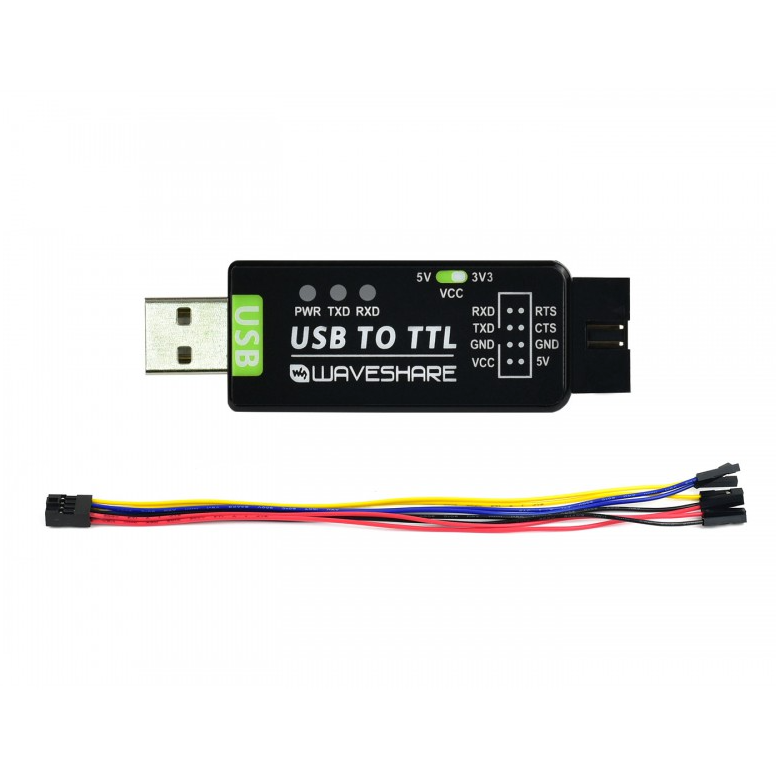

Industrial USB TO TTL converter.
Sản phẩm nhập khẩu chính hãng từ Waveshare
Hỗ trợ kỹ thuật trong quá trình sử dụng
Xuất hóa đơn VAT cho cá nhân, đơn vị có nhu cầu
Sản phẩm được bảo hành 06 tháng
Original FT232RNL | Stable Transmission | Multi Devices | Multi Systems
| Product category | Industrial USB TO TTL converter | Host port | USB |
|---|---|---|---|
| Data rate | 300bps ~ 3Mbps | Device Port | UART |
| USB port | Connector: USB-A Protection: resettable fuse, ESD protection | ||
| UART port | Connector: 8PIN fool-proof header Protection: IO protection diode | ||
| Indicator | PWR: power indicator, turns red when USB voltage is detected TXD: TX indicator, turns red while the USB port is sending data RXD: RX indicator, turns red while the device port is receiving data | ||
Adopts original FT232RNL converter, providing better stability and compatibility, enabling industrial grade high performance communication between computer and TTL devices
Compatible with popular systems like Win7/8/8.1/10/11, Mac, Linux, Android, WinCE...
Easily checking the operating status, convenient for programming / debugging
| 5V | 5V output |
|---|---|
| VCC | 3.3V or 5V output, configured by switch |
| GND | Ground |
| TXD | Connecting to MCU.RX (signal direction: MCU.RX << FT232 << PC.TX) |
| RXD | Connecting to MCU.TX (signal direction: MCU.TX >> FT232 >> PC.RX) |
| RTS | Connecting to MCU.CTS (signal direction: MCU.CTS << FT232 << PC.RTS) |
| CTS | Connecting to MCU.RTS (signal direction: MCU.RTS >> FT232 >> PC.CTS) |
+ USB cable is not included
+ This converter is designed to work on TTL level, NEVER connect it to RS232 level to avoid damage
* measured manually, for reference only
