FT232 USB UART Board (Type C), USB To UART (TTL) Communication Module, USB-C Connector

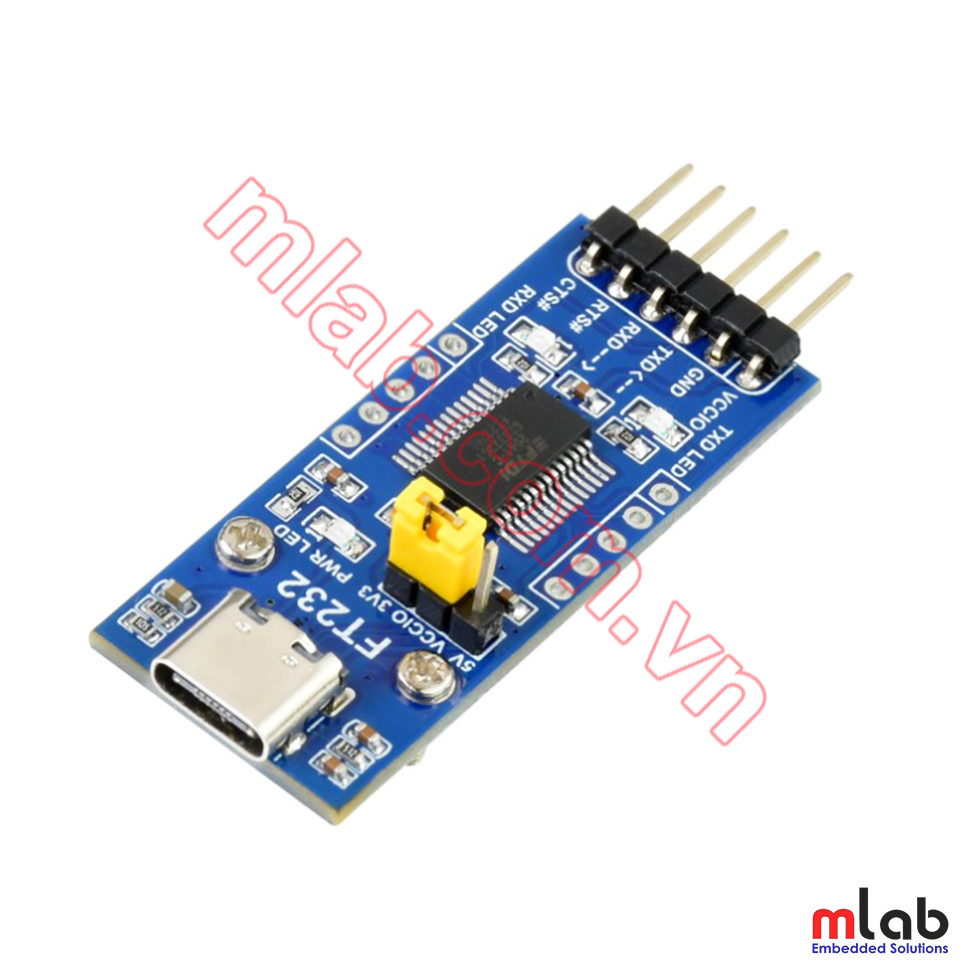

FT232 USB-C To UART Module
adopts FT232RL, compatible with 3.3V/5V logic level
![]()
Features at a glance
- Original FT232RL onboard
- Supports Mac OS, Linux, Android, WinCE, Windows 7/8/8.1/10/11...
- 3x VCCIO power mode via jumper setting:
- VCCIO - 5V: 5V output
- VCCIO - 3.3V: 3.3V output
- open the jumper: powered from target board (3.3V-5V)

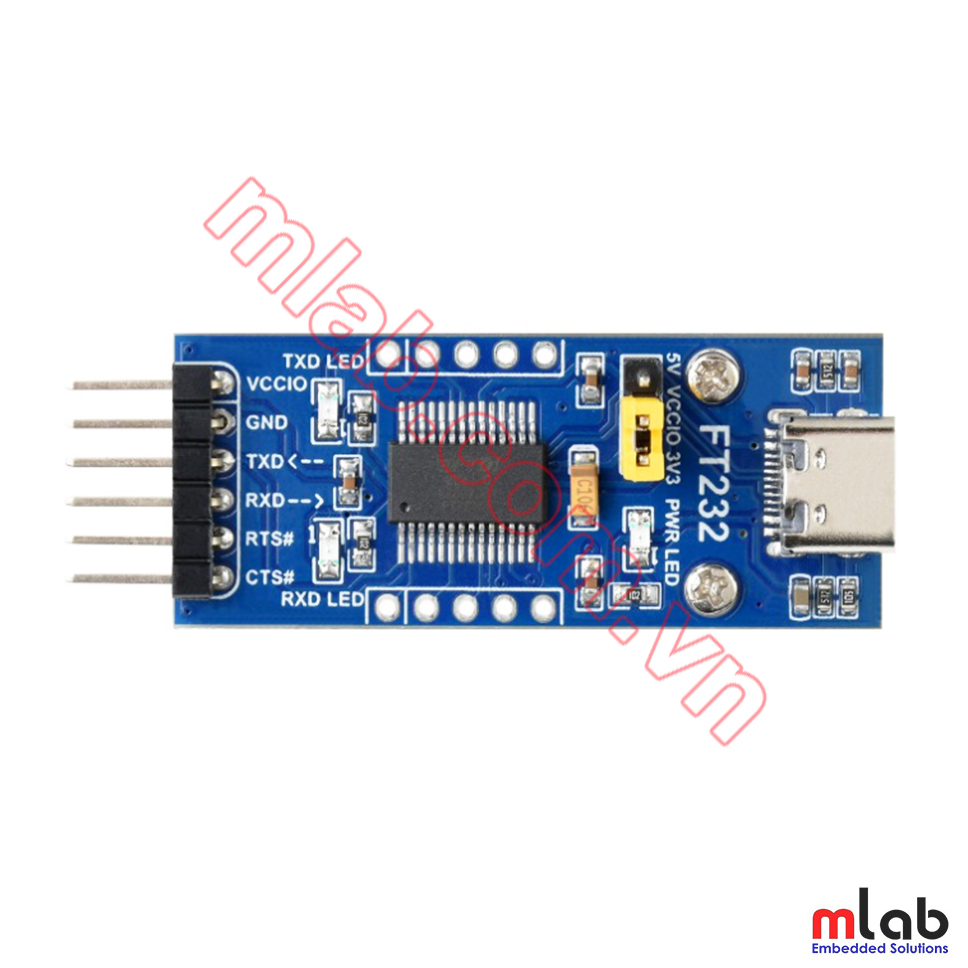

- 3x LED indicators: TXD, RXD, PWR
- Pins accessible on pinheaders: TXD, RXD, RTS#, CTS#

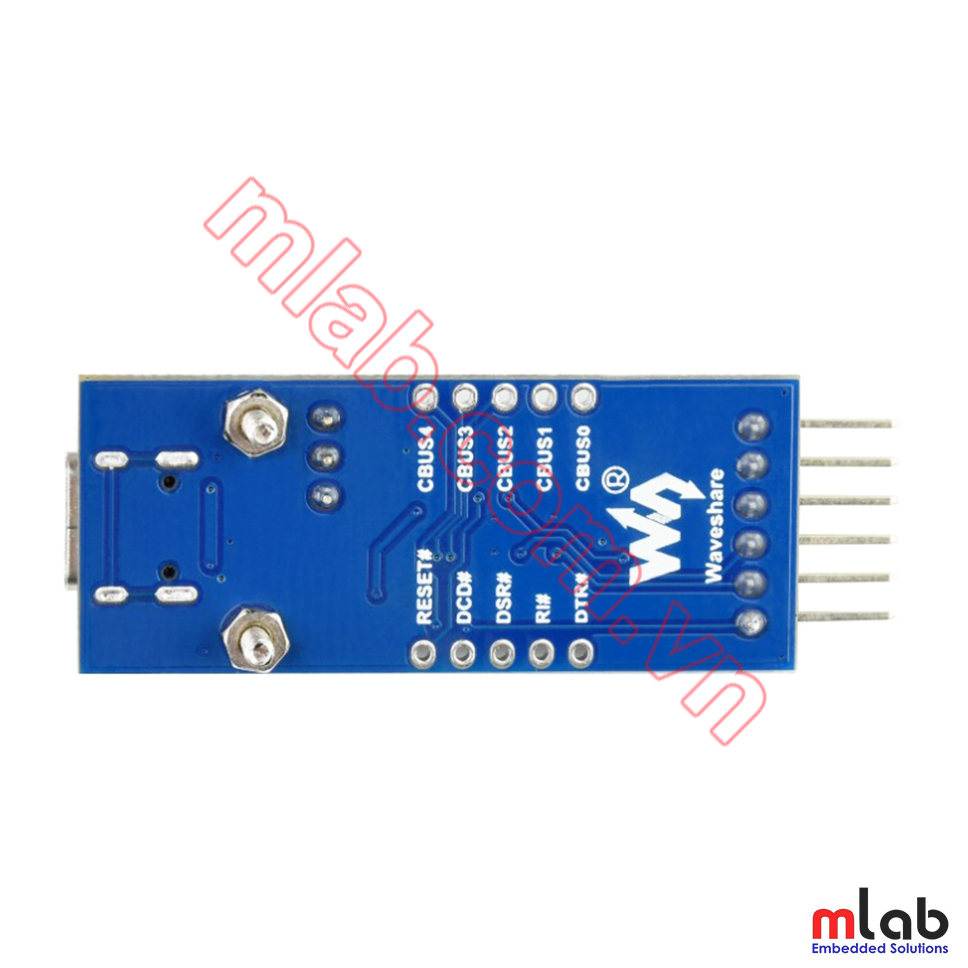

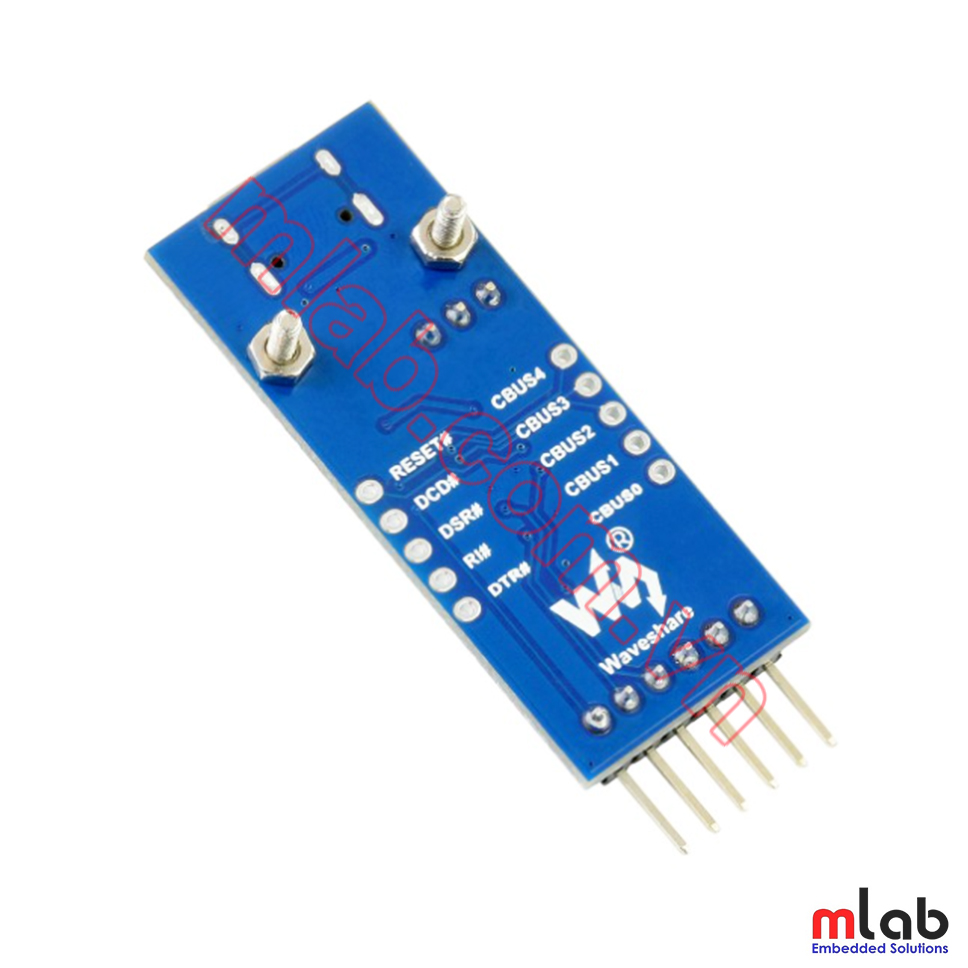

- Other pins are accessible on drilled holes, easily connected to user application system (the pin pitch is compatible with universal prototype board)
FT232 solution
![]()
Hardware connection

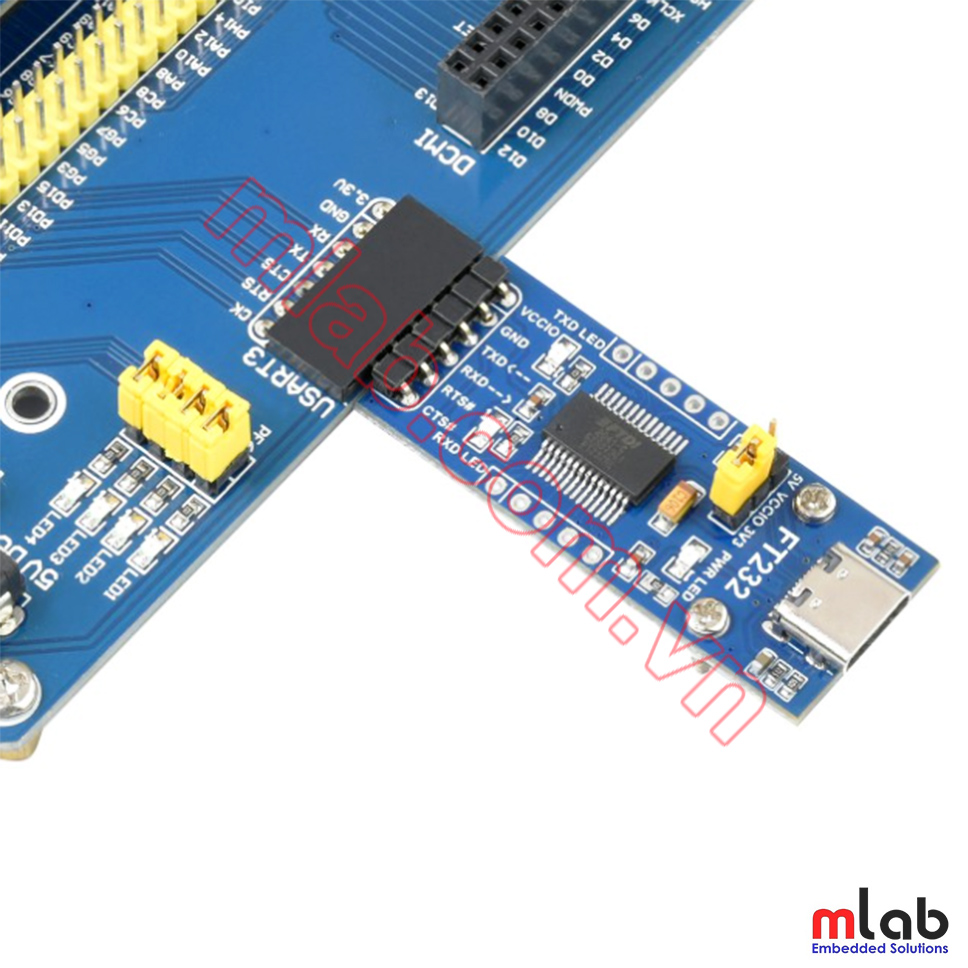

In the case of working with MCU
![]()
- VCCIO ↔ 3.3V or 5V output (the module is powered from USB, and the onboard jumper should be shorted to 3.3V or 5V)
- GND ↔ GND
- TXD ↔ MCU.RX (signal direction: MCU.RX << FT232 << PC.TX)
- RXD ↔ MCU.TX (signal direction: MCU.TX >> FT232 >> PC.RX)
- RTS ↔ MCU.CTS (signal direction: MCU.CTS << FT232 << PC.RTS)
- CTS ↔ MCU.RTS (signal direction: MCU.RTS >> FT232 >> PC.CTS)
CAUTION: the module is compatible with TTL level ONLY, to avoiding any damage, please DON'T direct connect it to RS232 circuit.
