Stable Transmission | Multi Devices | Multi Systems
Host port | USB |
---|---|
Device Port | UART |
Baudrate | 1200bps ~ 460800bps |

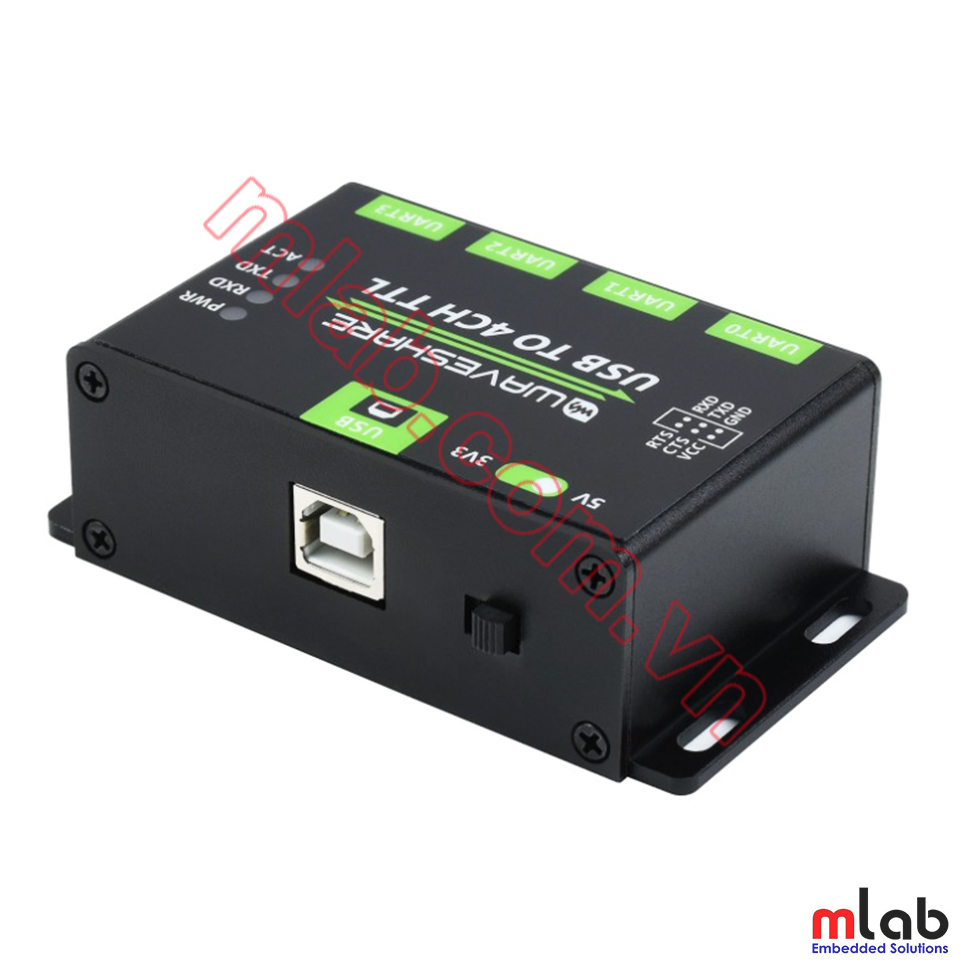

USB port | Connector: USB-B Protection: resettable fuse, ESD protection |
UART port | Connector: 6PIN fool-proof header Protection: IO protection diode |
Onboard resettable fuse and protection diode, provides over-current/over-voltage proof, improves shock proof performance; Onboard voltage translator circuit, with surge suppress and ESD protection, safe and stable communication
Compatible with popular systems like Win7/8/8.1/10/11, Mac, Linux, Android...
suitable for industrial/office conditions with strict requirements for operating environment and devices

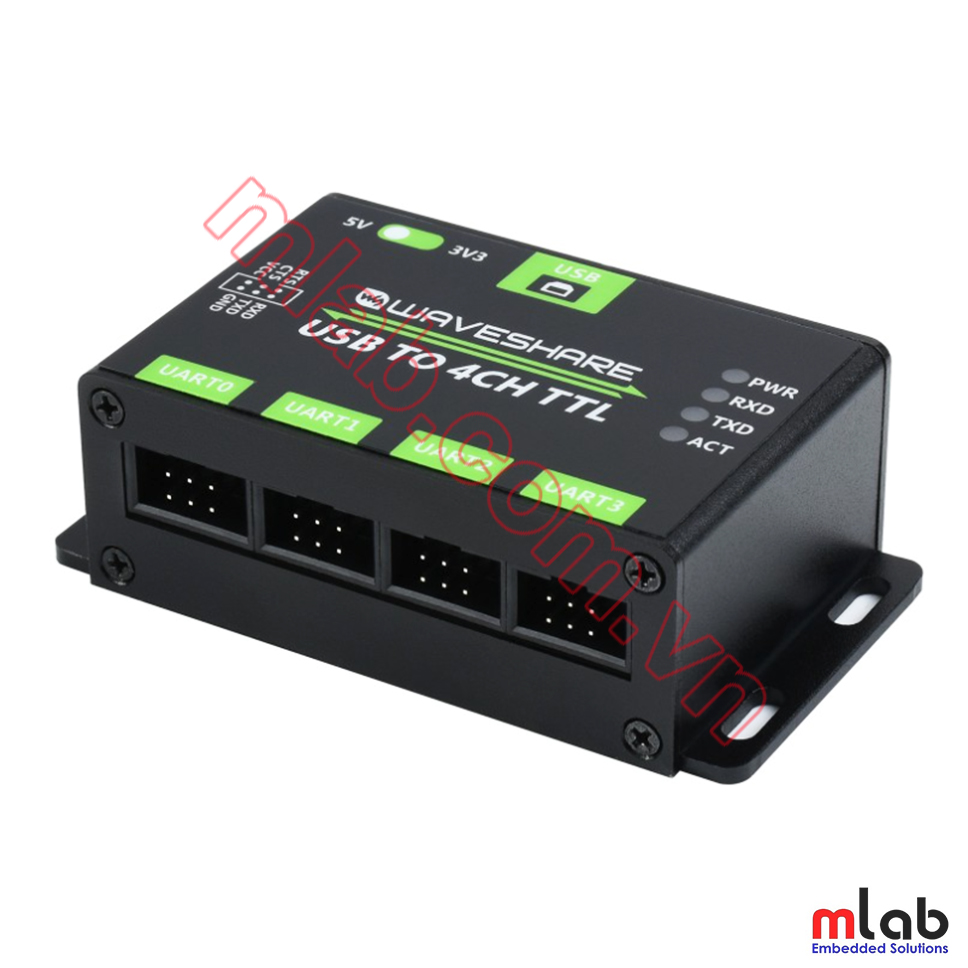

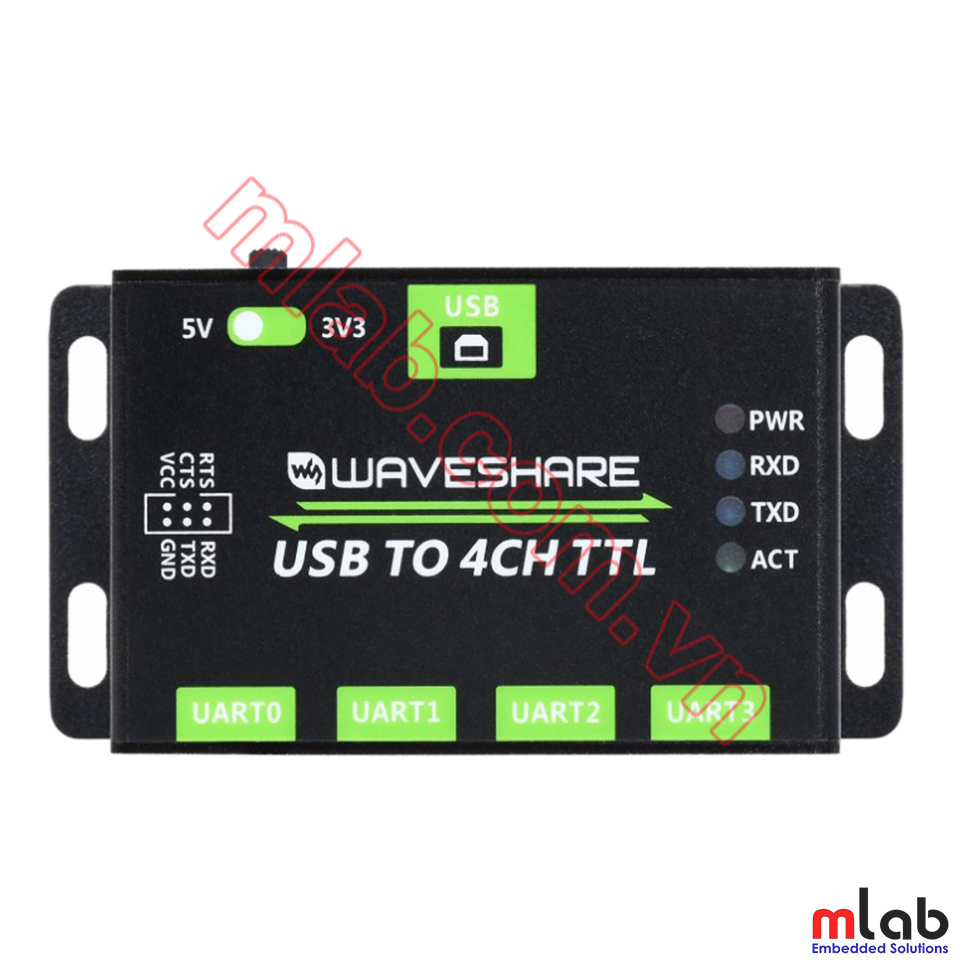

Indicators description
PWR | power indicator, lights up while the USB is connected and voltage is detected |
---|---|
RXD | receiving indicator, lights up while the device port is receiving data |
TXD | sending indicator, lights up while the USB port is sending data |
ACT | status indicator, lights up while the converter is properly operating |
VCC | 5V or 3.3V output, configured by switch |
---|---|
GND | Ground |
TXD | Connecting to MCU.RXD |
RXD | Connecting to MCU.TXD |
RTS | Connecting to MCU.CTS |
CTS | Connecting to MCU.RTS |
