    Modbus RTU 32-Ch Relay Module, RS485 Interface, With Multiple Isolation Protection Circuits
    Modbus RTU 32-Ch Relay Module, RS485 Interface, With Multiple Isolation Protection Circuits
    Modbus RTU 32-Ch Relay Module, RS485 Interface, With Multiple Isolation Protection Circuits
    Modbus RTU 32-Ch Relay Module, RS485 Interface, With Multiple Isolation Protection Circuits
    Modbus RTU 32-Ch Relay Module, RS485 Interface, With Multiple Isolation Protection Circuits
    Modbus RTU 32-Ch Relay Module, RS485 Interface, With Multiple Isolation Protection Circuits
    Modbus RTU 32-Ch Relay Module, RS485 Interface, With Multiple Isolation Protection Circuits
    Modbus RTU 32-Ch Relay Module, RS485 Interface, With Multiple Isolation Protection Circuits
    Modbus RTU 32-Ch Relay Module, RS485 Interface, With Multiple Isolation Protection Circuits
    Modbus RTU 32-Ch Relay Module, RS485 Interface, With Multiple Isolation Protection Circuits
    Modbus RTU 32-Ch Relay Module, RS485 Interface, With Multiple Isolation Protection Circuits
    Modbus RTU 32-Ch Relay Module, RS485 Interface, With Multiple Isolation Protection Circuits
    Modbus RTU 32-Ch Relay Module, RS485 Interface, With Multiple Isolation Protection Circuits
    Modbus RTU 32-Ch Relay Module, RS485 Interface, With Multiple Isolation Protection Circuits
    Modbus RTU 32-Ch Relay Module, RS485 Interface, With Multiple Isolation Protection Circuits

    Modbus RTU 32-Ch Relay Module, RS485 Interface, With Multiple Isolation Protection Circuits

    1,886,000VNDLiên hệ

    Sản phẩm nhập khẩu chính hãng từ Waveshare

    Hỗ trợ kỹ thuật trong suốt quá trình sử dụng

    Xuất hóa đơn VAT cho khách hàng, đơn vị có nhu cầu

    Sản phẩm được bảo hành 06 tháng


    Thông tin sản phẩm

    RS485 32-Ch Relay Module

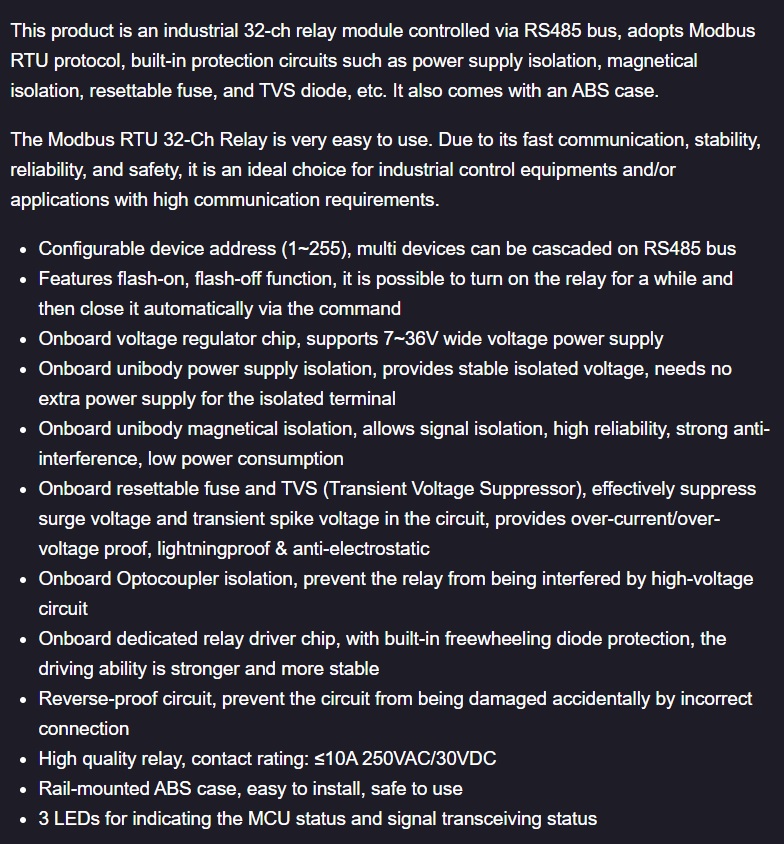

    Features At A Glance

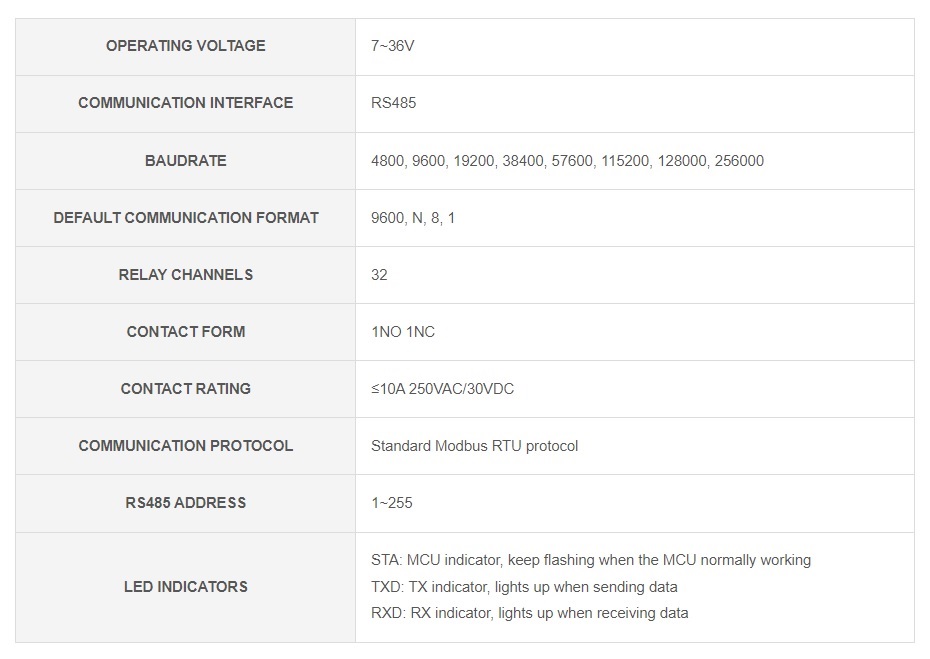

    Specifications

    Onboard Multiple Isolation Protection Circuit

    Multiple Protections, More Safe And Reliable

    Rail-Mount Case Design

    Rail-Mounted ABS Protective Enclosure, Easy To Install, Safe To Use



    RS485 Communication

    Configurable Device Address (1~255), Multi Devices Can Be Cascaded On RS485 Bus
    In Case Of Many Devices Are Cascaded, Or The Communication Distance Is Quite Long,
    It Is Necessary To Use RS485 Repeaters

    * for reference only, the USB to RS485 is NOT included.

    Relay Connection

    Contact Rating Of The Onboard Relay Up To 10A 250VAC/30VDC
    Directly Controlling 220VAC Home Appliances, Or Devices Below 30VDC



    Applications



    Product Show

    Outline Dimensions

    Resources & Services

    Wiki: www.waveshare.com/wiki/Modbus_RTU_Relay_32CH
