Bộ IO công nghiệp có 8 kênh Input, 8 kênh Ouput nối Relay
Kết nối qua Ethernet, Modbus RTU/Modbus TCP protocol
Sản phẩm nhập khẩu chính hãng Waveshare
Hỗ trợ kỹ thuật trong suốt quá trình sử dụng
Xuất hóa đơn GTGT cho cá nhân, đơn vị có nhu cầu
Sản phẩm được bảo hành 6 tháng
With Digital Input
Ethernet Port Communication, Supports Ethernet Port Cascade,
Modbus Protocol, PoE Power Supply

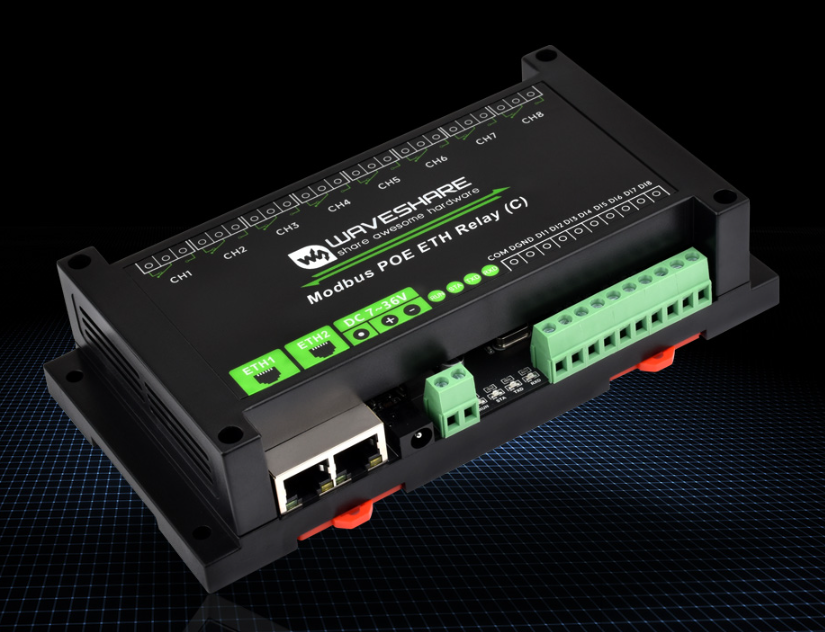

This product is an 8-ch relay module designed for industrial environments, featuring dual Ethernet interfaces control and 8 digital inputs. It adopts Modbus RTU / Modbus TCP protocols, supports Ethernet port cascade and PoE power supply, also comes with an ABS rail-mount case.
The Modbus POE ETH Relay (C) is very easy to use. Due to its fast communication, stability, reliability, and safety, it is an ideal choice for industrial control equipments and/or applications with high communication requirements.
+ Dual Ethernet ports design, supports Ethernet port communication cascade and PoE power supply cascade
+ Features flash-on, flash-off function, by passing arguments to the command, it is possible to turn on the relay for a while and then close it automatically
+ Supports DC 7~36V wide range power input and PoE power supply
+ Supports relay control through MQTT protocol, comes with Alibaba Cloud MQTT application demo
+ Onboard Optocoupler isolation, prevent the relay from being interfered by high-voltage circuit
+ Adopts dedicated relay driver chip, with built-in flyback diode protection, for stronger and more stable driving ability
+ Supports passive and active digital input, with bi-directional optocoupler isolation, built in debouncing algorithm. The relay supports digital input linkage control or toggle control
+ Reverse-proof circuit, prevent the circuit from being damaged accidentally by incorrect connection
+ High quality relay, contact rating: ≤10A 250VAC/30VDC
+ Rail-mounted ABS plastic enclosure, easy to install, safe to use
+ 4 LEDs and Network indicators for indicating the MCU status and signal transceiving status
Supports reading digital input by sending Modbus protocol commands via Ethernet for relay output control
Supports TCP Server / TCP Client / UDP Mode / UDP Multicast / MQTT
Supports Modbus RTU / Modbus TCP protocols
Supports software and Web Browser Configuration, Obtaining Dynamic IP Via DHCP, connecting to domain name server via DNS protocol
DC Power port: directly uses a power plug for power supply;
Screw terminal: DC 7~36V wide range power input;
PoE port: IEEE 802.3af PoE compliant
Note: The external power supply adapter is NOT included by default
Supports passive (dry contact) and active (wet contact) digital input, with bi-directional optocoupler isolation

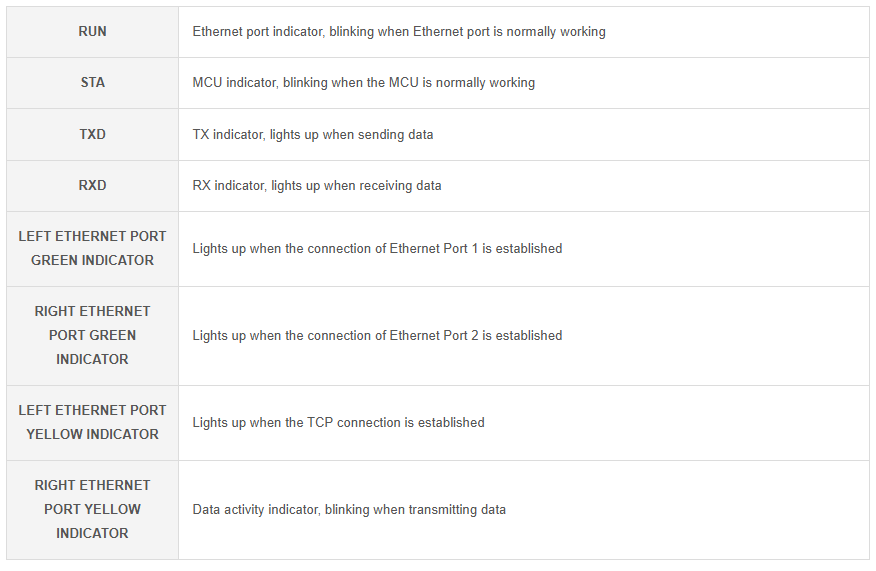

With Multiple LED Indicators, Easy To Monitor The Operating Status
Supports multiple relay control modes, each channel supports independent
control mode setting
Note: Except for linkage mode, all other modes also support relay control via commands.
Onboard 2-ch Ethernet Ports for communication and cascade
Either one can be used for dual serial server network communication, while the other one can be used for cascading or communication with other devices
Note: Each module in the cascade needs to be powered individually or using PoE cascade power supply.
The maximum power consumption of a single module is 7W, please pay attention to the output power of Router when using PoE cascade power supply.
Contact rating of the onboard relay up to 10A 250VAC/30VDC
Rail-mounted ABS plastic enclosure, easy to install, safe to use
Applications
Product show
Outline dimensions
Resources & Services
WIKI: www.waveshare.com/wiki/Modbus_POE_ETH_Relay_(C)
