Ethernet Port Communication & Cascade Support, Modbus Protocol, PoE Power Supply
This product is a 16-ch relay module designed for industrial environments, featuring dual Ethernet interfaces control. It adopts Modbus RTU / Modbus TCP protocols, supports PoE power supply, also comes with an ABS rail-mount case.
The Modbus POE ETH Relay 16CH is very easy to use. Due to its fast communication, stability, reliability, and safety, it is an ideal choice for industrial control equipments and/or applications with high communication requirements.
+ Dual Ethernet ports design, supports Ethernet port communication cascade and PoE power supply cascade
+ Features flash-on, flash-off function, it is possible to set the delay closing after opening or delay opening after closing
+ Supports DC 7~36V wide range power input and PoE power supply
+ Supports relay control through MQTT protocol, comes with Alibaba Cloud MQTT application demo
+ Onboard Optocoupler isolation, prevent the relay from being interfered by high-voltage circuit
+ Adopts dedicated relay driver chip, with built-in flyback diode protection, for stronger and more stable driving ability
+ Reverse-proof circuit, prevent the circuit from being damaged accidentally by incorrect connection
+ High quality relay, contact rating: ≤10A 250VAC/30VDC
+ Rail-mounted ABS plastic enclosure, easy to install, safe to use
+ 4 LEDs and Network indicators for indicating the MCU status and signal transceiving status
Supports Sending Modbus RTU/TCP Protocol Commands Via Ethernet Port To Control Relay And Various Devices
Supports TCP Server / TCP Client / UDP Mode / UDP Multicast / HTTP / MQTT
Supports Modbus RTU protocol/Modbus TCP protocol
Supports software and Web Browser Configuration, Obtaining Dynamic IP Via DHCP, connecting to domain name server via DNS protocol
DC Power port: directly uses a power plug for power supply;
Screw terminal: DC 7~36V wide range power input;
PoE port: IEEE 802.3af PoE compliant
NOTE: The external power supply adapter is NOT included by default, it is recommended to purchase 12V power supply if you need it.

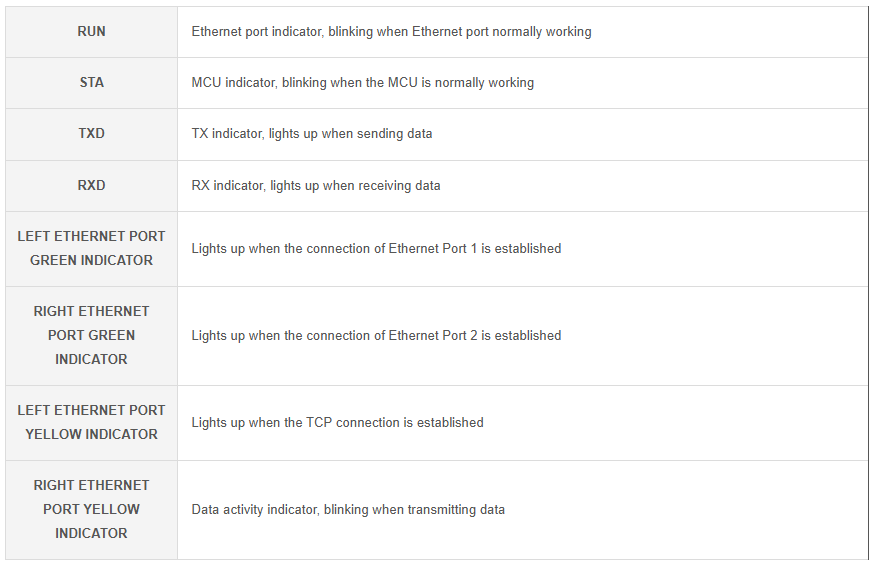

With Multiple LED Indicators, Easy To Monitor The Operating Status

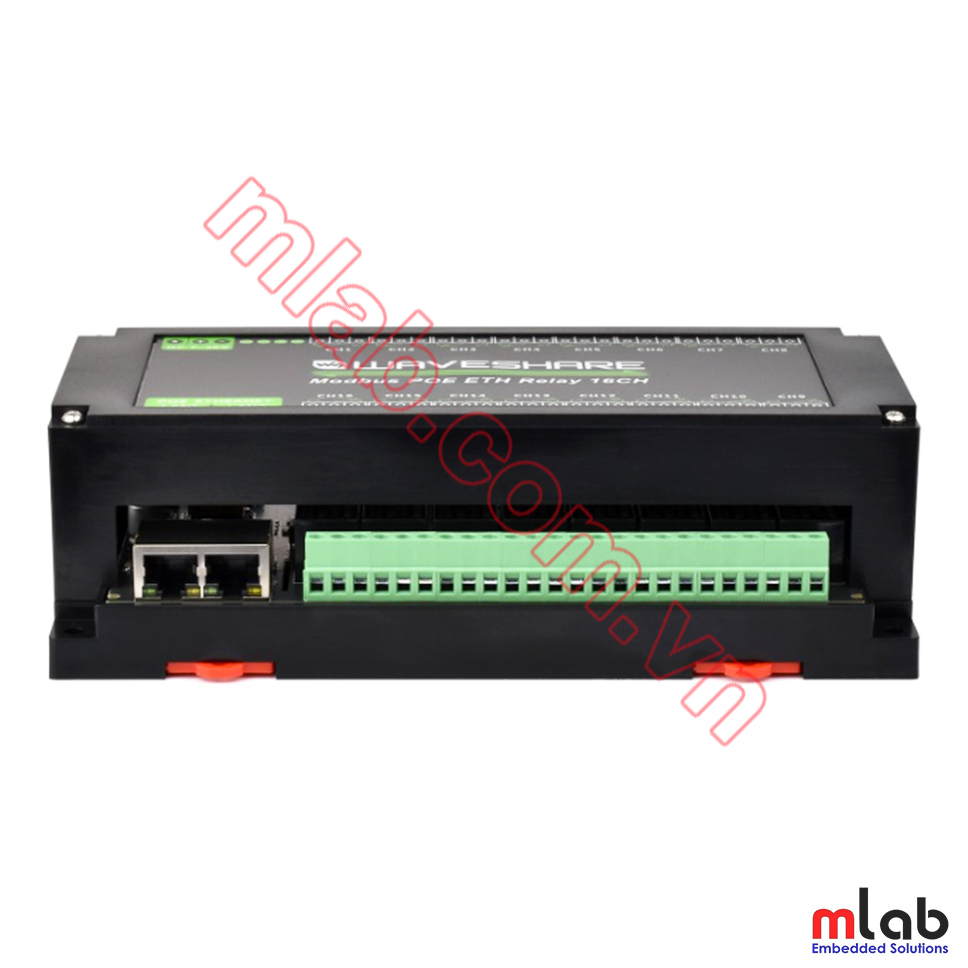

Onboard 2-ch Ethernet Ports for communication and cascade
Either one can be used for dual serial server network communication, while the other one can be used for cascading or communication with other devices
Note: Each module in the cascade needs to be powered individually or using PoE cascade power supply. The maximum power consumption of a single module is 7W, please pay attention to the output power of Router when using PoE cascade power supply.
Contact rating of the onboard relay up to 10A 250VAC/30VDC
Rail-mounted ABS plastic enclosure, easy to install, safe to use
Applications

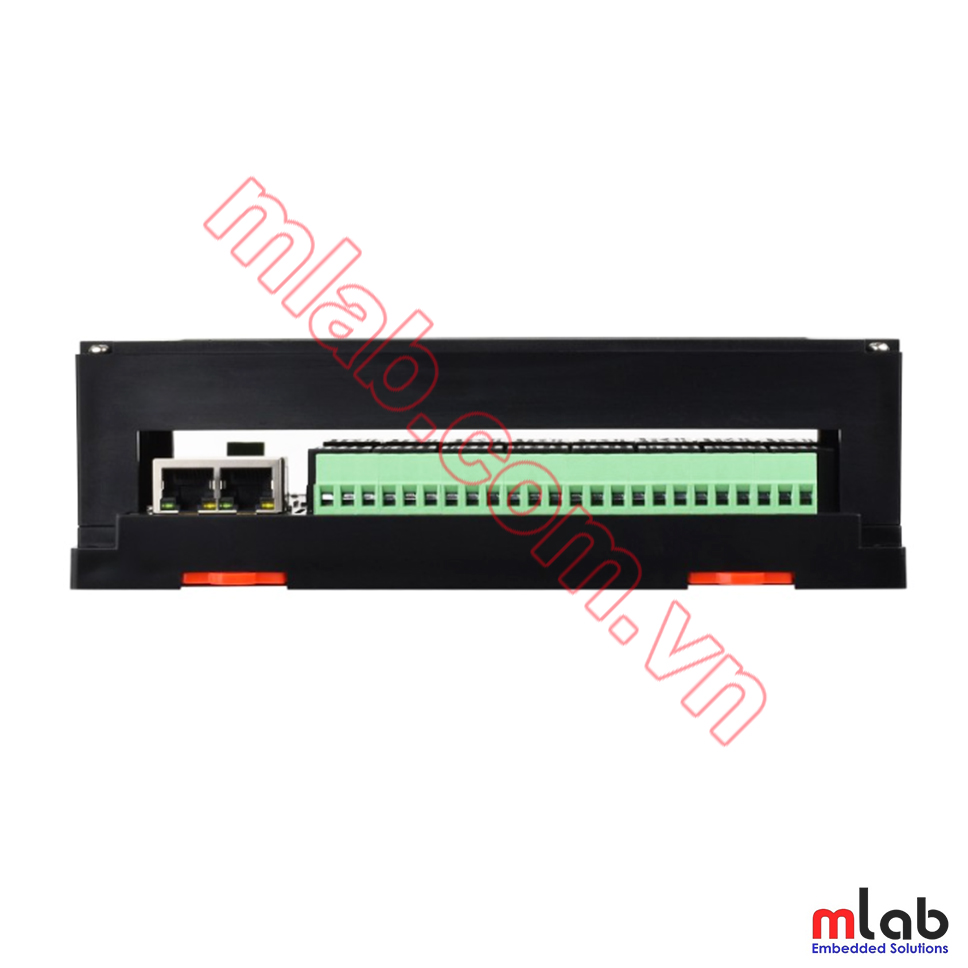

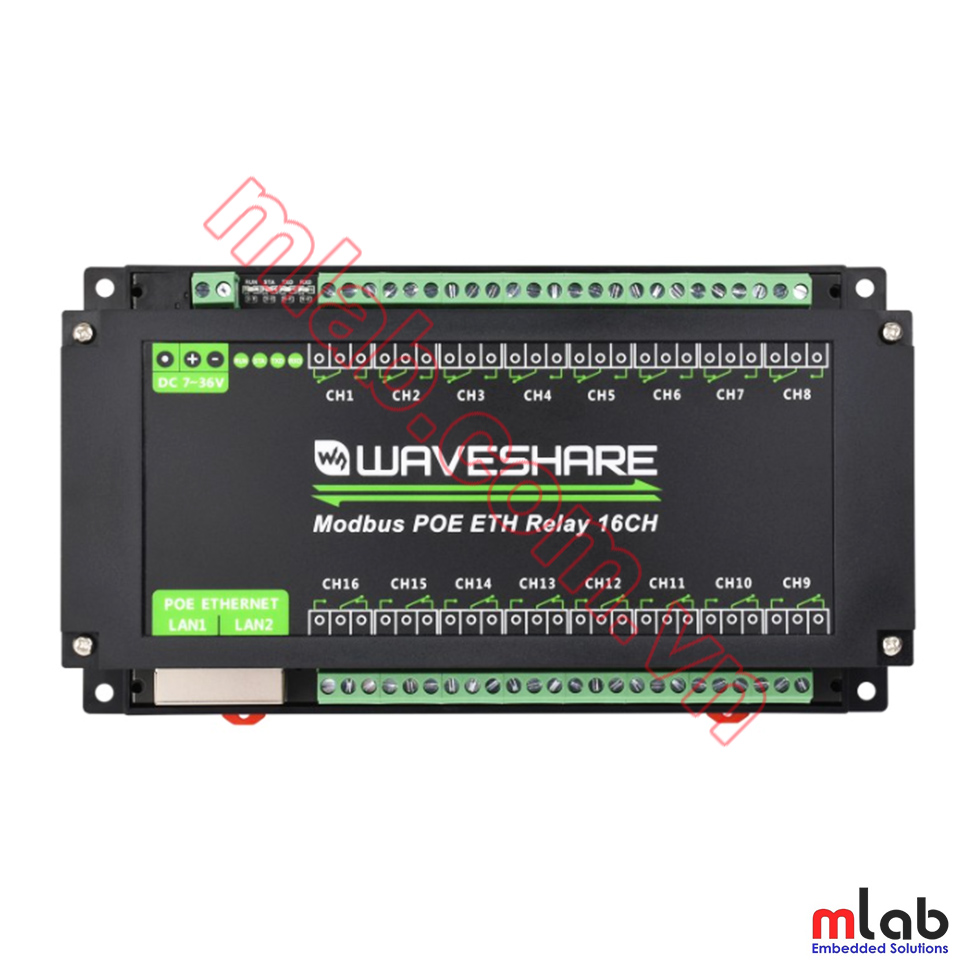

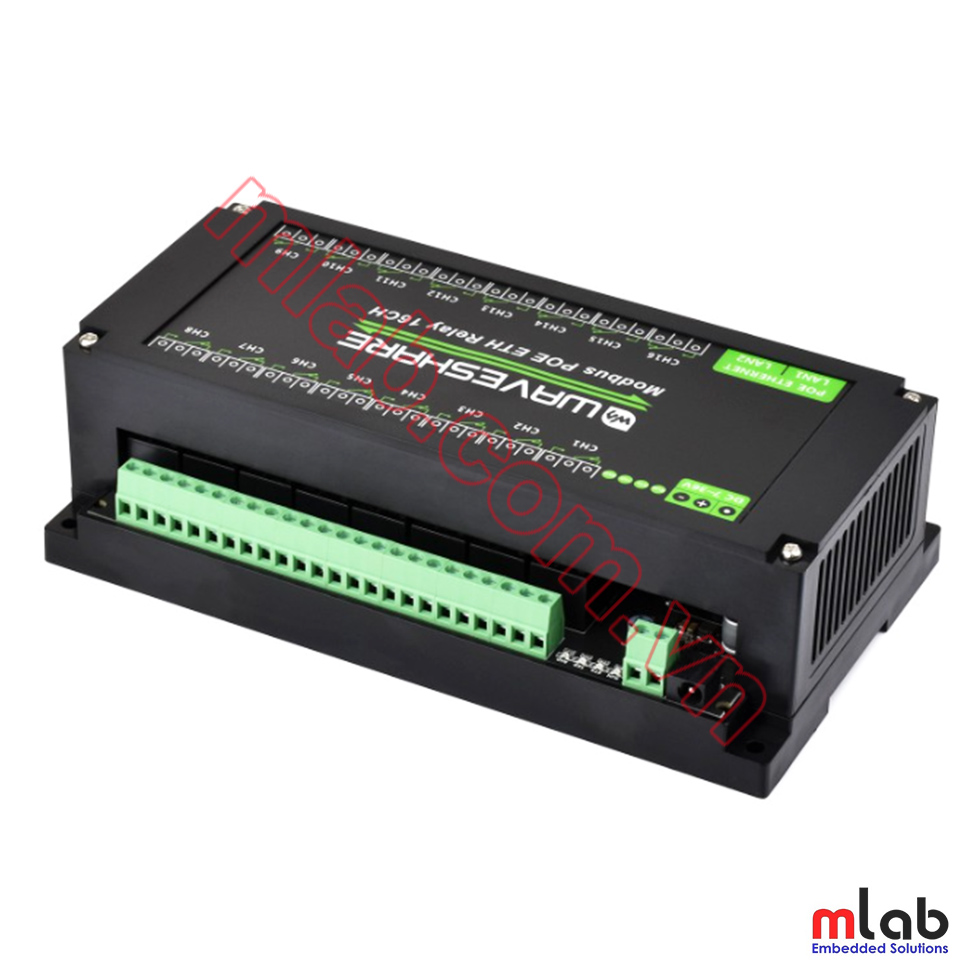

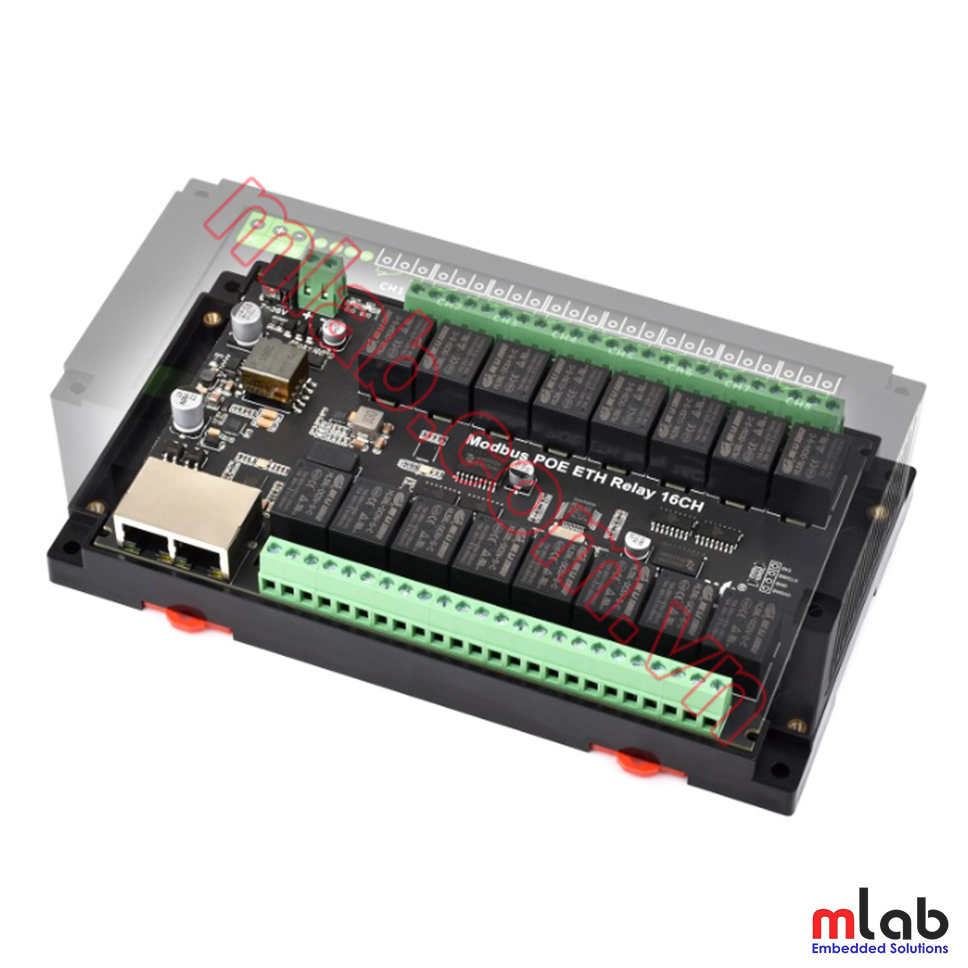

Product show
Outline dimensions
Resources & Services
WIKI: www.waveshare.com/wiki/Modbus_POE_ETH_Relay_16CH
