It measures pH levels in soil and water applications ranging from 0 to 14 pH, making it widely applicable in industrial environmental sensing scenarios.

Description

This pH Sensor with hook-up wires measures the hydrogen-ion activity in water-based solutions, indicating its acidity or basicity expressed as pH. pH level is an important indicator in many scenarios, especially in monitoring soil conditions and water quality.

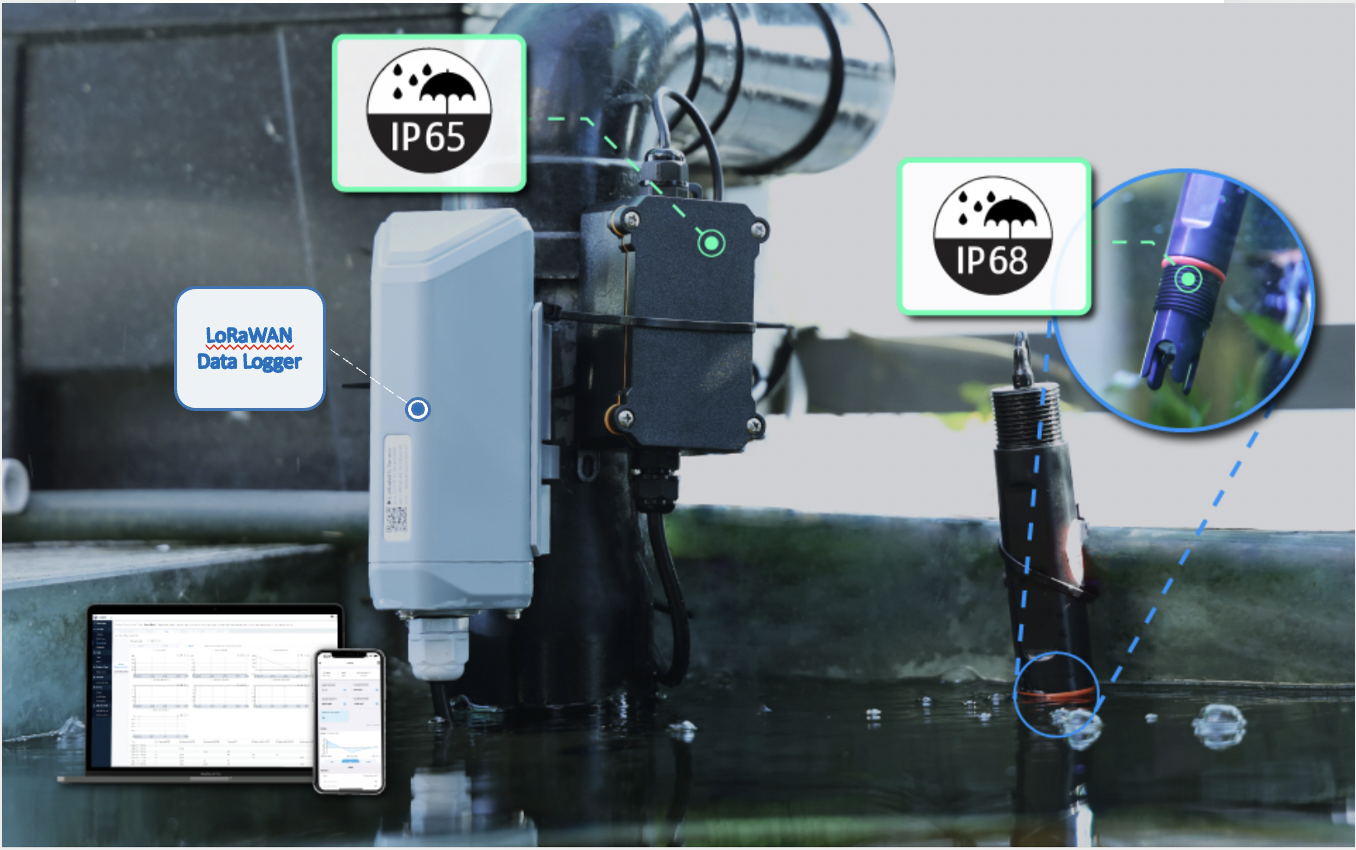

This pH Sensor is designed with industry standards. It adopts international advanced solid dielectric and large-area polytetrafluoroethylene liquid junction, which is not easy to block and convenient for maintenance. Its electrode is IP68, the transmitter is IP65 rated, waterproof in a tight seal, and capable of withstanding long-term constant use in professional scenarios. This pH Sensor comes with a MODBUS-RTU RS485 serial communications protocol and 0~2V Analog Voltage output. It can be easily connected and integrated with other devices such as data loggers, Converter, displays, etc. This cost-effective pH sensor features low-power consumption, compact size, portability, and high integration.

Note

If you find white solid granular crystals around the probe shroud, this is a normal situation and please do not worry. It is caused by temperature change, environmental change, or redox during the process of delivery. However, it will not affect the nature of the internal solution and the normal operation of the sensor.
If you find it, please use a wet paper towel to gently wipe off the crystals on it, please do not let it near your children to avoid accidental ingestion.

Application

Agriculture
Animal Husbandry
Forestry and Horticulture
Sewage Treatment
Swimming Pools and Spas
Scientific Experiments
Educational Projects
Other environmental monitoring scenarios

Specification

pH
Range	0 ~ 14pH
Accuracy	± 0.1 pH
Resolution	0.01 pH

General Parameters
Product Model	S-pH-01A
Output Interface	Analog Voltage 0-2V (Output resistance ~0ohm)	RS-485 MODBUS-RTU
Power Supply	3.9-30V/DC	3.9-30V/DC
Power Consumption	35mA@24V DC	35mA@24V DC
Start-up time	< 2 seconds
pH Measurement	High impedance and isolated input; Range: 0 - 14PH, Resolution: 0.01PH, Accuracy: +/- 0.1PH; Can be used for a solution or semi-solid substrate
Temperature Measurement	Range: - 40~80°C, Resolution: 0.1°C, Accuracy: +/-0.5°C
IP Rating	Electrode: IP68; Transmitter: IP65
Operating Temperature	-40℃ ~ 85℃
Installation	Electrode: 3/4"NPT screw threads; Transmitter: Mounting hole
Cable Length	Power and Signal Cable:2 meters (Customizable) Electrode Cable: 5 meters
Dimension	Electrode: WidthDiameter 16030mm; 3/4"NPT screw threads Transmitter: 140mm65mm50mm

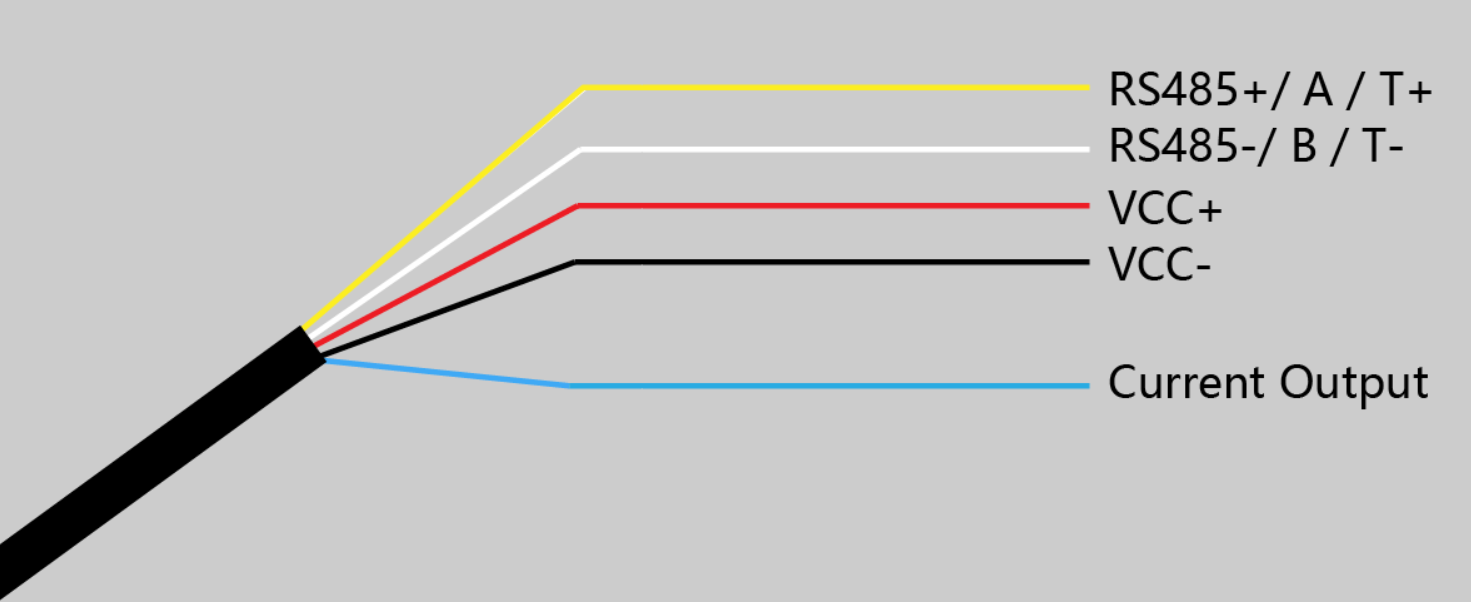

KẾT NỐI CẢM BIẾN

Cảm biến hỗ trợ 2 chuẩn kết nối: RS485 protocol hoặc 0~2V analog. Người dùng có thể tùy chọn theo hình thức kết nối nào sẽ phù hợp với thiết bị và hệ thống của mình.

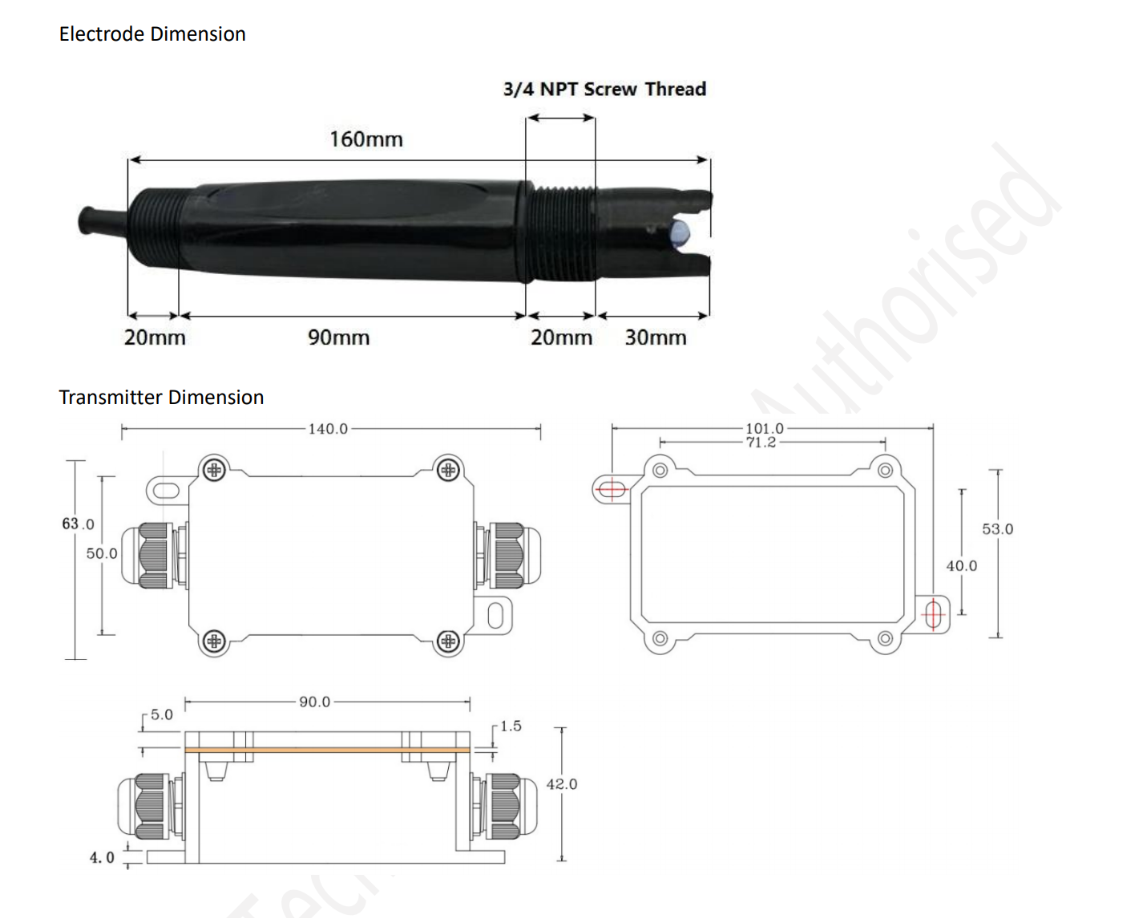

KÍCH THƯỚC CẢM BIẾN
