Cảm biến công nghiệp đo nồng độ chất rắn hòa tan TDS và độ điện dẫn EC của dung dịch, IP68, MODBUS-RTU RS485 và 0-2V Analog Voltage

PRODUCT DETAILS

It measures Conductivity, Salinity, TDS with temperature compensation, making it widely applicable in industrial environmental sensing scenarios.

Features

- High Performance: High accuracy, fast response, and stability
- Universal Protocol: MODBUS-RTU RS485 and 0~2V Analog Voltage
- Wide-range Power Supply: Can be powered with supply voltage within 3.9V ~ 30V
- Strong Robustness: Suitable to be immersed in water for a long time, anti-corrosion, automatic temperature compensation

Description

This EC & TDS Sensor with hook-up wires measures the Conductivity, Salinity, and total dissolved solids (TDS) in a liquid and is widely used in monitoring water quality.

The EC & TDS Sensor is designed with industry standards. It is designed with ATC (automatic temperature compensation), which ensures the data is accurate regardless of the temperature changes. Its electrode is IP68, the transmitter is IP65 rated, waterproof in a tight seal, and capable of withstanding long-term constant use in professional scenarios. This EC & TDS Sensor comes with a MODBUS-RTU RS485 serial communications protocol and 0~2V Analog Voltage output. It can be easily connected and integrated with other devices such as data loggers, Converter, and displays. This cost-effective EC & TDS Sensor features low-power consumption, compact size, portability, and high integration.

Applications

Agriculture, Hydroponics, Aquaponics, Sewage treatment, Research, Environmental monitoring and Other environmental monitoring scenarios.

Specifications

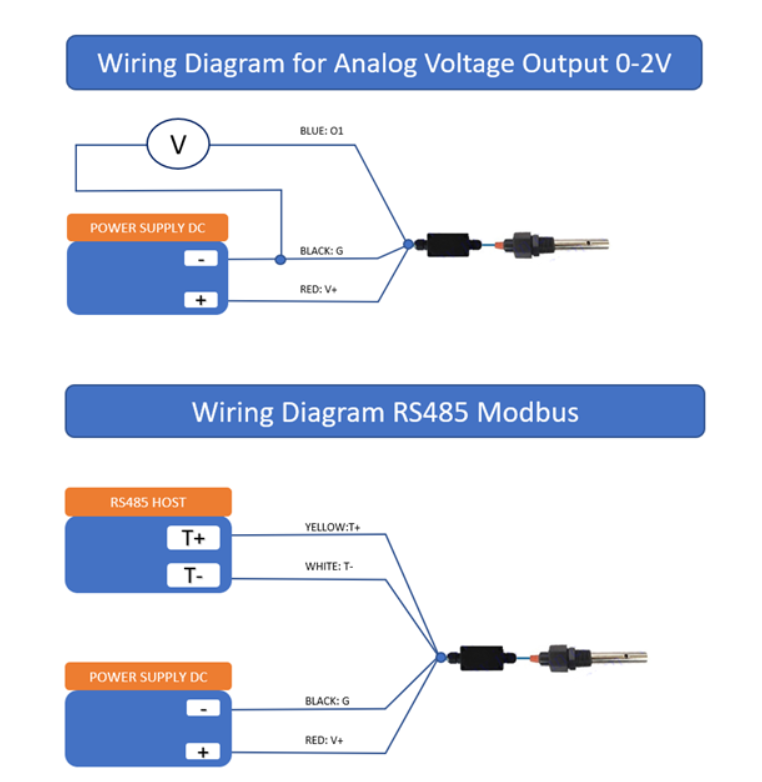

Interface	Analog Voltage 0-2V (Output resistance ~0ohm)	RS485 Modbus-RTU
Power Supply	3.9-30V/DC	3.9-30V/DC
Power Consumption (Idle)	40mA@24V DC	40mA@24V DC
Power Consumption (Max)	80mA@24V DC	80mA@24V DC
Start-up Time	< 2 seconds
EC Measurement	Isolated Sensor Input, Range: 0 - 20000us/cm Resolution: 0-10000us/cm, 10us/cm;10000-20000 us/cm, 20000us/cm, 50us/cm Accuracy: 0-10000us/cm, ±3%; 10000-20000us/cm, ±5% EC temperature compensation: 0-50°C
Temperature Measurement	Range: -40~80°C, Resolution: 0.1°C, Accuracy: ±0.5°C
TDS (Total Dissolved Solids)	Range: 0-20000mg/L
*SALINITY*	Range: 0-20000mg/L

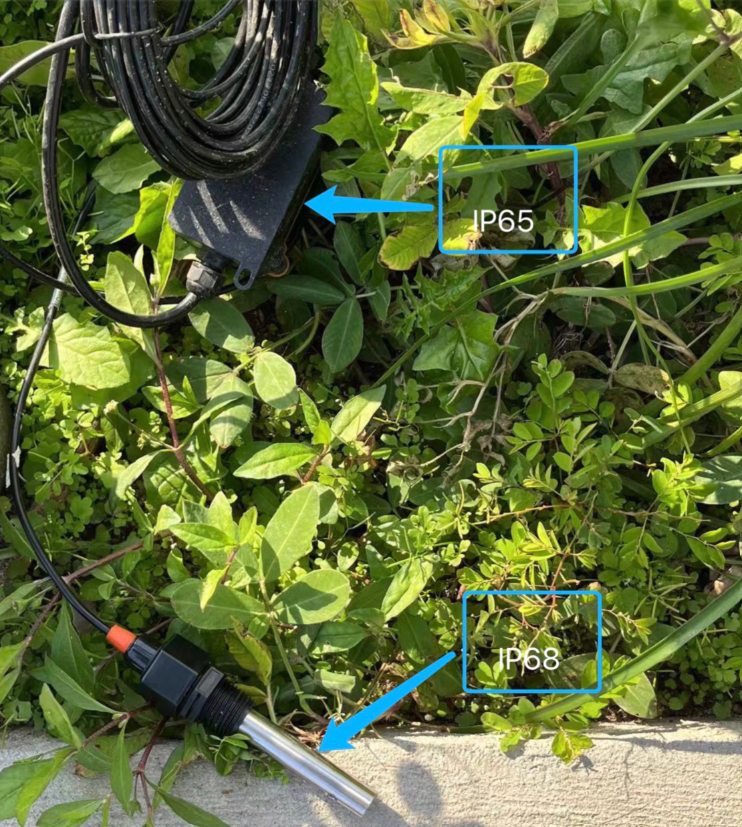

IP Ratings	Electrode： IP68 Transmitter： IP65
Operating Temperature	-40 ~ +85°C
Installation	Electrode：1/2"NPT screw threads Transmitter: Mounting hole
Cable Length	Power and Signal Cable：2 meters or Customize Electrode Cable：10 meters

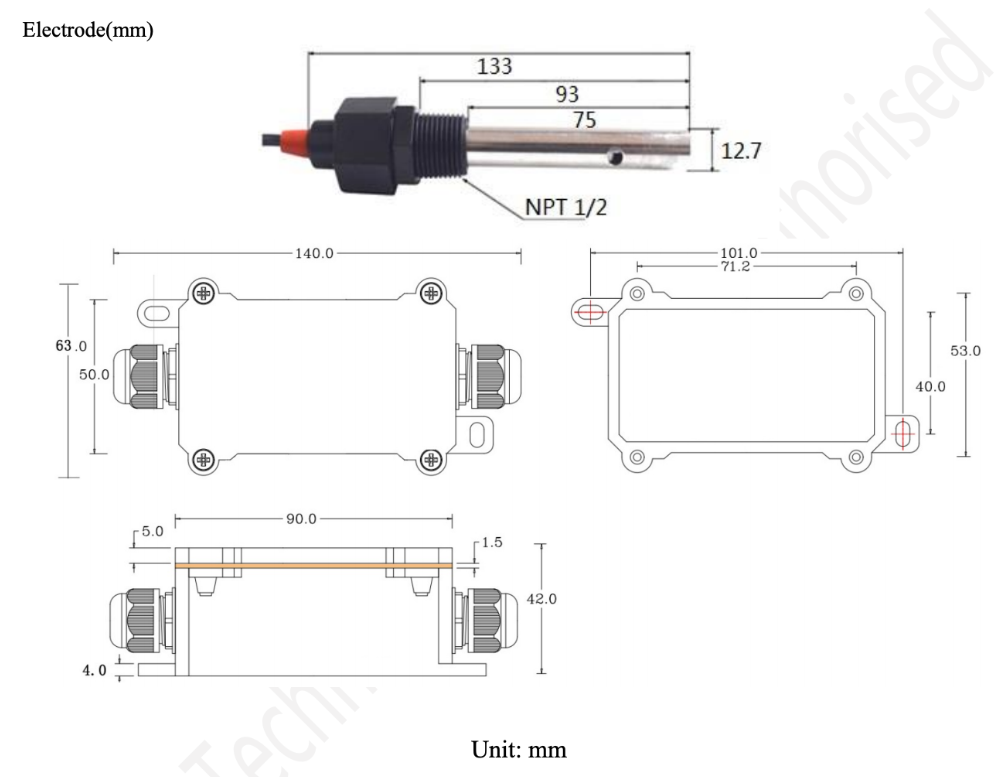

Dimension	Electrode：1/2"NPT screw threads Transmitter：1287042mm
