Note

Please note that this sensor is factory-set to measure water density, if you have any requirements, please contact us at sđt(zalo): 086.262.8846 to set the density like diesel or other mild-corrosive liquid.

PRODUCT DETAILS

It measures liquid levels ranging from 0 to 5 meters, making it widely applicable in industrial environmental sensing scenarios.

This sensor is with a waterproof aviation connector.

Features

• High Performance: High accuracy, fast response, and stability
• Universal Protocol: MODBUS-RTU RS485
• Wide-range Power Supply: Can be powered with supply voltage within 11V ~ 30V
• Strong Robustness: Suitable to be immersed in water, oil, and other mild-corrosive liquid for a long time, anti-corrosion material, excellent anti-corrosion performance, and durable
• Maintainance-Free: Anti-blocking design, easy to clean

Description

The liquid level sensor measures the liquid level of mildly corrosive liquids such as water and oil. It is compatible with a data logger or other devices that support the RS485 Modbus-RTU protocol.

The liquid level sensor has a built-in high-performance and highly sensitive silicon piezoresistive core. The internal chip converts the sensor's millivolt signal into a standard protocol that can connect to a computer, control instrument, or PLC.

It's small-size, lightweight, and easy to install. It has a stainless steel sealing structure that can work in a corrosive environment. The sensor has high anti-vibration and anti-impact performance. It can be widely used in process control, aviation, aerospace, automobile, medical equipment, HVAC, and other applications.

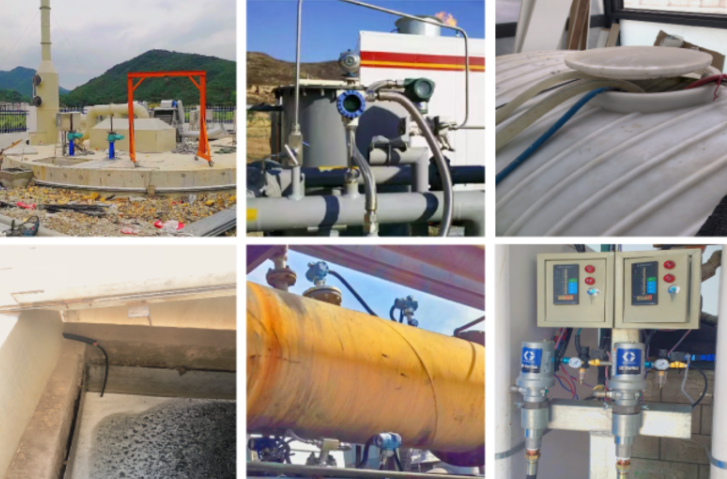

Applications

• Reservoir detection
• Pool pump station
• River monitoring
• Marine monitoring
• Dam and Lake monitoring
• Sewage treatment
• Deep well level monitoring
• Tank level monitoring

Specifications

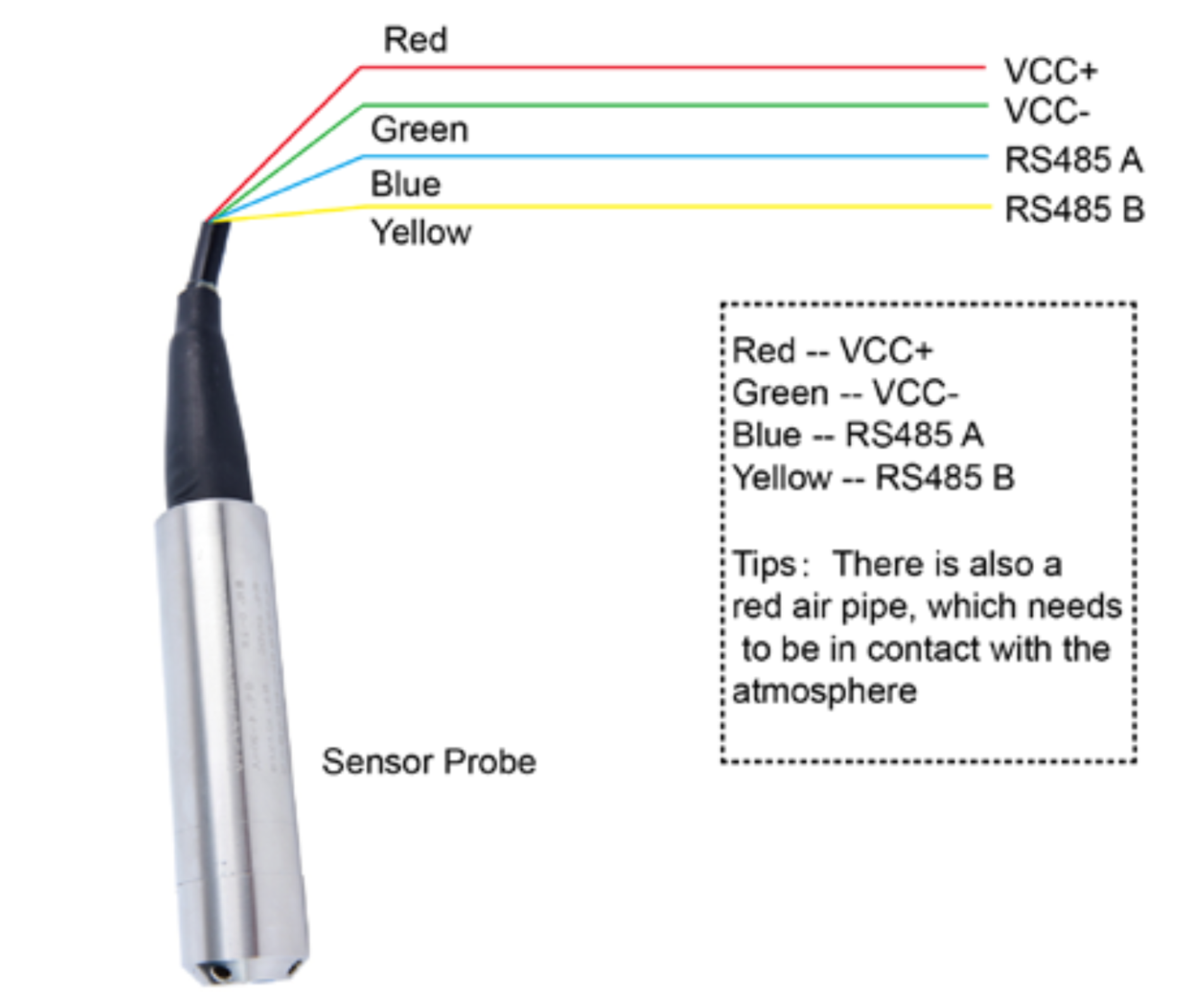

Wiring Diagram

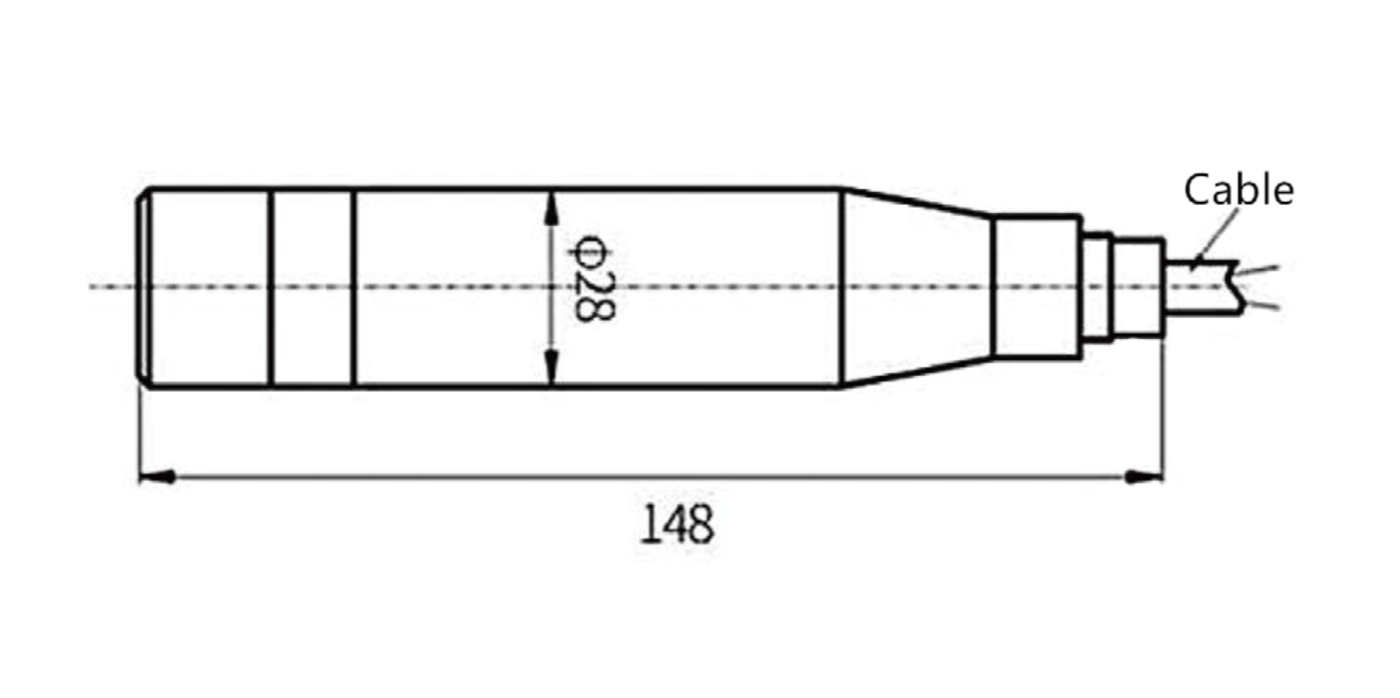

Dimensions
