    TOF Laser Range Sensor, UART / CAN Bus, Cascading Support, Ranging Up To 5m, With Software

    TOF Laser Range Sensor


    The TOF Laser Range Sensor is a TOF-based (time of flight) laser ranging sensor with embedded MCU and ranging algorithm, which is capable of offering up to 5m measuring range, ±1.5cm accuracy, and 1mm resolution. It supports cascade ranging via UART or CAN bus, configurable data output including active output and query output.

    This sensor can be widely used in applications like common distance measuring, robot obstacle avoidance / route planning, as well as drone altitude setting / ceiling detection, and more...

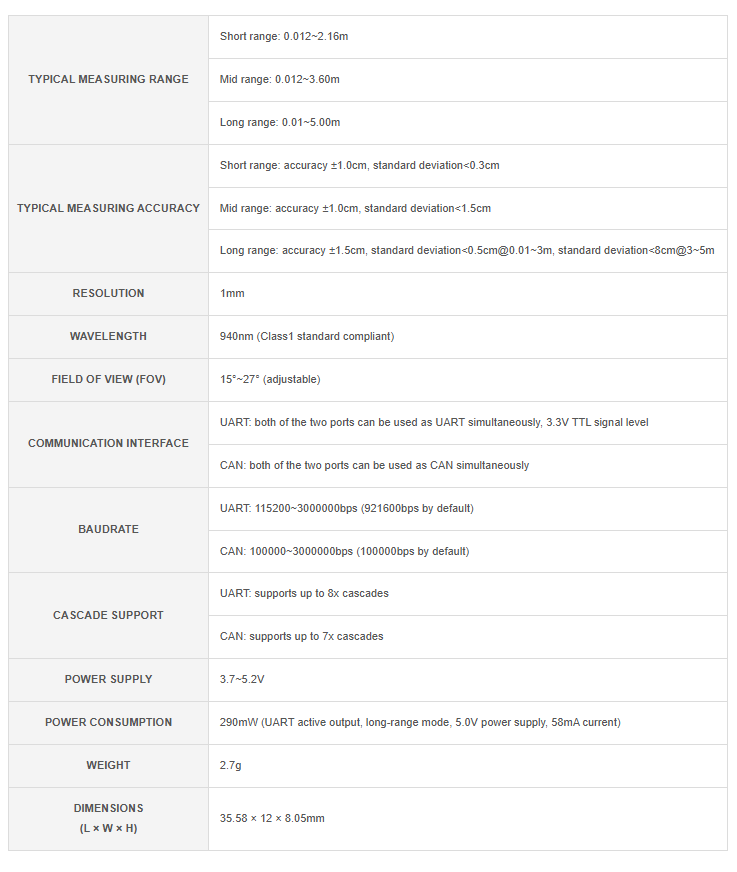

    Specifications



    Embedded MCU & Ranging Algorithm



    UART / CAN Support, Configurable Output



    - UART / CAN communication

    - Configurable communication bus, providing two ports (identical electric connection) for cascade ranging

    - Active output / query output

    - Configurable data output mode, make it more flexible to acquire data


    Cascade Ranging Support


    Multiple sensors can connected in series thanks to onboard two identical ports, and each sensor can be configured with an ID,
    therefore, the ranging data of all sensors can be acquired through one single communication bus.
    When using cascade ranging, three output modes are available: UART query, CAN query, and CAN active output

    up to 8x cascades on UART bus, up to 7x cascades on CAN bus


    Comes With Assistant Software


    Provides host computer assistant software, offering functions including sensor configuration, wave form monitor, data analysis, data record export and replay, firmware upgrade, and so on.


    Applications



    Hardware Connection


    Connecting with Raspberry Pi

    Connecting With Arduino


    Outline Dimensions
