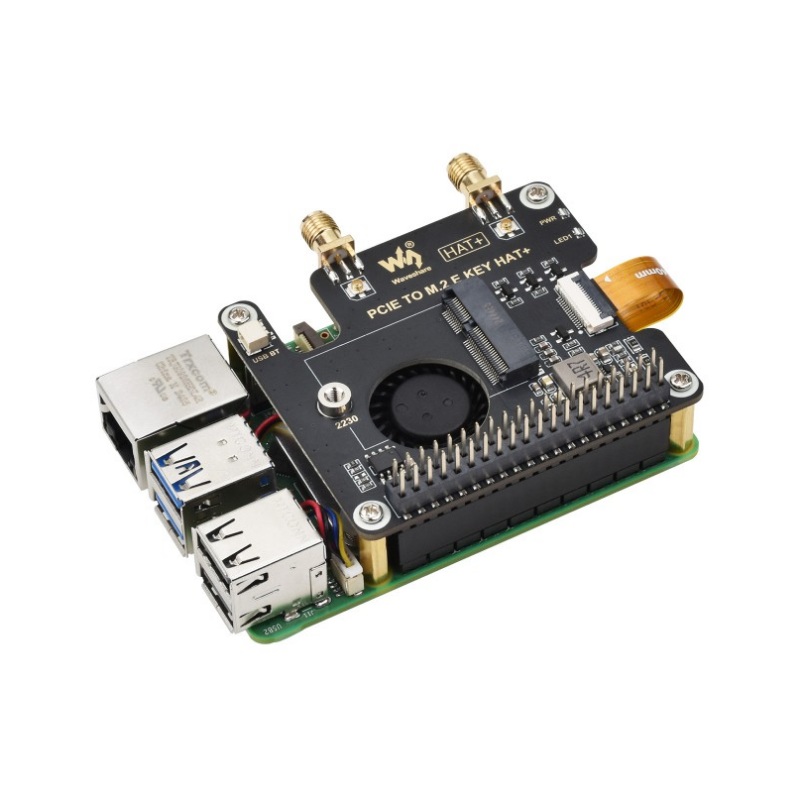

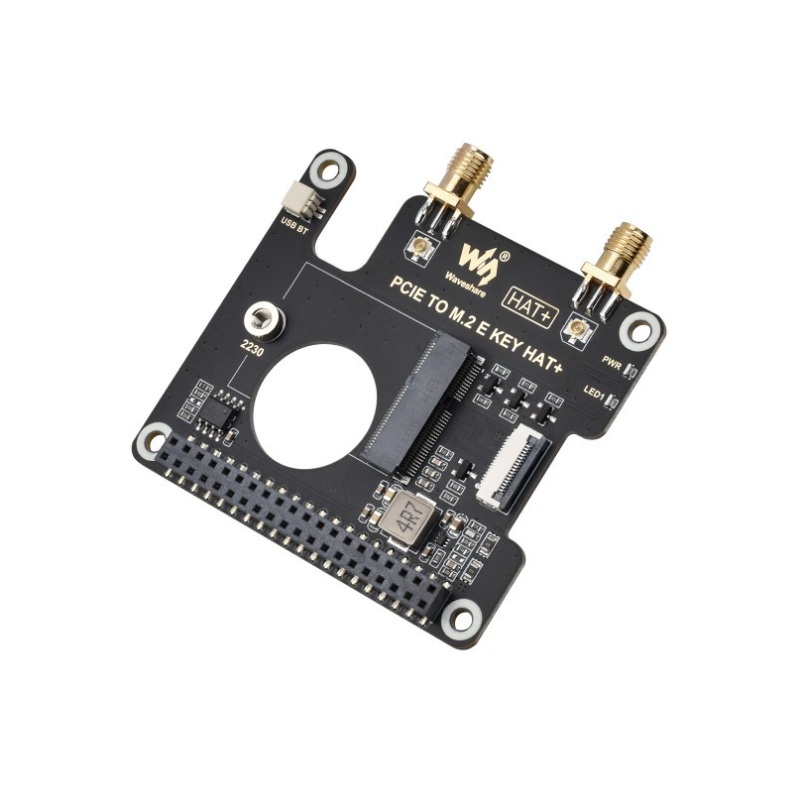

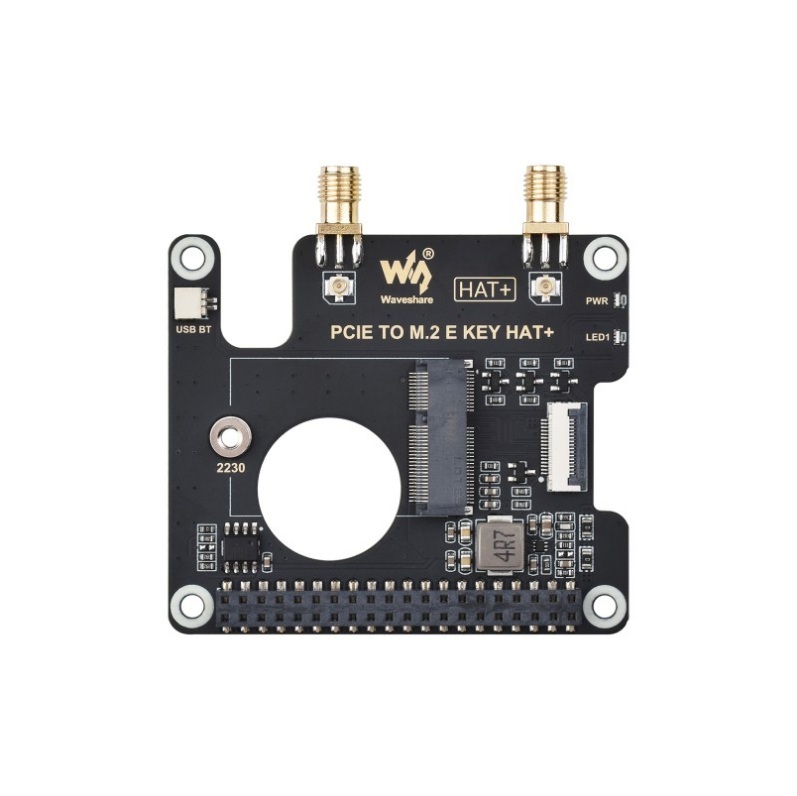

PCIe To M.2 E KEY HAT

Designed for Raspberry Pi 5

Compatible With Various NGFF (M.2 E Key) Wireless NIC

Kit Selection

Compatible with wireless NIC

suitable for A/E Key and E Key

Various wireless NIC support

Supports the following modules, with more compatible modules coming soon

Model	RTL8822CE		AX200		AX210			BE200
Wi-Fi Version	Wi-Fi 5		Wi-Fi 6		Wi-Fi 6E			Wi-Fi 7
Wi-Fi Band	2.4GHz	5GHz	2.4GHz	5GHz	2.4GHz	5GHz	6GHz	2.4GHz	5GHz	6GHz
Wi-Fi Rate	300Mbps	867Mbps	574Mbps	2400Mbps	574Mbps	2400Mbps	2400Mbps	574Mbps	2400Mbps	5800Mbps
Interface	NGFF (M.2 A/E Key)							NGFF (M.2 E Key)
Bluetooth Version	5.0		5.2		5.3			5.4
Technical Support	MU-MIMO
Antenna Connector	IPEX 4 Connector
System Support	Linux, Windows 10 / 11
Dimensions	22.0 × 30.0 × 2.4mm

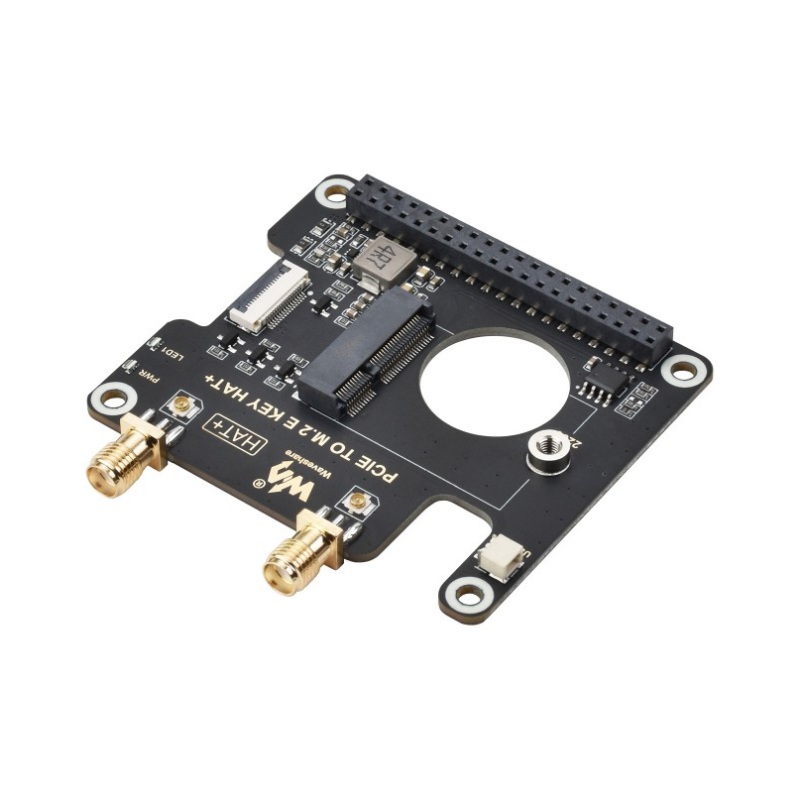

Onboard SMA female antenna connector

for easy antenna mounting

* for reference only, please refer to the Package Content for detailed part list

How to Install

* for reference only, please refer to the Package Content for detailed part list
