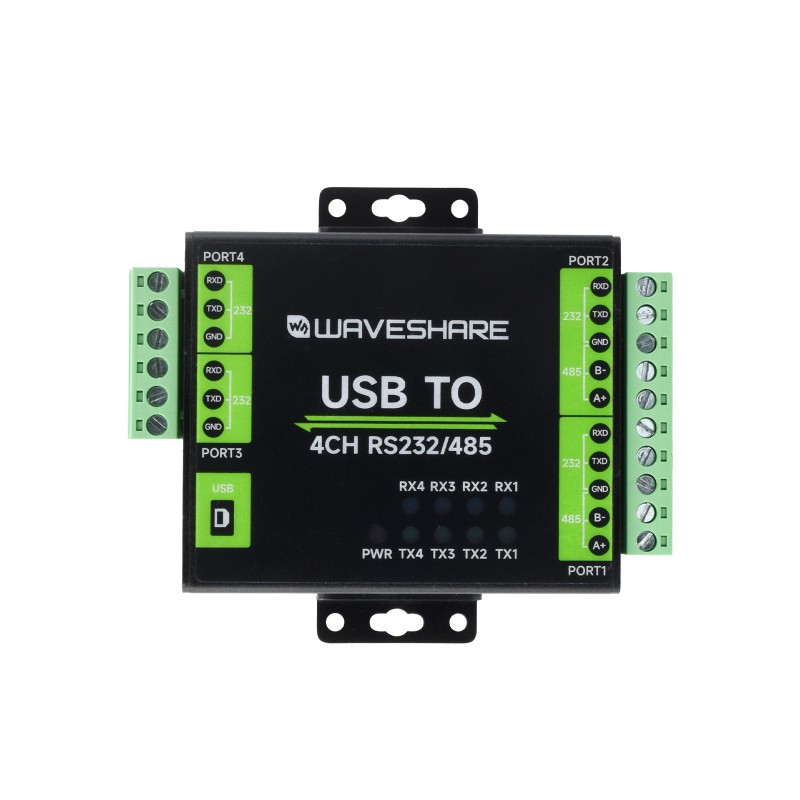

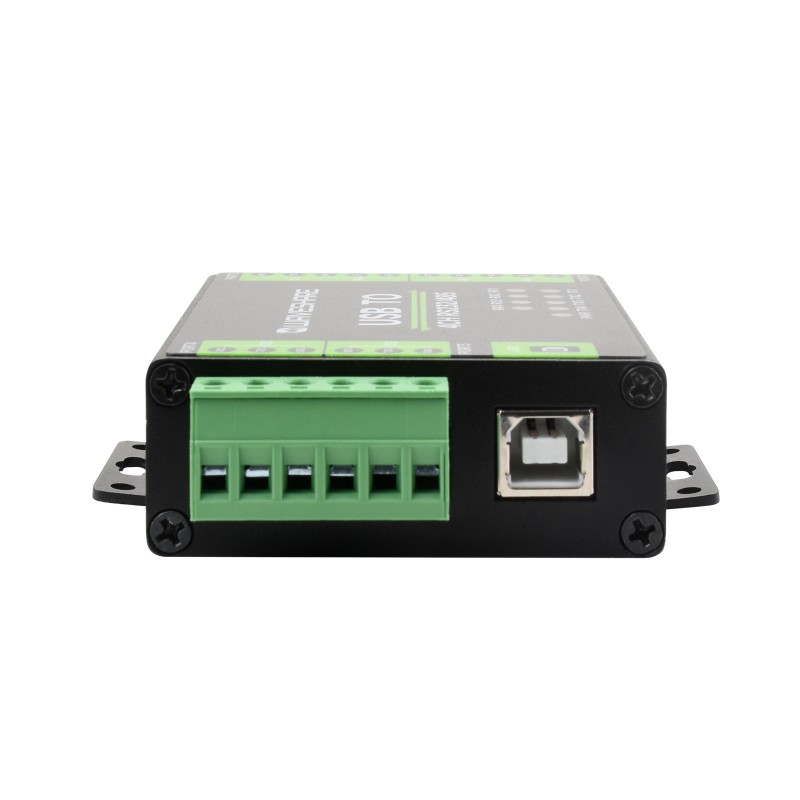

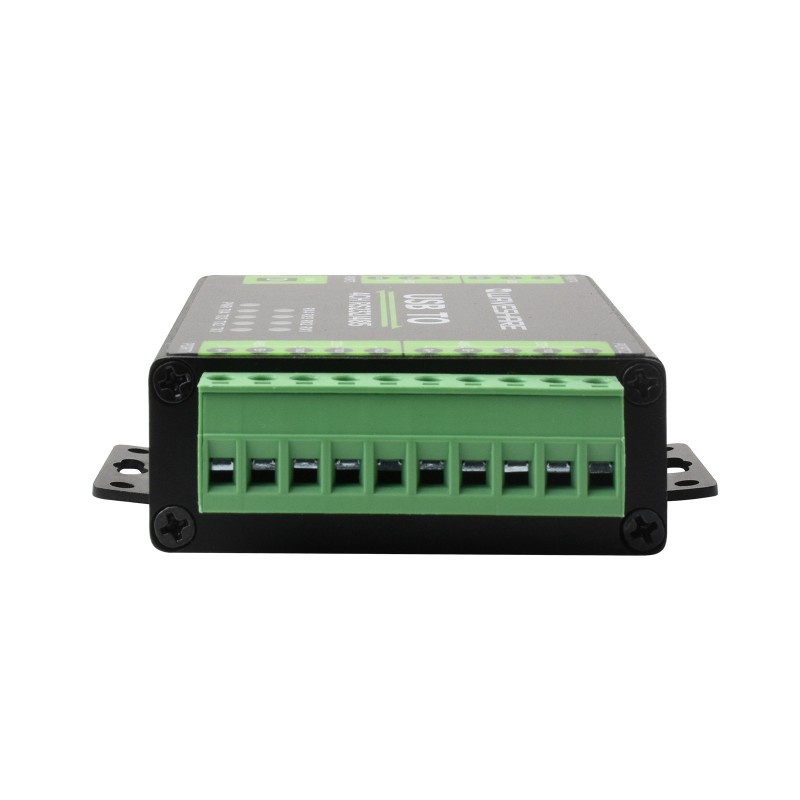

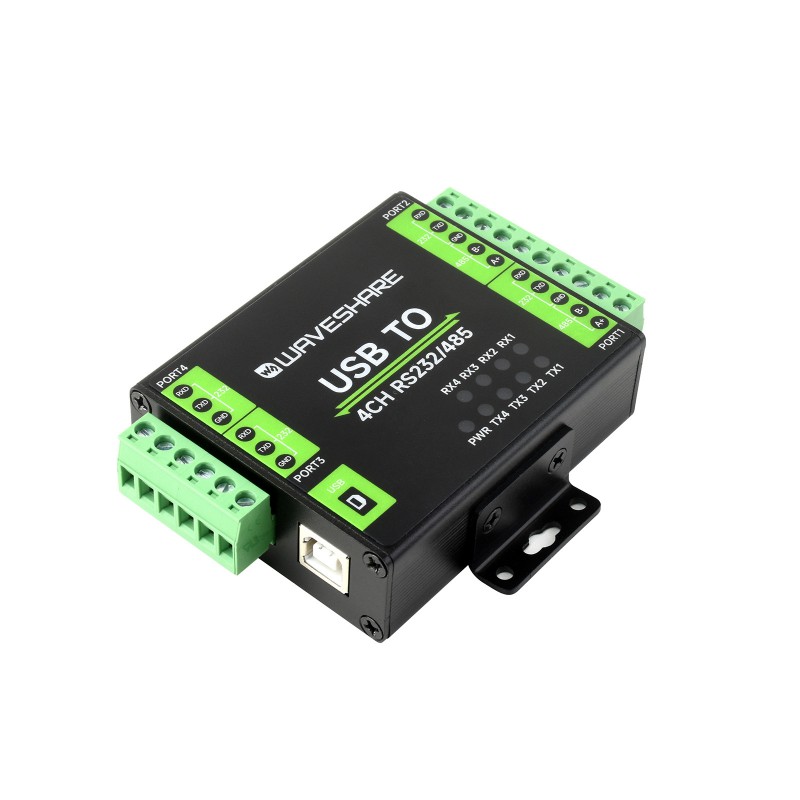

Industrial Isolated USB To RS232/485 Converter, Original FT4232HL Chip, Supports USB To 2-Ch RS232 + 2-Ch RS232/485

Industrial Isolated USB To RS232/485 Converter, Original FT4232HL Chip, Supports USB To 2-Ch RS232 + 2-Ch RS232/485

SKU:26681

Thương hiệu:Waveshare

(Chưa có bình luận)

998,000VND

Đặt hàng trước

Giá chưa bao gồm thuế giá trị gia tăng (VAT)

Sản phẩm được nhập khẩu chính hãng từ Waveshare

Hỗ trợ kỹ thuật trong quá trình sử dụng

Sản phẩm được bảo hành 06 tháng

Thông tin sản phẩm

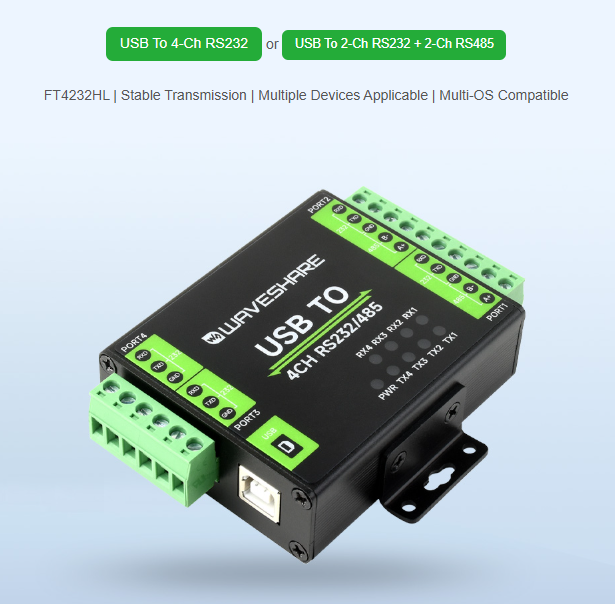

Industrial USB to 4-ch RS232/485 Converter

Name: Industrial Isolated USB To RS232/485 Converter, Original FT4232HL Chip, Supports USB To 2-Ch RS232 + 2-Ch RS232/485
Brand: Waveshare
SKU: 26681
Price: 998000 VND
Availability: InStock
Rating: 5 (1 reviews)

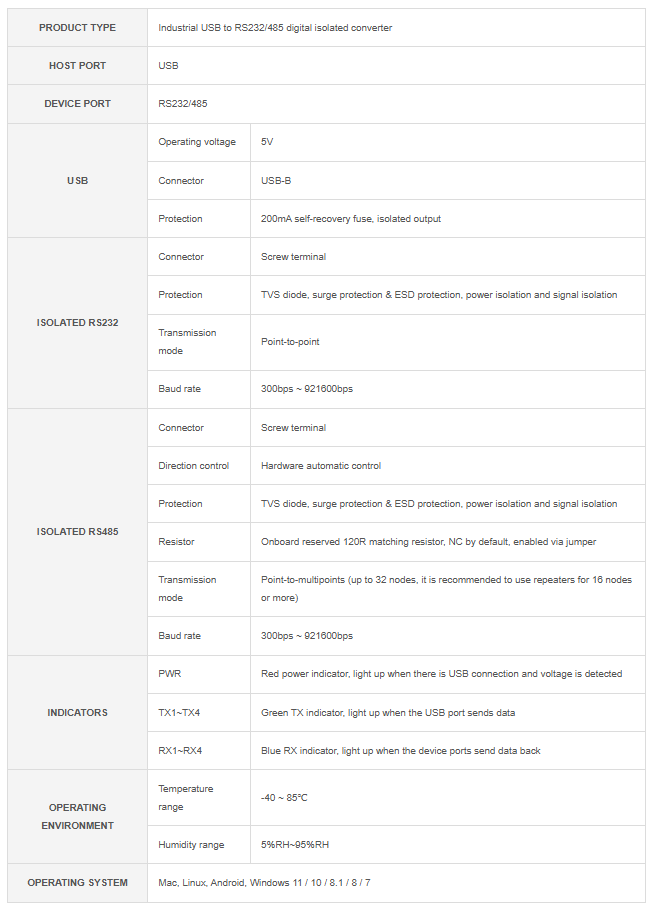

Specifications

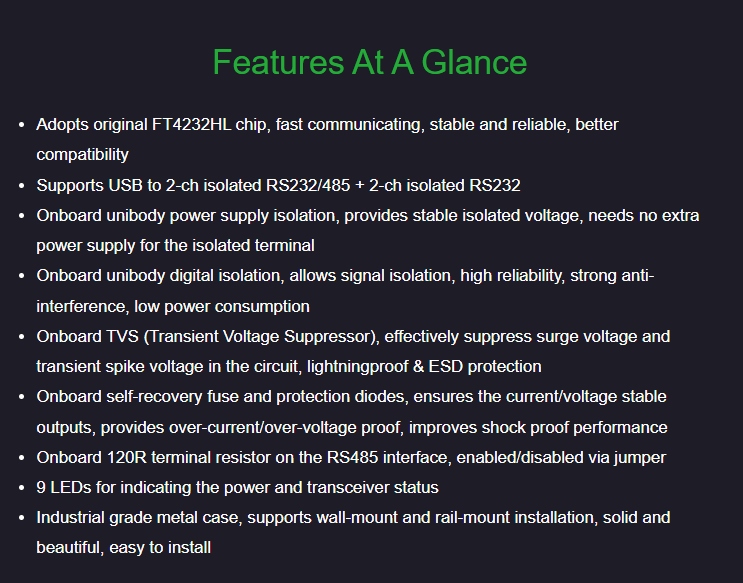

Basic Function

Supports USB to 4-ch multi-functional serial port, convenient for expanding or debugging various industrial serial port devices

Supports USB to 2-ch isolated RS232/485 + 2-ch isolated RS232

Original Industrial Grade Chip

Onboard original FT4232HL chip,
Fast communication, stable & reliable, better compatibility

Safer Isolated Design

Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal

Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption

Multiple Protection, Safe And Stable

Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection.

Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance.

Multi system Support

Supports Mac, Linux, Android, Windows 11 / 10 / 8.1 / 8 / 7, etc.

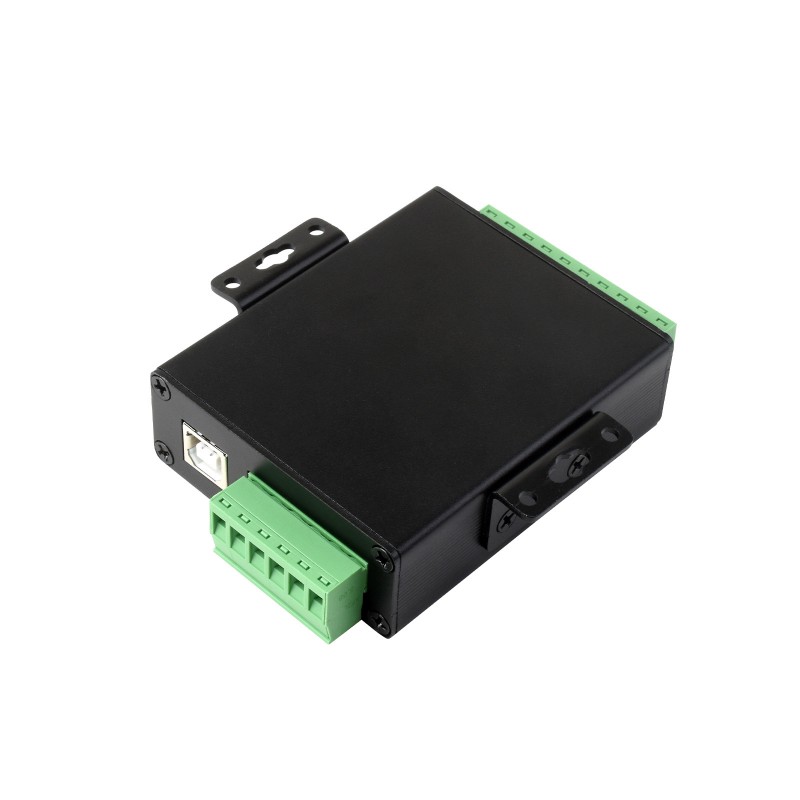

Aluminium Alloy Enclosure

Aluminium alloy enclosure with sand blasting and anodic oxidation,
Solid and durable; Wall-Mount & Rail-Mount Support, More flexible for industrial installation
