Giá chưa bao gồm thuế giá trị gia tăng (VAT)
Sản phẩm nhập khẩu chính hãng từ Waveshare
Hỗ trợ kỹ thuật trong suốt quá trình sử dụng
Sản phẩm được bảo hành 06 tháng

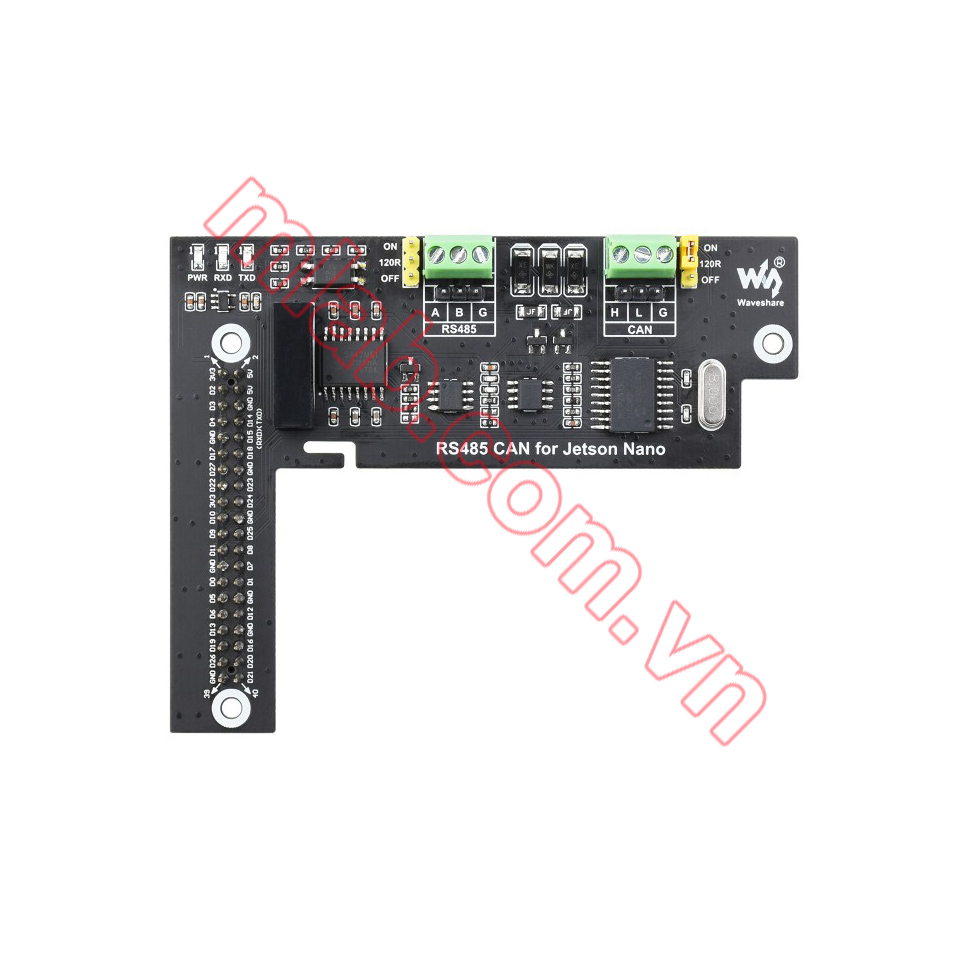

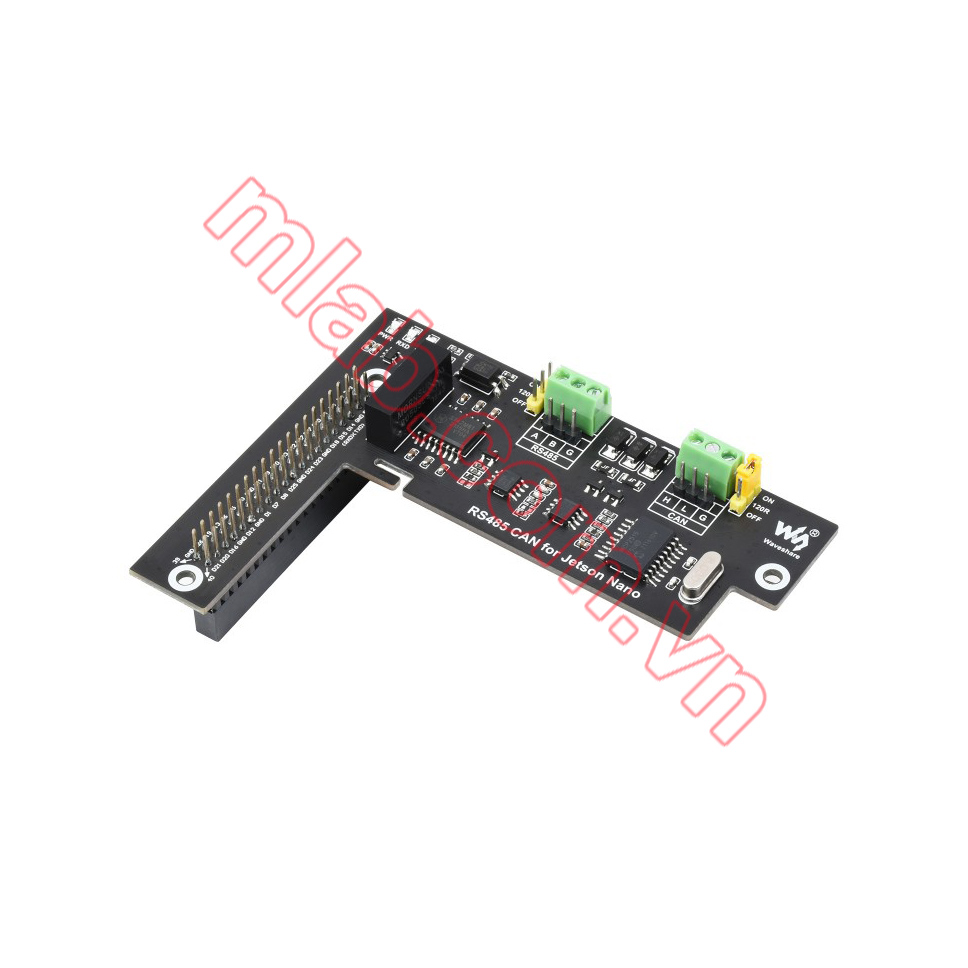

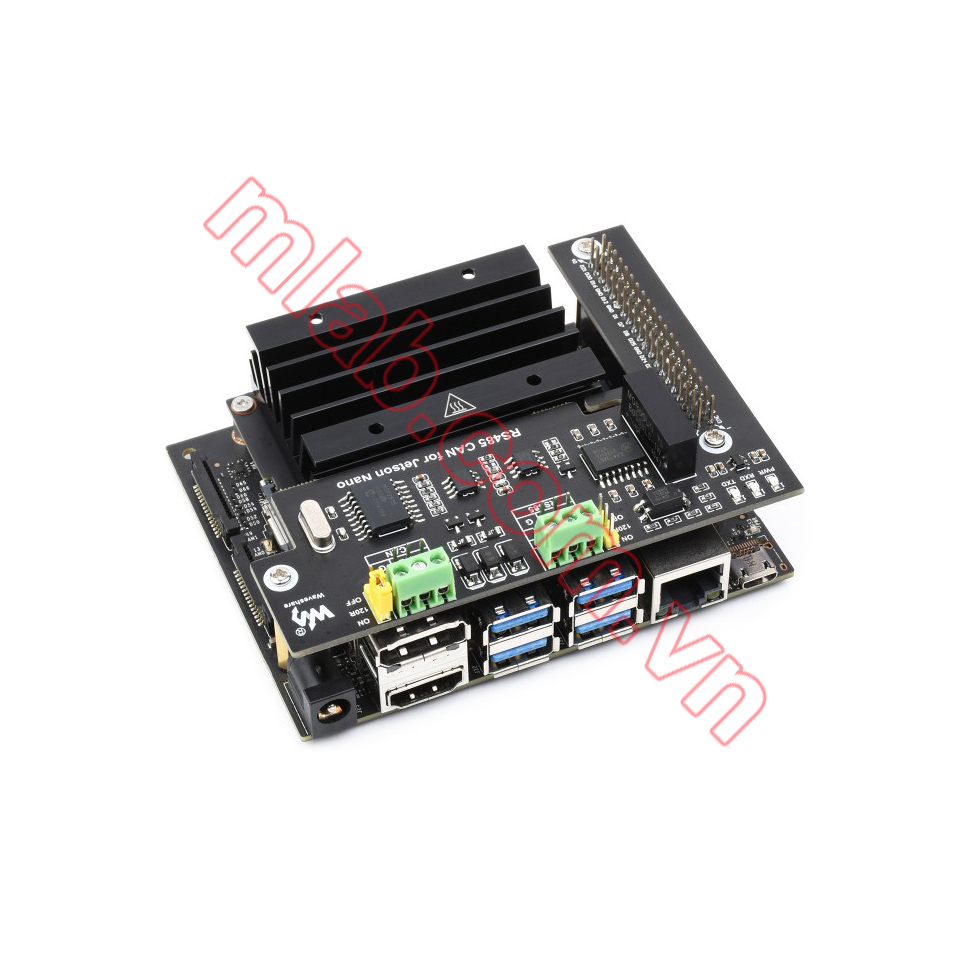

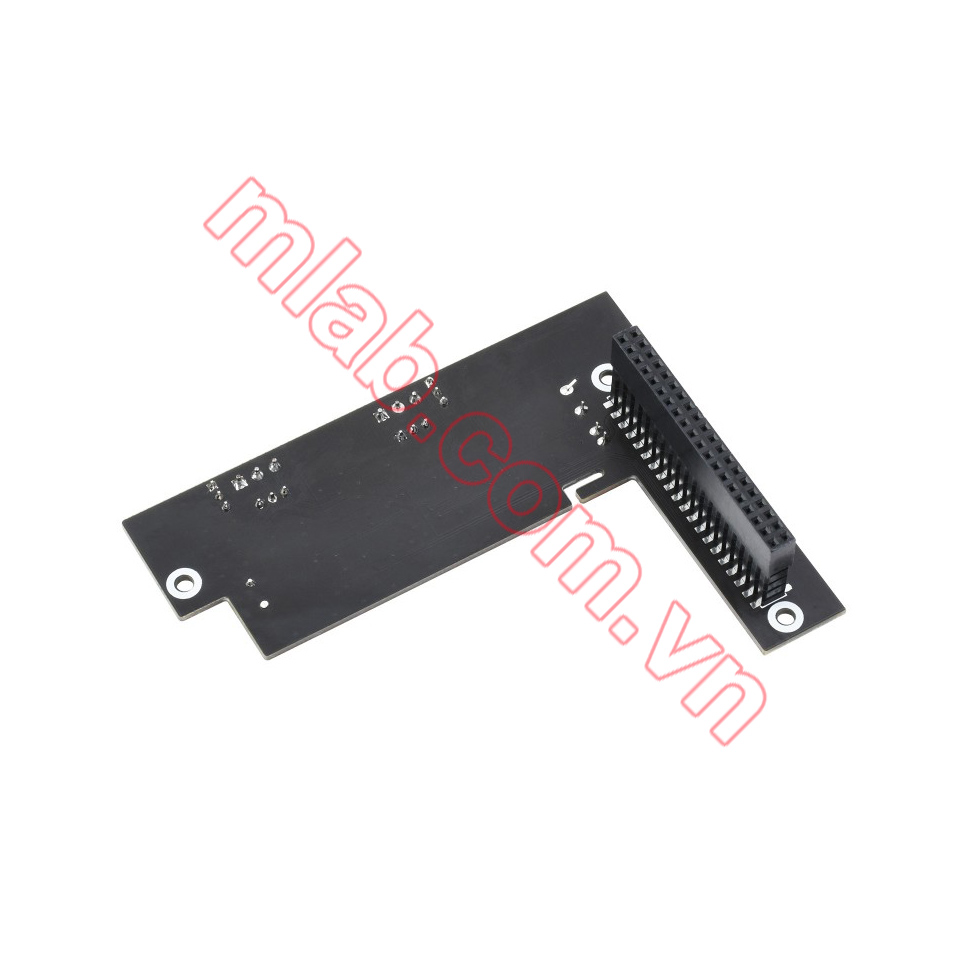

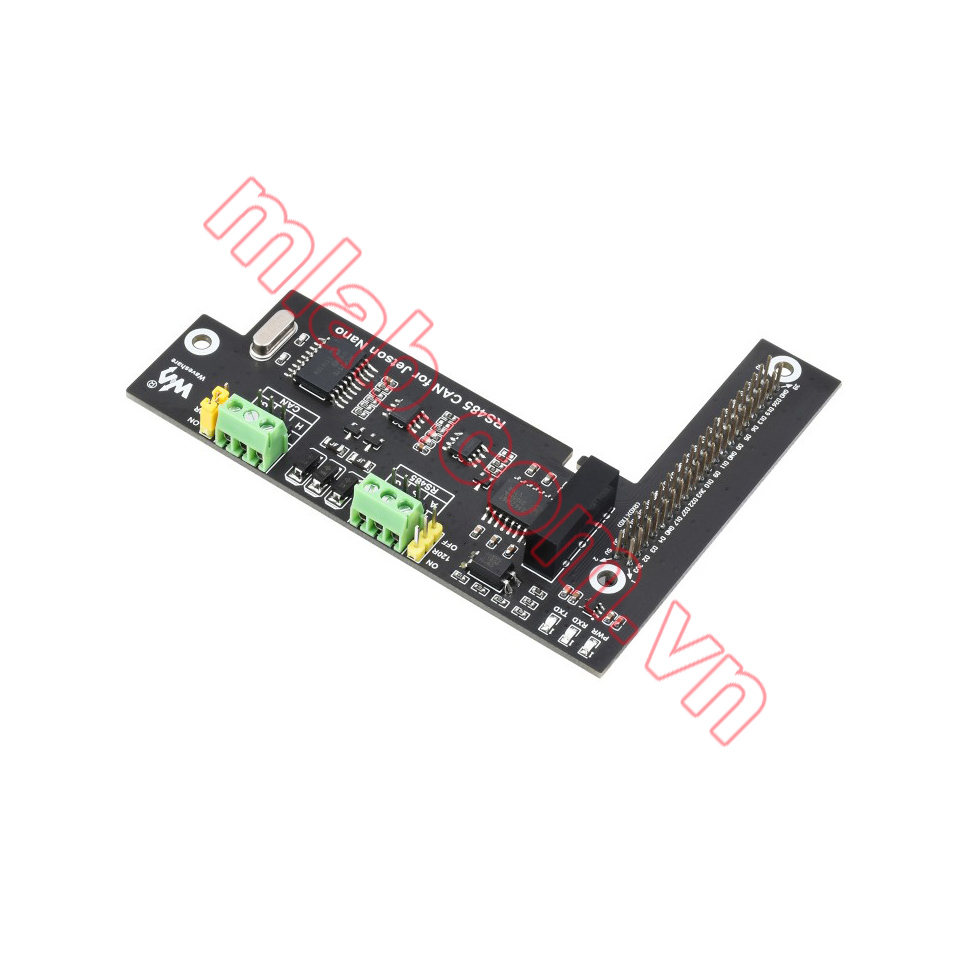

- Standard 40PIN GPIO extension header, supports direct attaching to Jetson Nano
- Onboard CAN controller MCP2515 via SPI interface, matching with SIT65HVD230DR transceiver
- Features RS485 function, controlled via UART, half-duplex communication, supports automatic TX/RX control without programming, onboard transceiver SP3485
- Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit for RS485 transceiving, lightningproof & anti-electrostatic
- Onboard digital isolation chip, safer signal isolation communication and better stability and anti-interference
- Reserved control pins, allows to work with other control boards
- Comes with development resources and manual (examples in python)
| CAN Controller | MCP2515 |
|---|---|
| CAN Transceiver | SIT65HVD230DR |
| RS485 Transceiver | SP3485 |
| Operating Voltage | 3.3V |
| Mounting hole size | 3.0mm |
| Dimension | 100 × 79mm |
Onboard SM24CANB Transient Voltage Suppressor(TVS), Prevent The Damage Of Static electricity, Surge Voltage and Transient Peak Voltage, Making RS485 Communication More Stable And Safer
