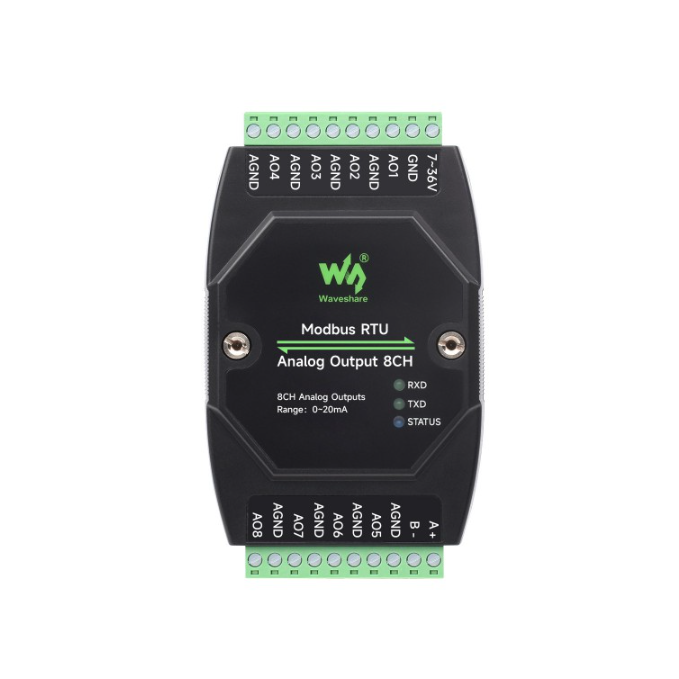

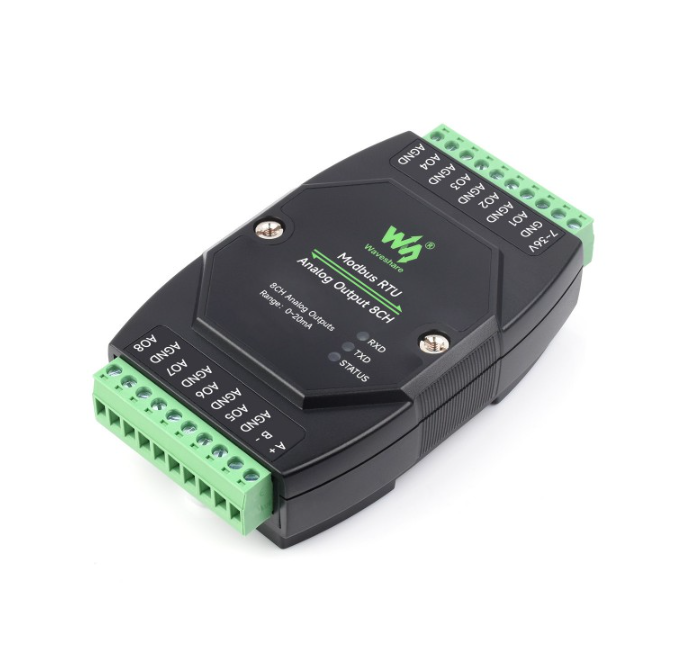

Industrial 8-ch analog Output module

12-bit DA Conversion | DC 7~36V Wide Voltage Power Supply | Modbus RTU Protocol | Multiple Isolation Protection Circuits

Modbus RTU Analog Output 8CH is an industrial standard analog output module, supports 8-ch simultaneous output. Adopts Modbus RTU protocol with built-in protection circuits such as power isolation, magnetical isolation, resettable fuse, and TVS.

• Configurable device address (1~255), multi devices can be cascaded on RS485 bus
• Onboard voltage regulator, supports 7~36V wide range power supply
• Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
• Onboard unibody magnetical isolation, allows signal isolation, high reliability, strong anti-interference
• Onboard resettable fuse and TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, provides over-current/over-voltage proof, lightningproof & anti-electrostatic
• 12-bit DA conversion, using high-precision resistors for more accurate output data
• Onboard watchdog, for stable output without crashing

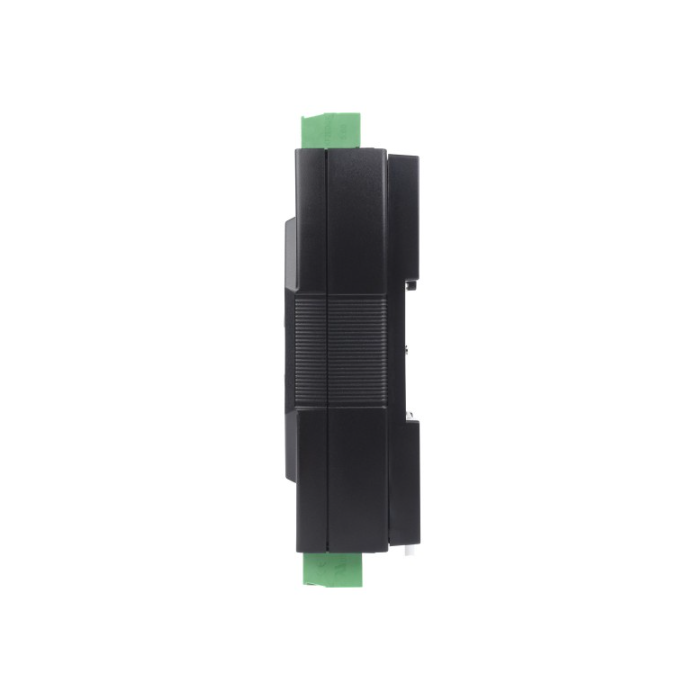

• Rail-mount case design, support stacking combination, easy to install and safer to use
• 3x LEDs for indicating the MCU status and signal transceiving status

Supports sending Modbus RTU protocol commands via RS485
And outputing data to 0~10V or 0~20mA sensor

Onboard power and signal dual isolation for RS485 communication, provides stable isolation voltage, features high reliability and strong anti-interference performance. Built-in TVS (transient voltage suppression tube) can effectively suppress the surge voltage and transient peak voltage in the circuit, lightningproof & ESD protection. Built-in resettable fuse and protection diode to ensure stable current and voltage output, provides over-current and over-voltage proof, improves shock-proof performance, suitable for industrial environments with high requirement.

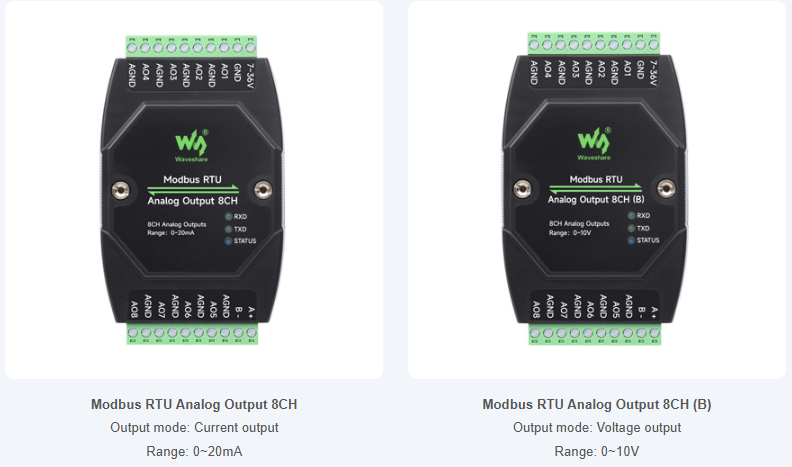

Note: The internal component layout is slightly different between the two
versions, please refer to the actual product

8-Ch Analog Output, 12-bit DA Conversion, High-precision

Supports setting device address (1~255) for Multi-Device Cascading,

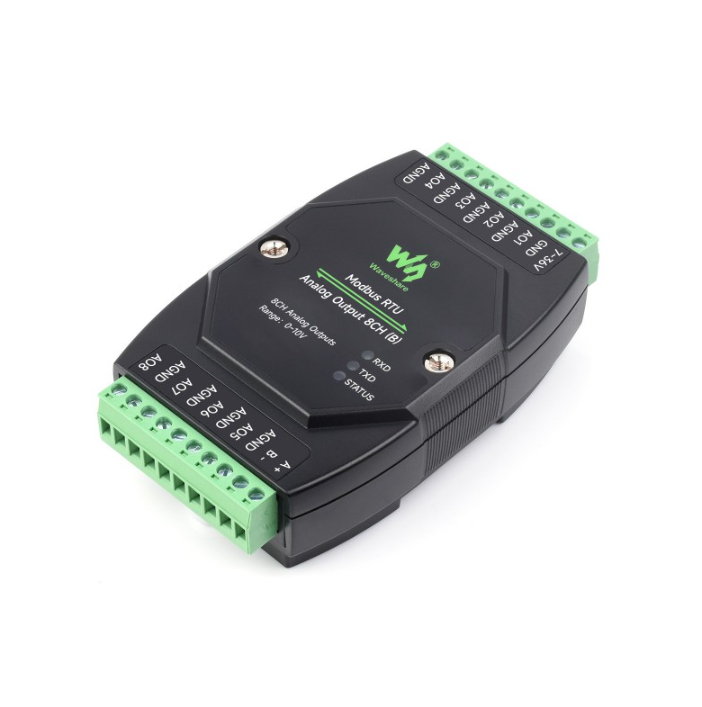

Supports voltage or current analog output

Built-in fuse and anti-reverse protection, With Power and Signal Dual Isolation

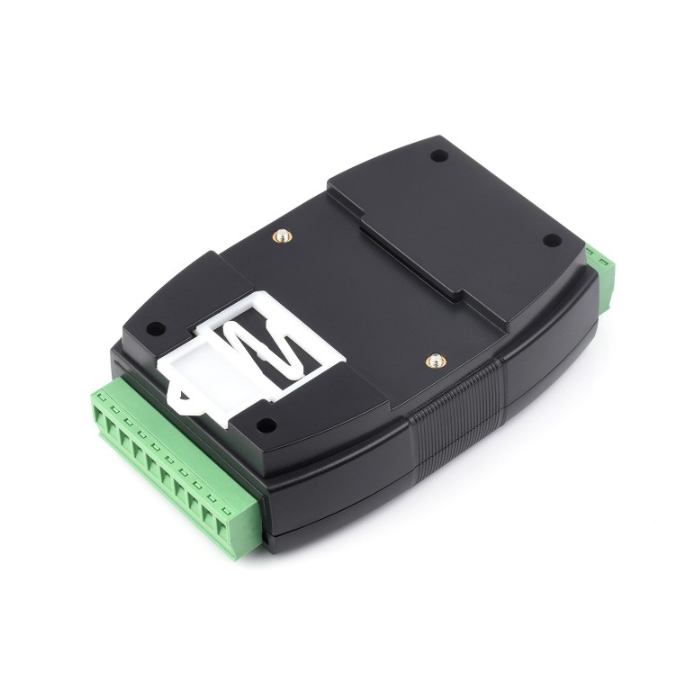

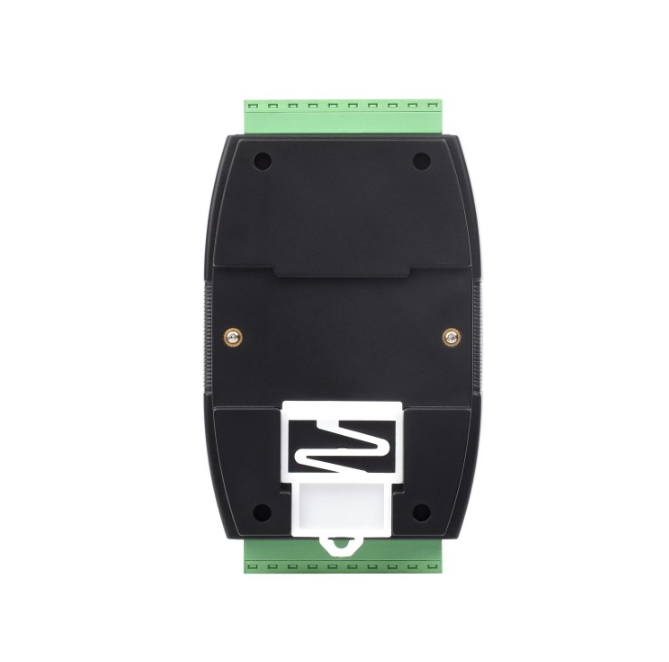

Supports 35mm standard guide rail, with rail-mount buckle, easy to install.
