GROW GM72G 1D 2D Bardcode Reader
Description
1. USB wired barcode scanner to capture 1D, 2D code on labels, paper, mobile phone or computer.
2. High-efficiency recognization and high upload speed for improving your working efficiency.
3. With buzzer for reminding you that the scanning successfully or not.
4. Compatible with USB and UART interface.
5. Over 180 configurable options
6. Macro support replace a string in the bar code with another
7. Programmable preamble postamble and termination strings
8.Superior reading performance utilizing advanced decoding algorithms
Specifications
Decoding Ability:
+ 1D: EAN-13, EAN-8, UPC-A, UPC-E ISSN, ISBN, CodaBar, Code 128, Code93, ITF-14, ITF-6, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 39, Code 11, MSI-Plessey, GS1 Composite, GS1-Databar (RSS) .
+ 2D: QR Code, Data Matrix, PDF417
Electrical Parameters:
+ Sensor: CMOS
+ Interface: TTL-232, USB
+ Scan Mode: 640*480 CMOS
+ Operating Voltage: 5V
+ Operating Current: ≤70mA
+ Accuracy of reading: ≥ 10mil
+ Weight: 30g
+ Dimension: 65(W)×61(D)×28(H)mm
+ Viewing Angle: Horizontal angle: 67°, Vertical angle: 53°
+ Scanning angle: Roll:0-360°, Pitch:±65°or greater, Yaw:±65°or greater
+ Reading Distance: 5~30cm
+ Contrast: ＞25%
+ Operating Temperature: -20℃~+60℃
+ Storage Temperature: -40℃~+70℃
+ Operating Humidity: 5%~95% (Non-Condensing)
+ Environmental Light: Normal indoor light source

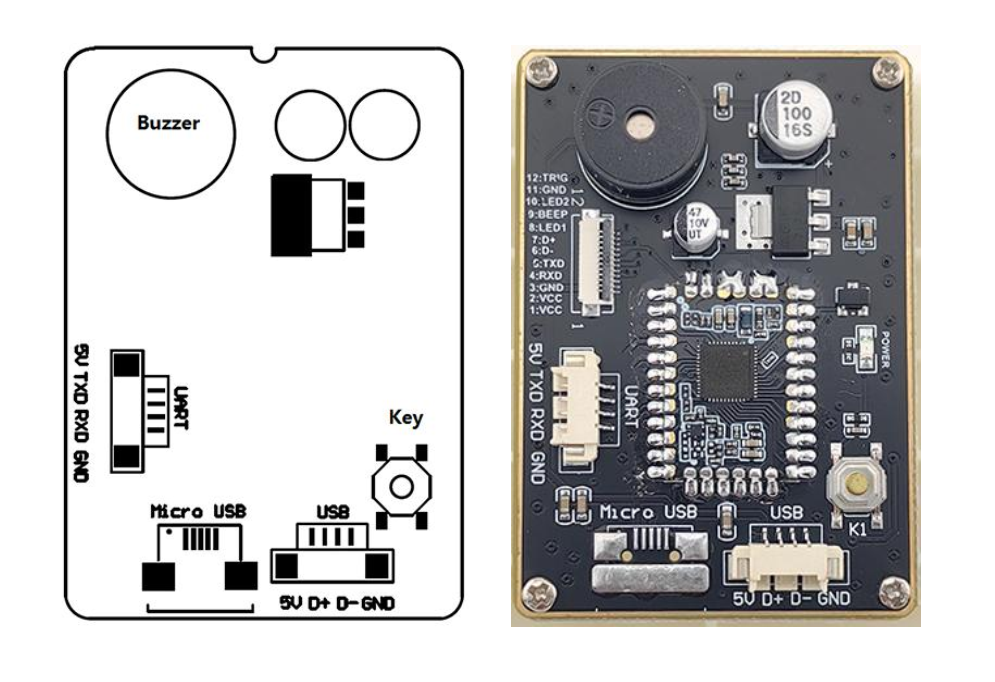

Circuit Board Diagram
![]()

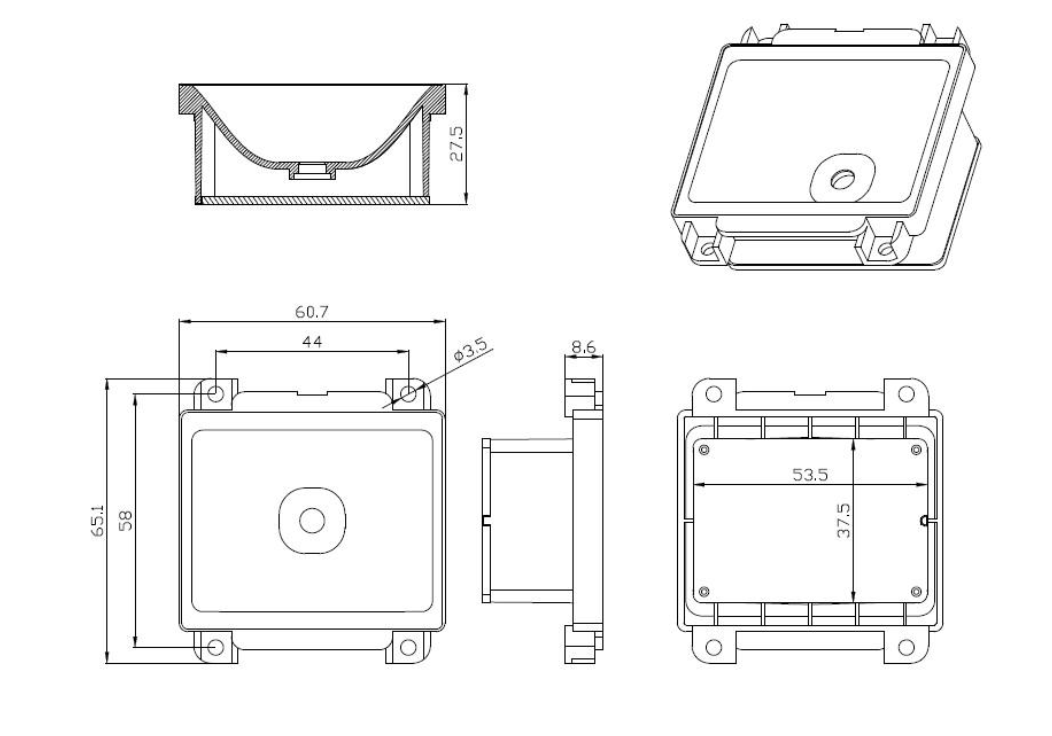

Dimension
![]()
