Gravity I2C IP68 Waterproof Ambient Light Sensor (1-65535lx)

An ambient light sensor is a type of sensor that measures the amount of light in the surrounding environment. These sensors can be used in various applications, including lighting and backlighting control and ambient light sensing.

It is also used in greenhouses to assess the exposure of plants to light and ensure they are getting enough light for optimal growth.

This waterproof digital ambient light sensor is designed to deliver accurate measurements of light intensity within the range of 1-65535lx. It incorporates a 50Hz/60Hz light noise reject function that ensures stable and reliable performance.
With an easy-to-use Gravity interface and I2C communication, the ambient light sensor is incredibly user-friendly for using with main-controllers like Arduino UNO. Plus, the sensor features an IP68 waterproof rating, which means it can be fully immersed in water without suffering any damage. This makes it perfect for outdoor projects that require reliable light measurement in harsh environments, such as vegetable greenhouses, smart car lights, and weather stations.

Brightness Reference:

• Nighttime: 0.001-0.02 lx
• Moonlit night: 0.02-0.3 lx
• Cloudy indoor: 5-50 lx
• Cloudy outdoor: 50-500 lx
• Sunny indoor: 100-1000 lx
• Summer noon sunlight: about 10*6 lx
• Illuminance for reading books: 50-60 lx
• Standard illuminance for home video: 1400 lx

Board Overview

Waterproof Digital Ambient Light Sensor Introduction

This waterproof digital ambient light sensor is designed to deliver accurate measurements of light intensity within the range of 1-65535 lx. It incorporates a 50Hz/60Hz light noise rejection function that ensures stable and reliable performance.

With an easy-to-use Gravity interface and I2C communication, the ambient light sensor is incredibly user-friendly for use with microcontrollers like the Arduino UNO. Plus, the sensor features an IP68 waterproof rating, which means it can be fully immersed in water without suffering any damage. This makes it perfect for outdoor projects that require reliable light measurement in harsh environments, such as vegetable greenhouses, smart car lights, and weather stations.

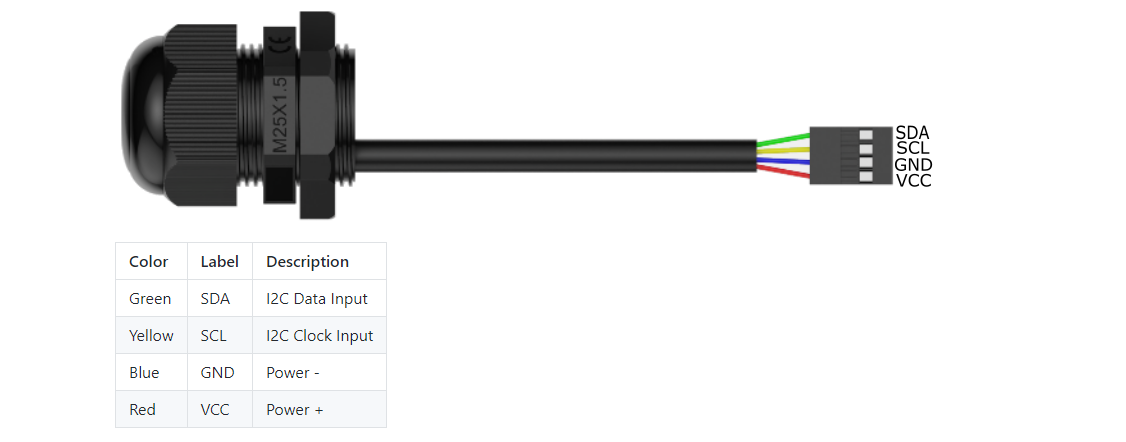

Wiring Diagram of Gravity: I2C Waterproof Ambient Light Sensor and Arduino Uno

• Low power consumption
• IP68 waterproof rating
• I2C Communication

• Greenhouses
• Smart car lights
• Weather stations

• Supply Voltage: 5V
• Operating Current: 1µA
• Detection Range: 1 - 65535lx
• Accuracy: 1.2lx
• Communication Mode: I2C
• Operating Temperature: -40 to 85°C/-40 to 185℉
• Waterproof Rating: IP68
• Thread Length: 10mm
• Cutout Size: 26mm
• Wrench Size: 31mm
• Cable Diameter: 3mm
• Wire Length: 1m

• Product wiki

• Gravity: I2C Waterproof Ambient Light Sensor (1-65535lx) × 1
