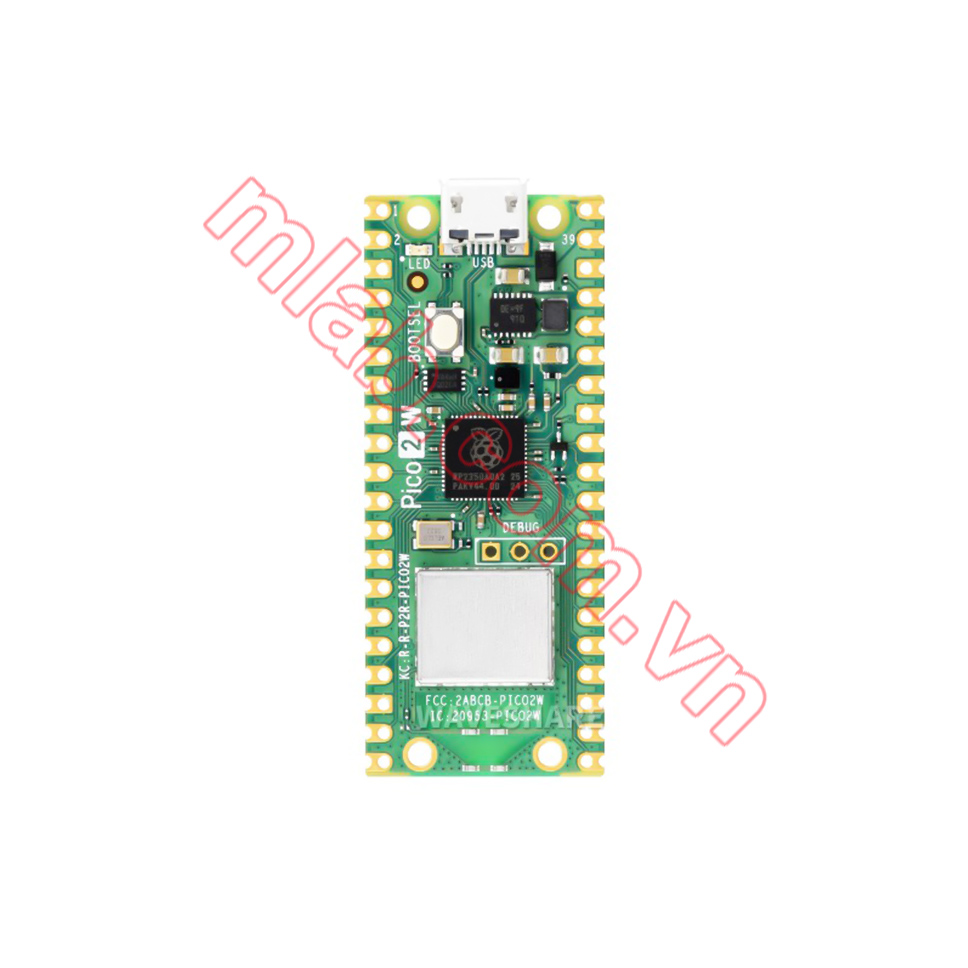

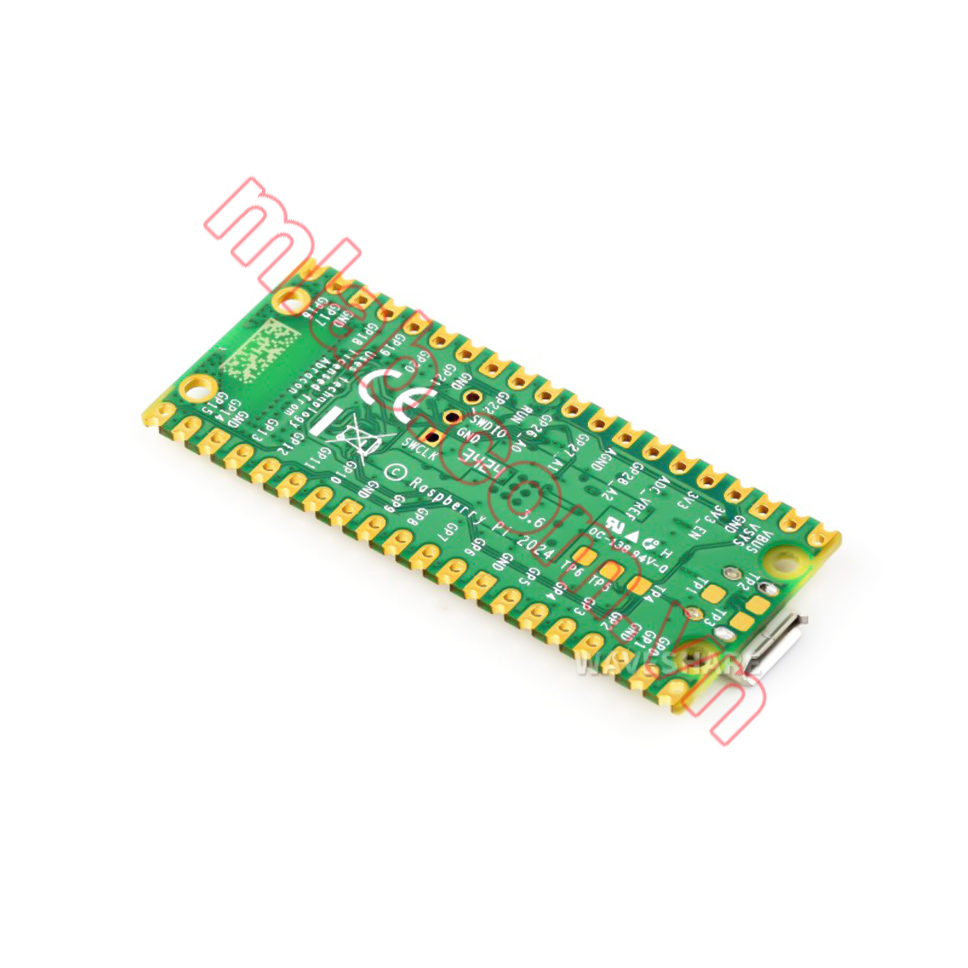

Raspberry Pi Pico 2 W is a low-cost, high-performance microcontroller board with flexible digital interfaces. Upgraded hardware from Pico 2 with wireless communication, onboard antenna, features 2.4GHz 802.11n WIFI and Bluetooth 5.2.

Key features include:

• Dual Arm Cortex-M33 or dual Hazard3 RISC-V processors @ 150MHz

  520 KB on-chip SRAM

  2.4GHz 802.11n wireless LAN and Bluetooth 5.2 (Raspberry Pi Pico 2 W only)

  Software- and hardware-compatible with Raspberry Pi Pico 1

  Drag-and-drop programming using mass storage over USB

  Castellated module allows soldering direct to carrier boards

  Robust and fully documented security features:

  • ARM TrustZone for Cortex-M
  • Optional boot signing, enforced by on-chip mask ROM, with key fingerprint in OTP
  • Protected OTP storage for optional boot decryption key
  • Global bus filtering based on Arm or RISC-V security/privilege levels
  • Peripherals, GPIOs, and DMA channels individually assignable to security domains
  • Hardware mitigations for fault injection attacks
  • Hardware SHA-256 accelerator

  2 × UART

  2 × SPI controllers

  2 × I2C controllers

  24 × PWM channels

  3 x ADC channels

  1 × USB 1.1 controller and PHY, with host and device support

  12 × PIO state machines

  Open source C/C++ SDK, MicroPython support

  Operating temperature -20°C to +85°C

  Supported input voltage 1.8–5.5V DC

C/C++, MicroPython support

Comprehensive SDK, dev resources, tutorials to help you easily get started

Dual-core, dual-architecture

The unique dual-core, dual-architecture capability of RP2350 allows users to choose between a pair of industry-standard Arm Cortex-M33 cores, and a pair of open-hardware Hazard3 cores, giving developers a chance to experiment with the RISC-V architecture in a stable, well-supported environment

WIFI and Bluetooth Support

Onboard Infineon CYW43439 wireless chip, supports WIFI 4 wireless and Bluetooth 5.2

26×multi-function GPIO pins

configurable pin function, allows flexible development and integration

Outline dimensions
