Giá chưa bao gồm thuế giá trị gia tăng (VAT)
Power Over Ethernet HAT for Raspberry Pi 3B+/4B, 802.3af-compliant.
Sản phẩm nhập khẩu chính hãng Waveshare
Hỗ trợ kỹ thuật trong suốt quá trình sử dụng
Sản phẩm được bảo hành 6 tháng

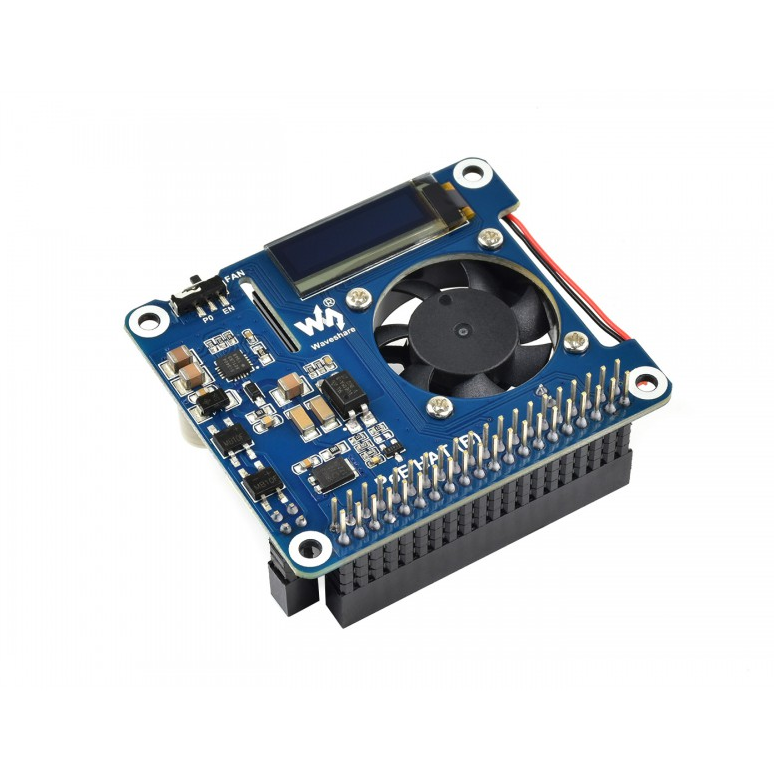

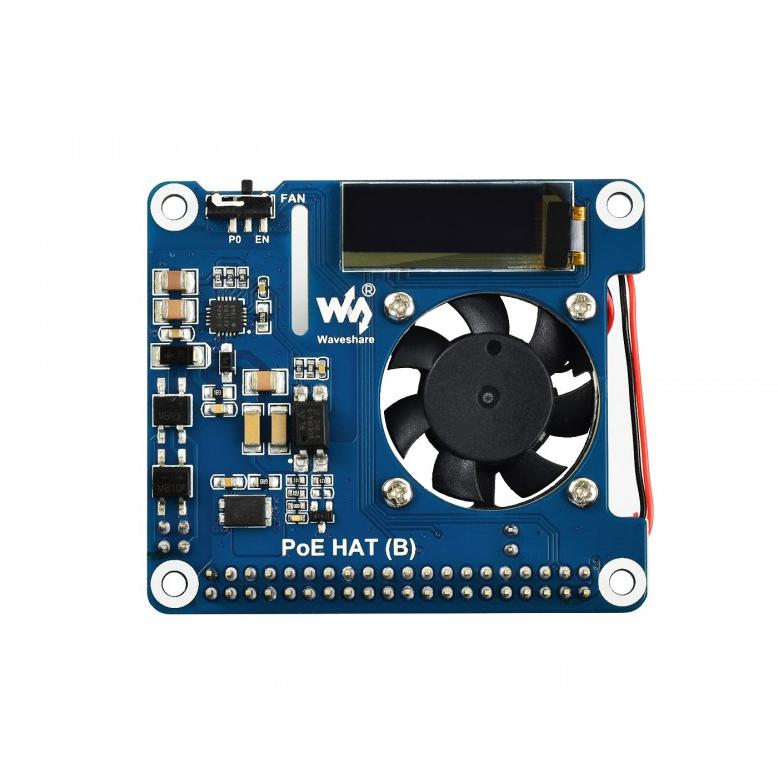

Power Over Ethernet HAT for Raspberry Pi 3B+/4B, 802.3af-compliant
(any backward-compatible future versions will be supported as well)

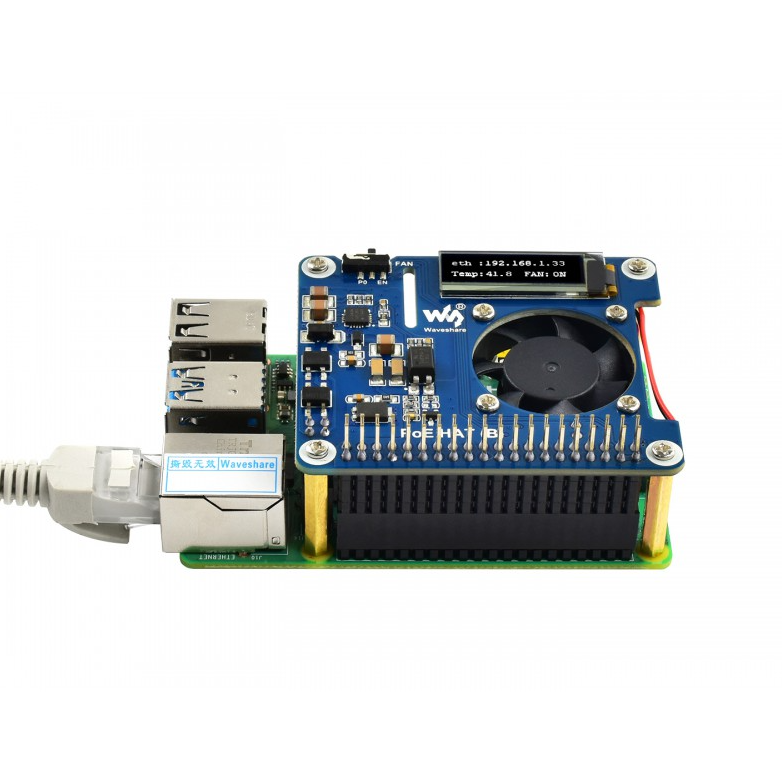

OLED for real-time monitoring temperature, IP, and fan status
| PoE power input | 37V ~ 57V DC in | OLED size | 0.91" |
|---|---|---|---|
| PoE power output | 5V 2.5A DC out | OLED pixels | 128×32 |
| Network standard | 802.3af PoE | OLED driver | 1306 |
| Dimensions | 56.5 × 65mm | OLED display color | white |
Standard Raspberry Pi 40PIN GPIO stackable header, allows connecting other HATs
providing both network connection and power supply for your Raspberry Pi in one cable
* proper 802.3af-compliant power sourcing equipment is required
128 × 32 pixels, I2C-bus controlled
monitoring processor temperature, IP address, fan status in real-time
Allows auto running on powerup OR programmable control, configured by switch
Automatically turn on/off depending on the Raspberry Pi processor temperature
PCF8574 IO expander for I2C bus, providing 8 IO pins, of which P0 for fan control
and extra spare pins on solder pads (P1-P7, INT)
