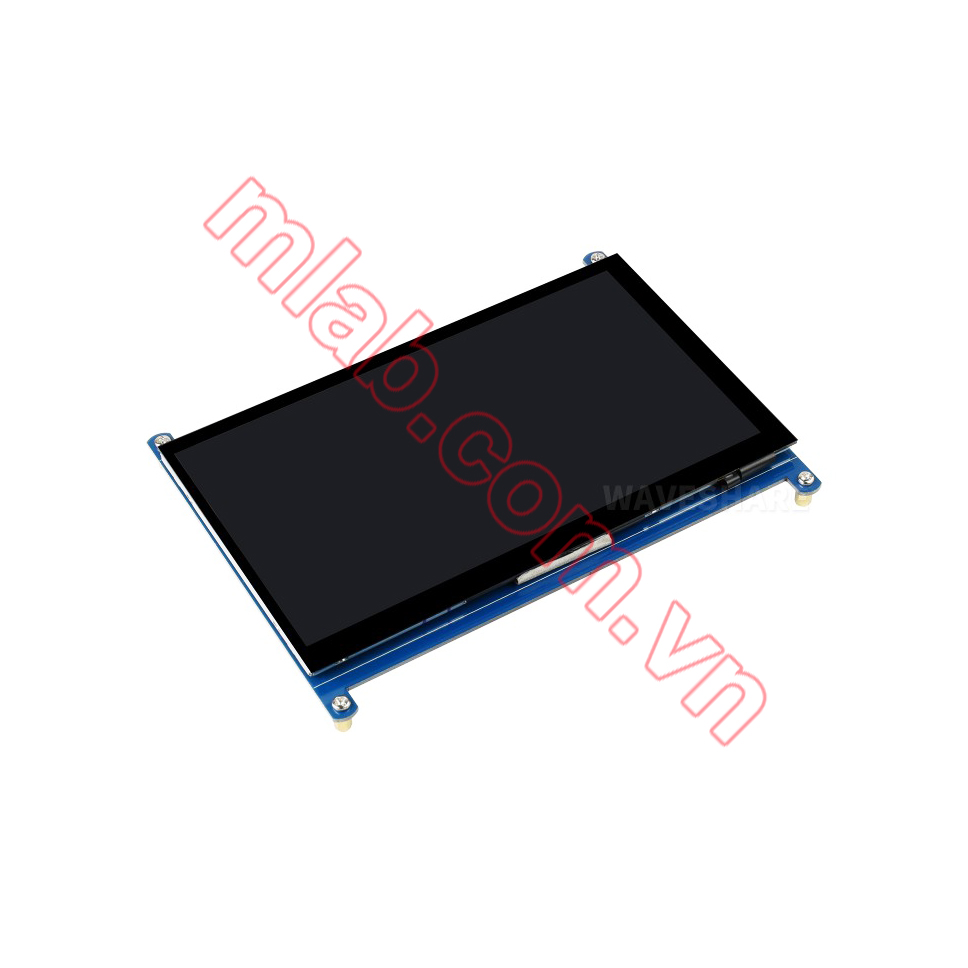

7inch Capacitive Touch Screen LCD (C), 1024×600, HDMI, IPS, Low Power Consumption

7INCH HDMI Touch Display

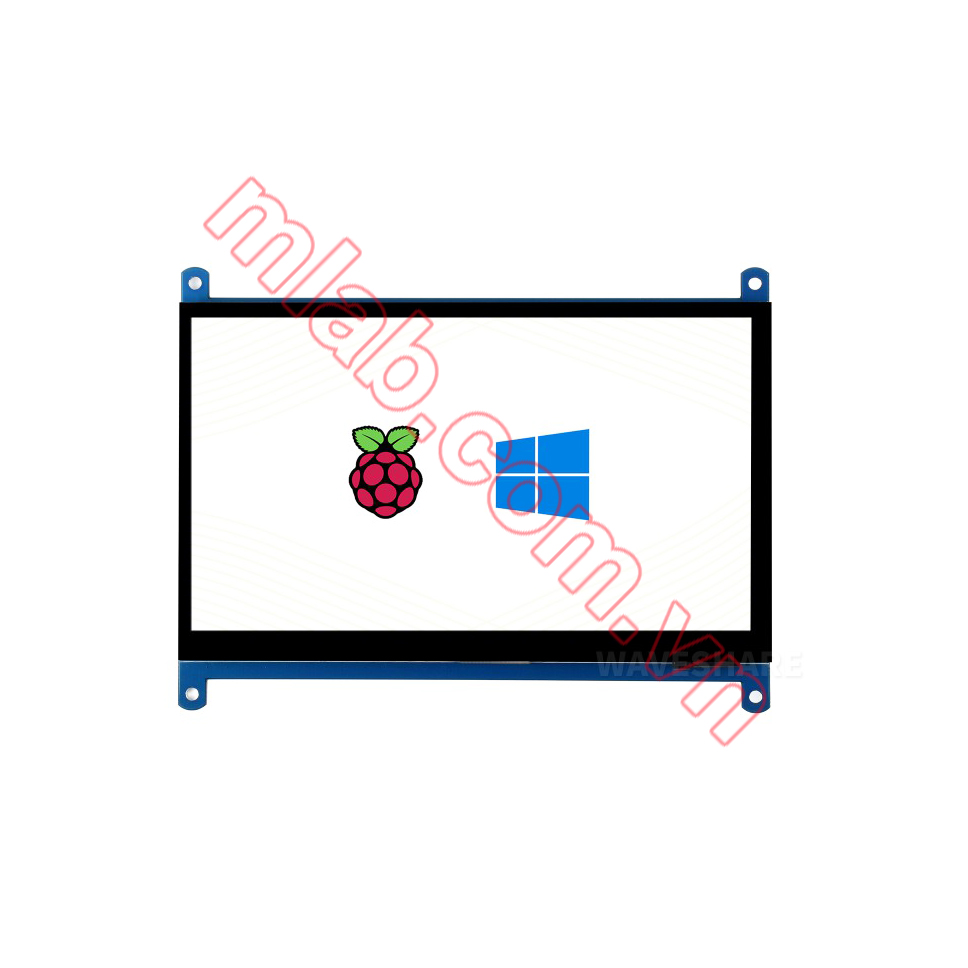

Device & System Support

Connection Examples

Working with Raspberry Pi 4

Working with Raspberry Pi 3B+

Working with Raspberry Pi Zero W

Working with mini PC

Display

IPS Panel

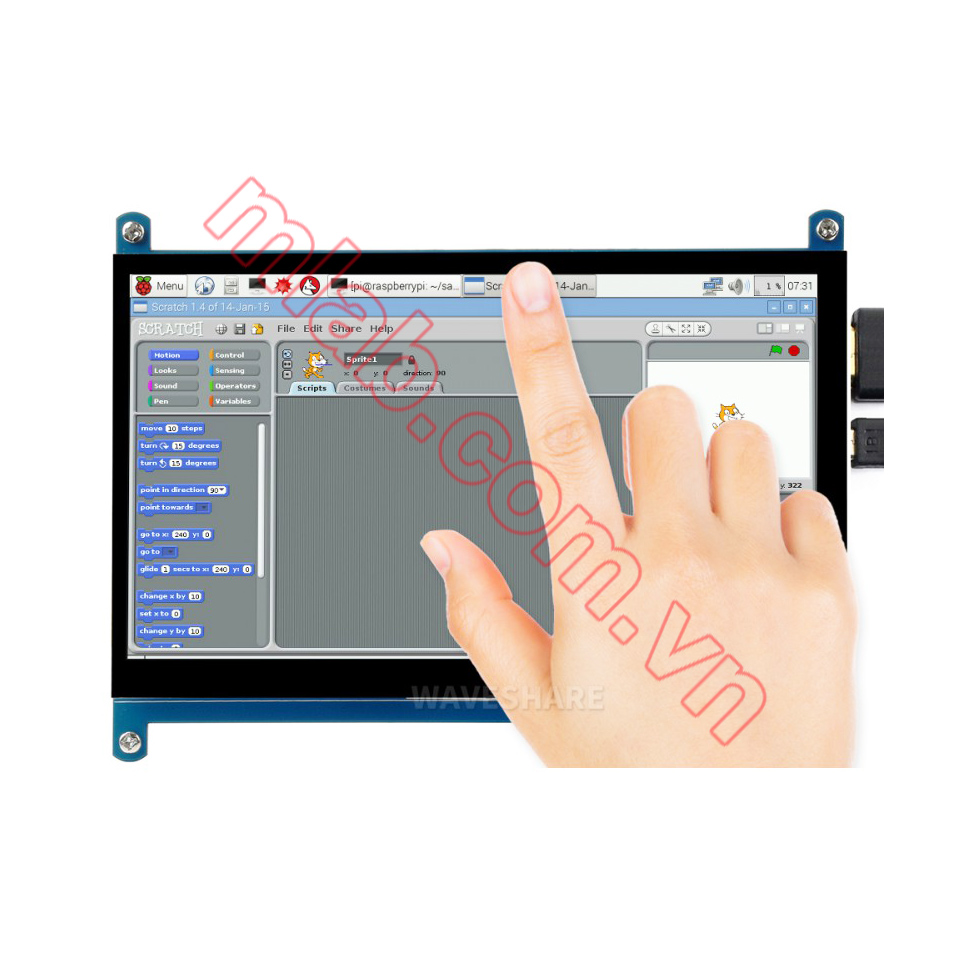

Touch Control



1) up to 5-points touch, depending on the operating system.

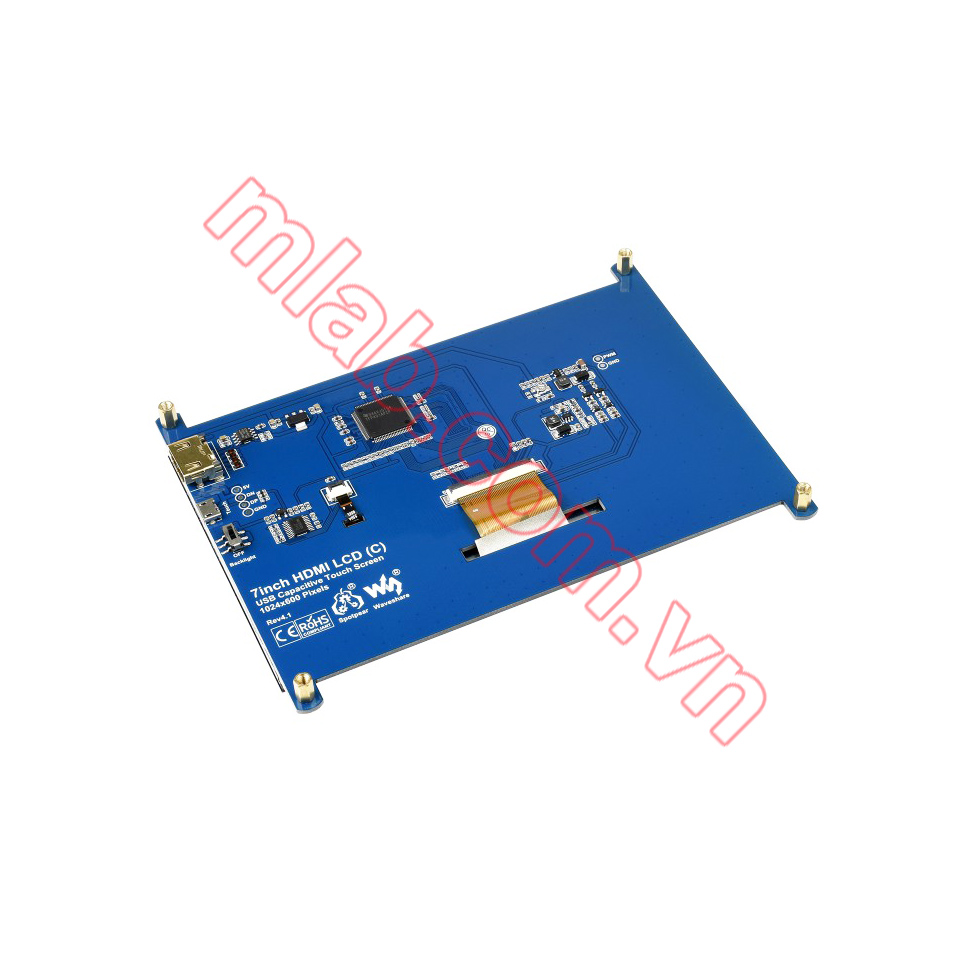

Demystifying Design Details

1. LCD FFC cable anti-interference design, more stable for industrial application
2. EMI and ESD protection, in compliance with CE certification
3. VCOM voltage adjustment for optimizing display effect
4. USB protocol translator, converting the touch signal into standard multi-points touch protocol to achieve smooth multi-points touch control
5. USB and power input solder pads, breakout USB interface, easy for connecting external power supply
6. Backlight adjustment solder pads for PWM signal input, so as to control the backlight brightness, increasing the lifetime of the display

Appearance and Dimensions

Wiki: www.waveshare.com/wiki/7inch_HDMI_LCD_(C)
