    Màn hình HMI ESP32-S3 5inch, Cảm ứng điện dung, 5-Point Touch, 32-Bit LX7 Dual-Core Processor

    ESP32-S3 5inch Capacitive Touch Display Development Board, 5-Point Touch, 32-Bit LX7 Dual-Core Processor, Up To 240MHz Frequency, Supports WiFi & Bluetooth, With Onboard Antenna, Options For 800×480/1024x600 Display Resolution



    ESP32-S3-Touch-LCD-5

    Integrates RGB interface LCD with 5-point capacitive touch, multiple peripheral interfaces

     ESP32-S3 5inch Capacitive Touch Display Development Board, front view and features




    Features

    This product is a microcontroller development board with 2.4GHz WiFi and BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 5inch capacitive touch screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications

    • Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
    • Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
    • Built in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM

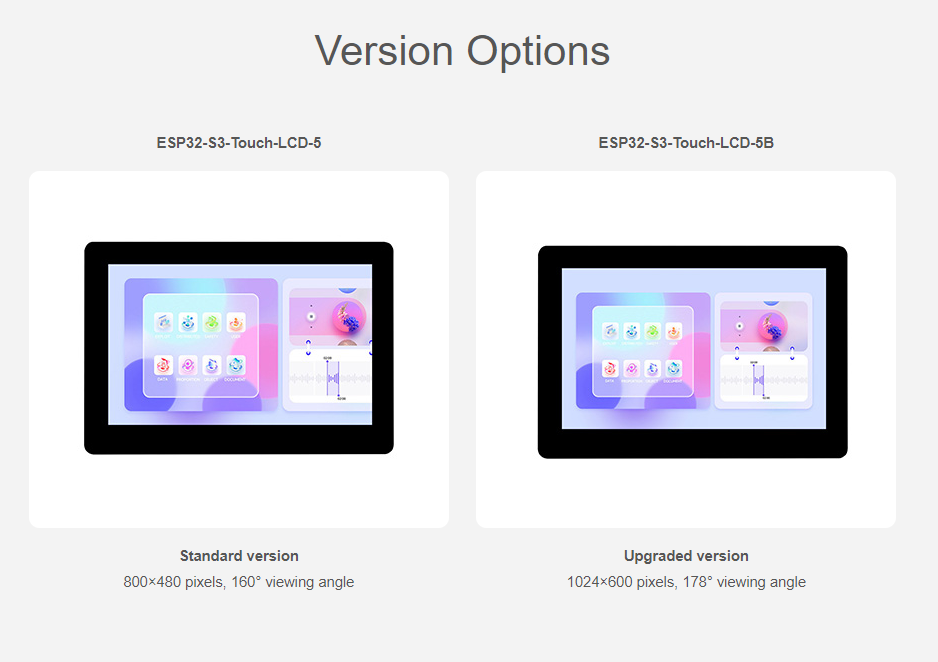

    • Onboard 5inch capacitive touch display, options for 800×480/1024x600 resolution, 65K color
    • Supports capacitive touch control via I2C interface, 5-point touch with interrupt support
    • Onboard voltage regulator, supports 7~36V wide range power supply
    • Onboard RTC chip and rechargeable battery to ensure time data is not lost when power loss
    • Onboard CAN, RS485, I2C interface and TF card slot, GH1.25 2P battery header and digital isolated IO interfaces, etc.
    • Supports passive and active digital input, with bi-directional optocoupler isolation
    • Supports digital output with optocoupler isolation, provides higher driving capability with up to 450mA sinking current
    • Onboard LED indicators for indicating the power and battery recharging status
    • Supports flexible clock, module power supply independent setting and other controls to realize low power consumption in different scenarios


    Application Scenarios
    ESP32-S3 5inch Capacitive Touch Display Development Board, application scenarios

    IPS Display Panel

    Excellent display performance, 178° wide viewing angle *

    ESP32-S3 5inch Capacitive Touch Display Development Board with IPS display panel

    * 178° viewing angle for the Upgraded Version, and 160° for the Standard Version


    Capacitive 5-point touch

    supports touch function with I2C interface, 5-point touch for flexible operation and smooth multi-point UI interaction

    ESP32-S3 5inch Capacitive Touch Display Development Board with capacitive 5-point touch

    Supports multiple peripherals

    Supports the expansion of multiple peripherals via CAN, RS485, I2C and isolated IO interfaces

    ESP32-S3 5inch Capacitive Touch Display Development Board, supports multiple peripherals

    What's On Board
    ESP32-S3 5inch Capacitive Touch Display Development Board, onboard components
    1. ESP32-S3-WROOM-1-N16R8
      The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, integrated 8MB PSRAM and 16MB Flash
    2. TF card slot
    3. USB Type-C port
    4. BOOT button
      Press and hold while powering on for program burning
    5. RESET button
    6. Optocoupler isolation
    7. Touch panel connector
    8. 5inch display panel connector
    9. RS485 and CAN terminal resistors selection
      close by default
    10. Battery power supply ON/OFF
    11. 3.7V single lithium battery GH1.25 header
    12. Status Indicators
      DONE: Lithium battery charging completed indicator
      CHG: Lithium battery charging indicator
      PWR: Power supply indicator
      (the CHG will blink and DONE will light on when connecting with DC power supply and without lithium battery connected or battery switch is OFF)

    1. 7-36V DC power supply terminal
    2. I2C interface terminal
      VOUT pin output 5V/3.3V (switching by onboard resistor)
    3. CAN interface terminal
    4. RS485 interface terminal
    5. Digital output
      5~36V, open-drain output, output load: 450mA per channel (MAX)
    6. Input signal common terminal
      NC: dry contact passive input
      Connect to power supply positive: digital input low active, for NPN wet contact active input, 5V-36V DC
      Connect to power supply negative: digital input high active, for PNP dry contact active input, 5V-36V DC
    7. Digital input
      5~36V, supports passive / active input (NPN or PNP)
    8. I2C VOUT output selection
      for switching output valtage and I/O level of I2C VOUT, 3.3V by default
    ESP32-S3 5inch Capacitive Touch Display Development Board, onboard components on the back
    1. CS8501
      Lithium battery recharge manager
    2. PCF85063
      RTC chip for providing accurate time control
    3. AP3032KTR-G1
      Display backlight boost converter
    4. CH422G
      IO expansion chip

    1. SP3485
      RS485 transceiver
    2. TJA1051T/3/1J
      CAN transceiver
    3. SGM2212-3.3
      800mA low-noise LDO
    4. Rechargeable Lithium battery


    Support Batch Customization

    Support software and hardware customization
    Including hardware interface, LOGO, label, case and web page, etc.

    ESP32-S3 5inch Capacitive Touch Display Development Board, support batch customization


    Outline dimensions
    ESP32-S3 5inch Capacitive Touch Display Development Board, outline dimensions
