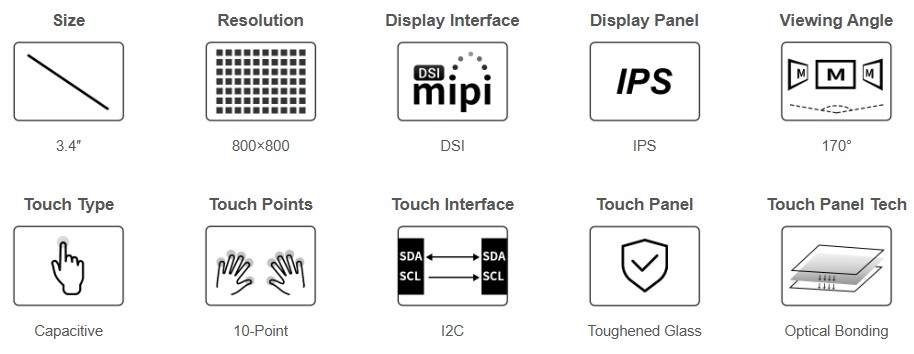

3.4inch DSI Round Touch Display, 800 × 800, IPS, 10-Point Touch

---

Device & System Support

---

Raspberry Pi Supports Raspberry Pi OS, 10-point touch, driver required Supports Pi 5/4B/3B+/3A+, CM3/3+/4* * some CM3/3+/4 base boards require extra adapter cable

---

Working with Raspberry Pi 5

---

---

Working with Raspberry Pi 4B

---

---

Working with Raspberry Pi 3B+

---

*** for reference only, the Raspberry Pi boards are not included.

---

IPS Display Panel

Excellent Display Performance With 170° Wide Viewing Angle

---

---

10-Point Capacitive Touch

---

1. up to 10-point touch, depending on the operating system
2. up to 6H hardness toughened glass panel
3. Optical Bonding, display well and dustproof

---

Adjustable Brightness Via Software

---

---

Interface Introduction

---

---

Application Examples

---

Smart Home	In-vehicle Devices
Consumer Electronics	Industrial Equipments



---

Product show

---

---

Dimensions

---

---

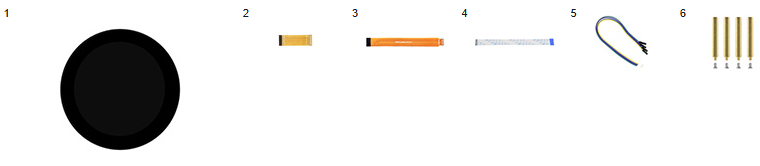

Package Content

---

1. 3.4inch DSI LCD (C) x1
2. FPC 15 PIN cable (~ 50mm) x1
3. DSI-Cable-12cm x1
4. FPC 15PIN 1.0 pitch 160mm (opposite sides) x1
5. PH2.0 4PIN cable (~ 200mm) x1
6. Screws pack x1

---

Wiki: www.waveshare.com/wiki/3.4inch_DSI_LCD_(C)
