An IP68 RS485 Soil Moisture and Temperature Sensor ranges - from 0% to 100% of saturation and -40℃ ~ +80℃. Used in soil applications like water-saving irrigation and greenhouse management.
Cảm biến nhập khẩu chính hãng từ Seeed Technology
Hỗ trợ kỹ thuật trong quá trình sử dụng sản phẩm
Xuất hóa đơn VAT cho cá nhân, đơn vị có nhu cầu
Sản phẩm được bảo hành 12 tháng
- High Performance: high accuracy, reliability, and stability
- Universal Protocol: MODBUS-RTU RS485 and 0~2V Analog Voltage
- Wide-range Power Supply: Can be powered with supply voltage within 3.6V ~ 30V and 3.9V ~ 30V
- Strong Robustness: anti-corrosion, with excellent performance for long-term use
- Safety: designed with reverse voltage protection
Too much water in the soil is not only bad for plants, but it also wastes water and adds an extra burden on our planet. Plants grow best at their preferred temperature ranges. With access to soil moisture and temperature data, we can take action to make sure the right amount of water is irrigated at the appropriate time and that plants are in optimal environments for their growth.
This Soil Moisture & Temperature Sensor comes with hook-up wires. It is designed with industry standards and incorporates two sensors (soil moisture sensor and soil temperature sensor) into one, featuring high precision and high sensitivity. By measuring the dielectric constant of the soil, it can stably measure the soil VWC (volumetric water content) regardless of various soil types. The measurement conforms to current international standards for soil moisture measurement.
It is IP68-rated, very robust and durable, and suitable for long-term monitoring of soil moisture and temperature at scientific experiments, water-saving irrigation, greenhouses, outdoor farming, gardening, precision agriculture, and other professional environmental monitoring scenarios.
Water-saving irrigation,Scientific Experiments,Greenhouse Management,Horticulture and Gardening,Golf turf Management,Smart Agriculture,Other Environmental Monitoring Scenarios
General Parameters | ||
---|---|---|
Product Model | S-Soil MT-02A | |

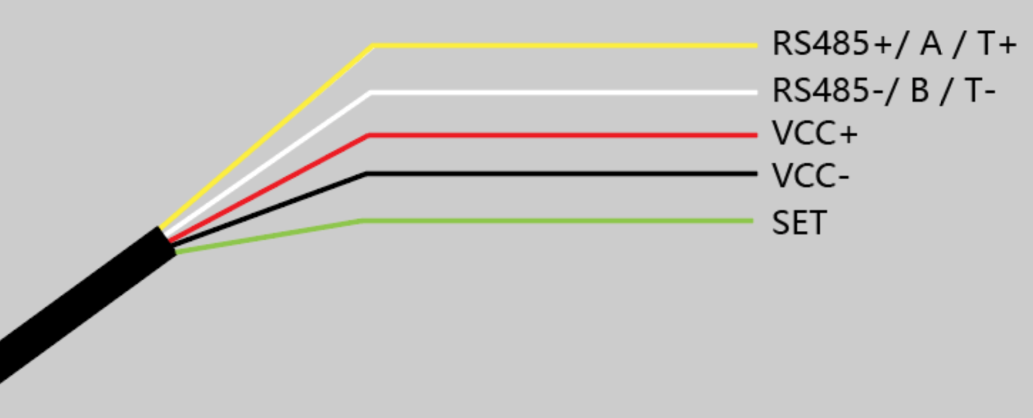

Interface | RS-485 | 0 - 2V voltage |
Protocol | MODBUS-RTU RS485 | - |
Power Supply | 3.6 ~ 30V DC | 3.9 ~ 30V DC |
Current Consumption | 6mA @24V DC | 6mA @24V DC |
Operating Temperature | -40℃ ~ +85℃ | |
Storage Temperature | -40℃ ~ +85℃ | |
Response Time | < 1 second | |

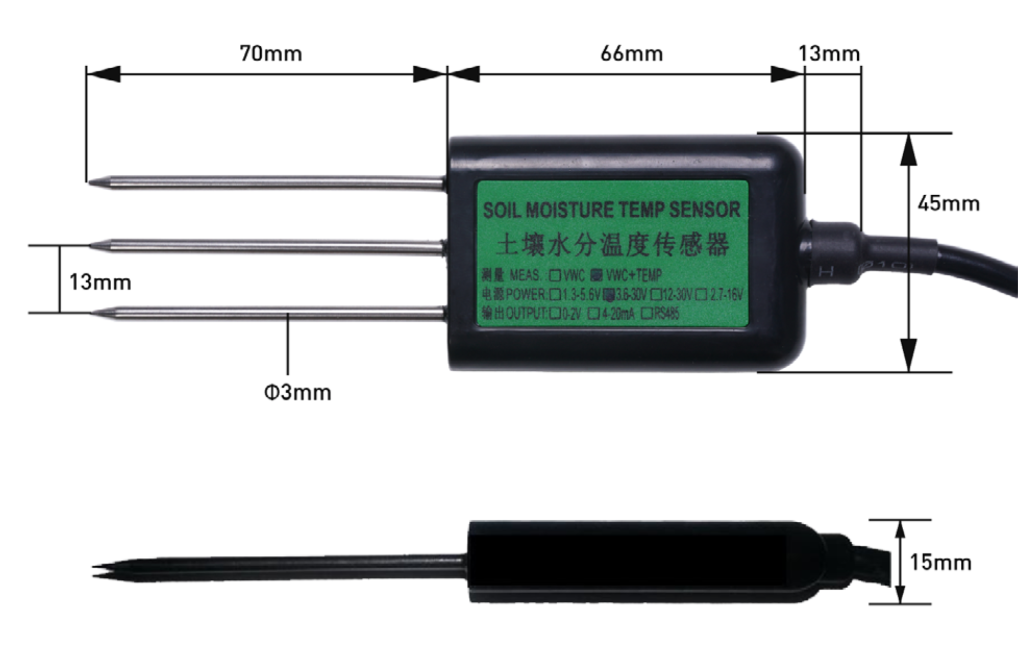

Measuring Area | A cylinder area(with the probe as the center, diameter: 7cm, height: 7cm) | |
Probe Material | Food-grade stainless steel | |
Seal Material | Black flame-retardant epoxy resin | |
IP Rating | IP68 | |
Cable Length | 5 meters | |
Installation | All buried or probe into the media to be measured | |
Device Weight | 270g |
Soil Temperature | |
---|---|
Range | -40℃ ~ +80℃ |
Accuracy | ± 0.5 ℃ |
Resolution | 0.1℃ |
Soil Moisture | |
---|---|
Range | From completely dry to fully saturated (from 0% to 100% of saturation) |
Accuracy | ±3% (0~53%) ±5% (53~100%) |
Resolution | 1% |
