3007 cooling fan for CM5

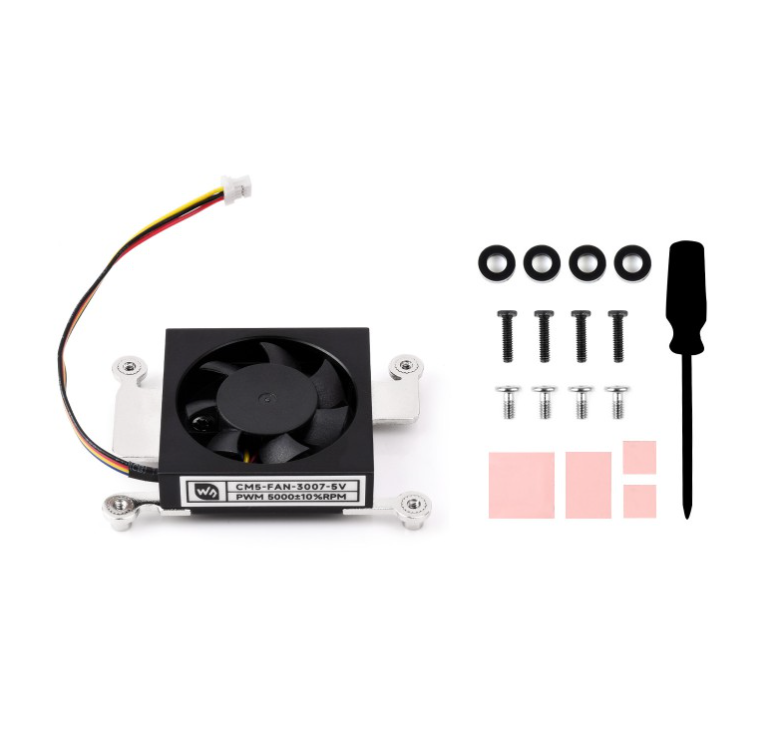

Low Noise, With Thermal Tapes

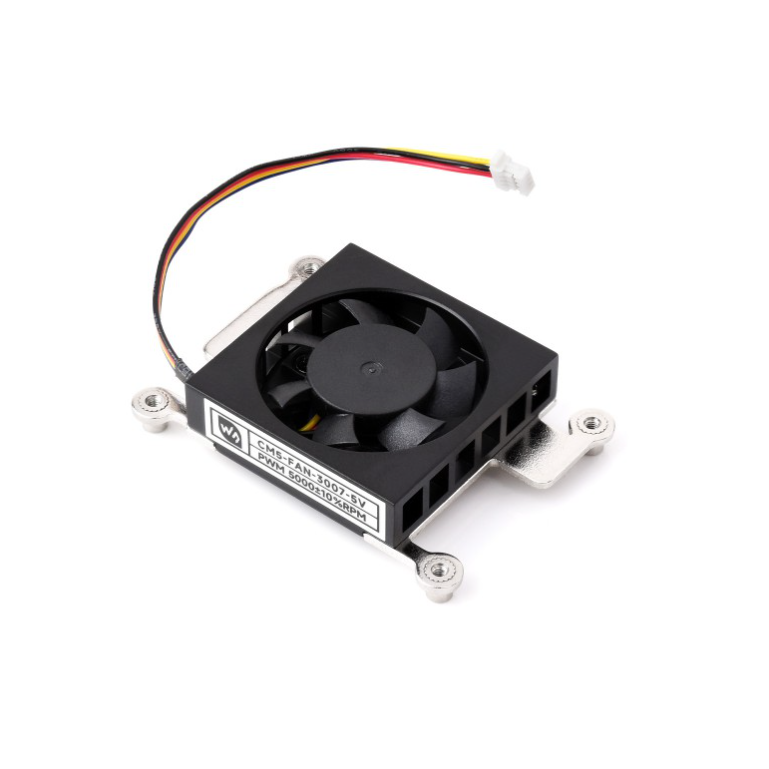

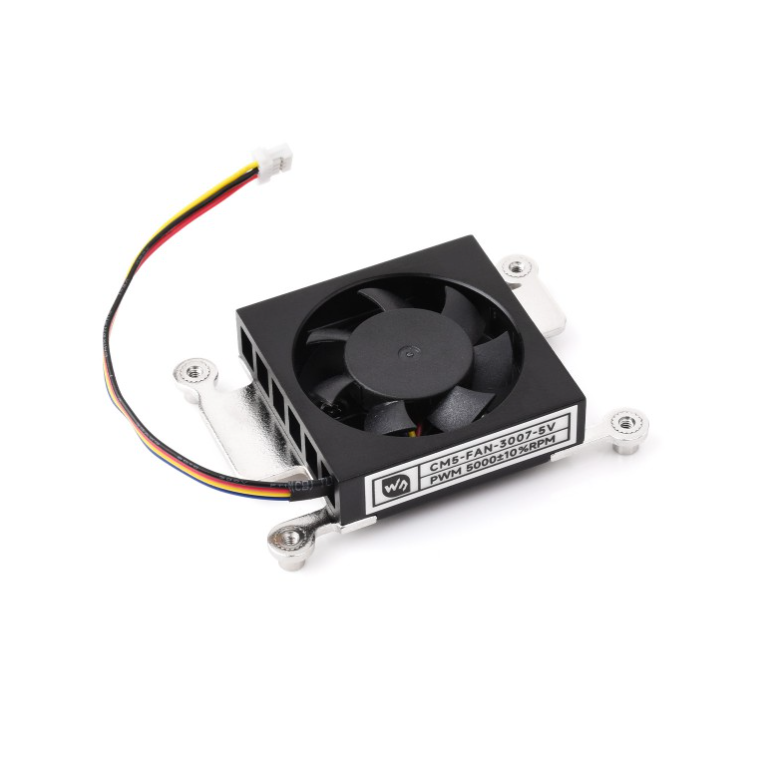

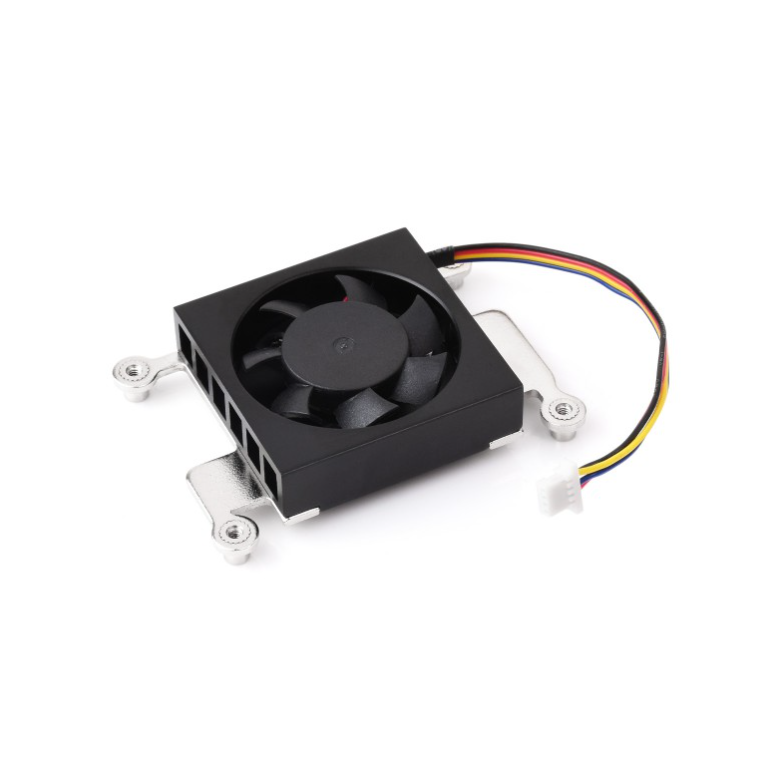

CM5 3007 cooling fan, front view
Specifications
Rated power   1W (5V, 0.2±0.02A)
Rated speed   5000±10%RPM
General   Low-profile, PWM speed adjustment
Interface   4-wire PWM speed-adjustable fan header
Cable length   90±10mm
Dimensions   54×39×13mm


Tailored For Raspberry Pi CM5

Matching With The CM5 On Size And Mounting Holes, Fast Heat Dissipation

CM5 3007 cooling fan, matching with the size and mounting holes

Proper Space For Antenna Section

No Hindrance To The Antenna

CM5 3007 cooling fan, connecting with antenna

Using With Base Board

CM5 3007 cooling fan, using with Compute Module 5 PoE Board

Compute Module 5 PoE Board



Comparing CM5 Cooling Solutions
CM5 3007 cooling fan, comparing CM5 cooling solutions

Outline dimensions
CM5 3007 cooling fan, outline dimensions

How to install

1. Attach thermal tapes onto the CM5

CM5 3007 cooling fan, how to install step 1

2. Fix the screws as the pictures show

CM5 3007 cooling fan, how to install step 2 CM5 3007 cooling fan, how to install step 2
